Plug-in Sensors

TEF 55

APPLICATIONS

Plug-in sensors are ideal for all possible application of temperature measuring. They are available as straight and right-angle design. There are clamp-screws, screws, clips and stop rings available for mounting. Springs with special-fiberglass hose and 400°C heat resistant varnish are standard. Furthermore are PVC-PFA-fiberglass thermo and compensating wires as well as fiberglass with metal braided meshing available.

  • operating temperature: up to 400 °C
  • sensor tip:
    Ø 8 x 40 mm 1.4301 stainless steel
  • isolated or non-isolated
  • as single or double element
  • right-angle exit
  • 60 mm fiberglass hose as Standard anti-kink protection
  • up to 400°C
    operating temperature
  • Ø 8 x 40 mm
    sensor tip
  • 60 mm fiberglass
    hose as anti-kink protection

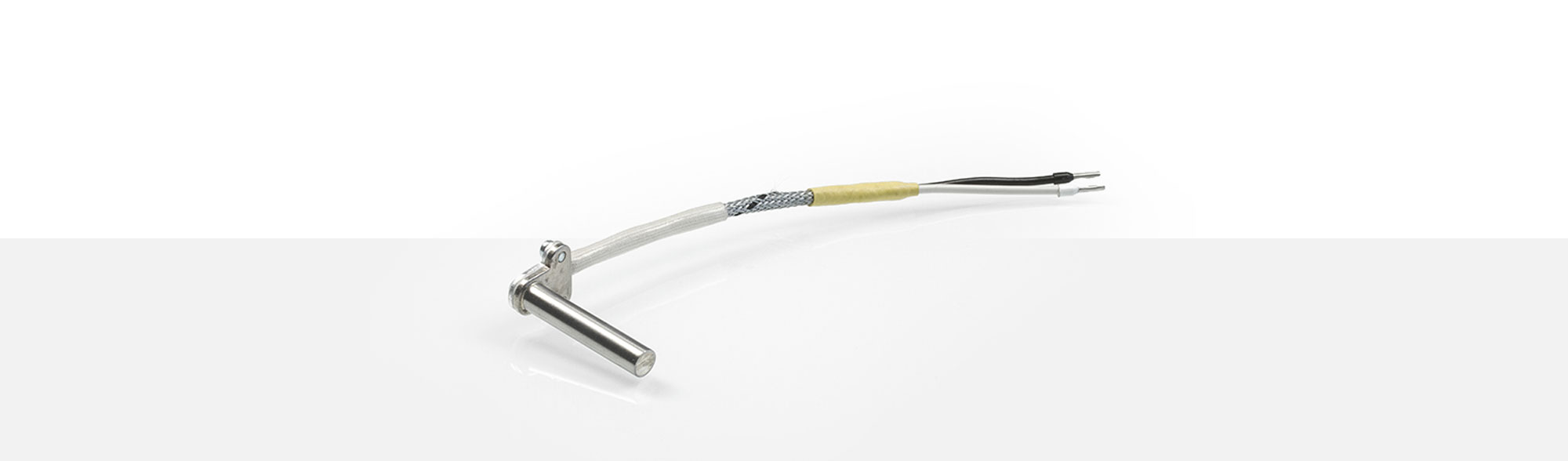

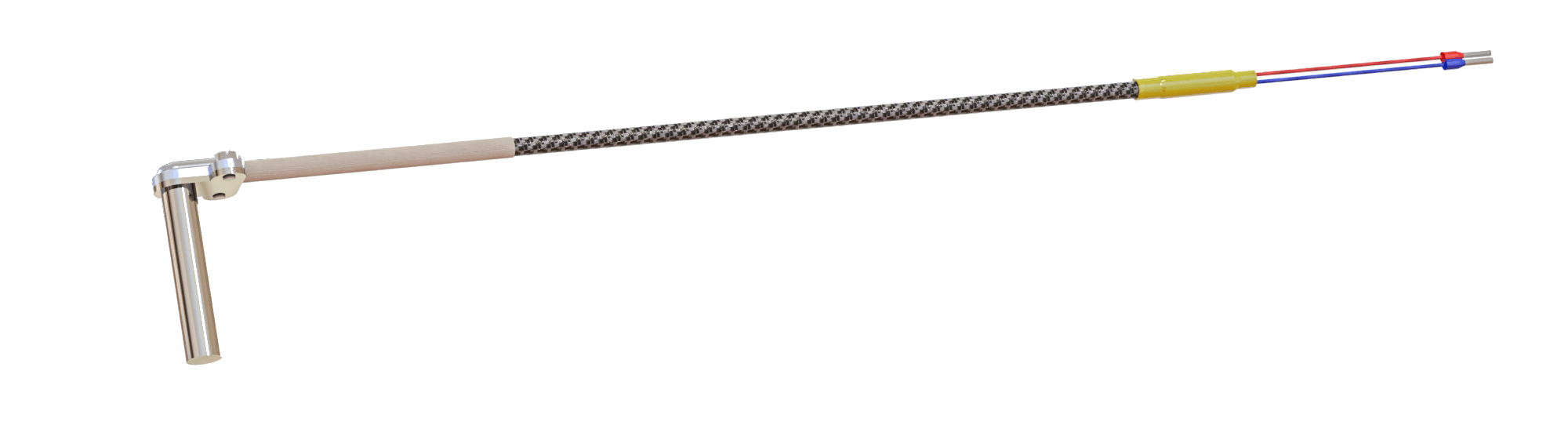

TEF 55 Plug-in Sensor

Please find following our standard thermo and compensating wires for TEF 55 thermocouples listed. Others are available on request.

Fe-CuNi type L

part# cross section temperature range outer diameter
1200456 4x0,22 mm² -50 °C up to +400 °C 3,80 mm max.
1200464 2x1,00 mm² -50 °C up to +400 °C approx. 4,50 mm
1200465 2x1,00 mm² -50 °C up to +400 °C approx. 4,50 mm

Fe-CuNi type J

part# cross section temperature range outer diameter
1229818 4x0,22 mm² -50 °C up to +400 °C approx. 3,60 mm
1201349 2x1,00 mm² -50 °C up to +500 °C 4,60 mm max.

NiCr-Ni type K

part# cross section temperature range outer diameter
1298584 4x0,22 mm² -50 °C up to +400 °C 4,00 mm max.
1200473 2x1,00 mm² -50 °C up to +400 °C approx. 4,50 mm

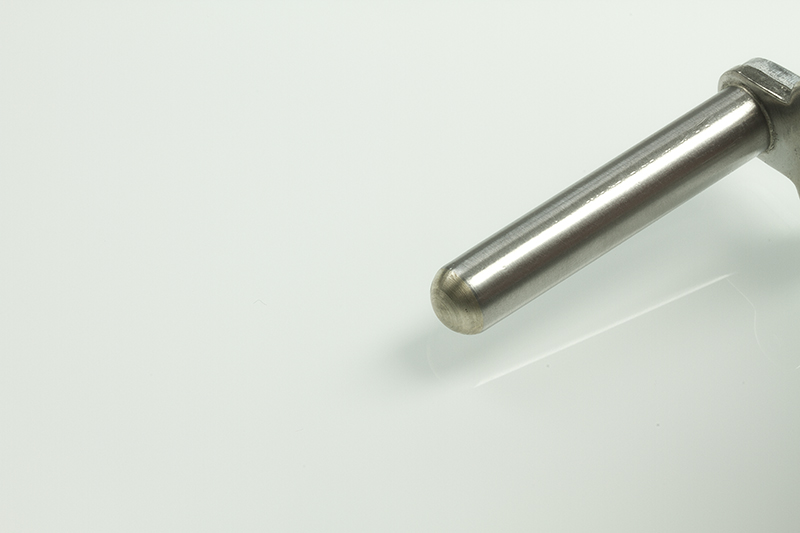

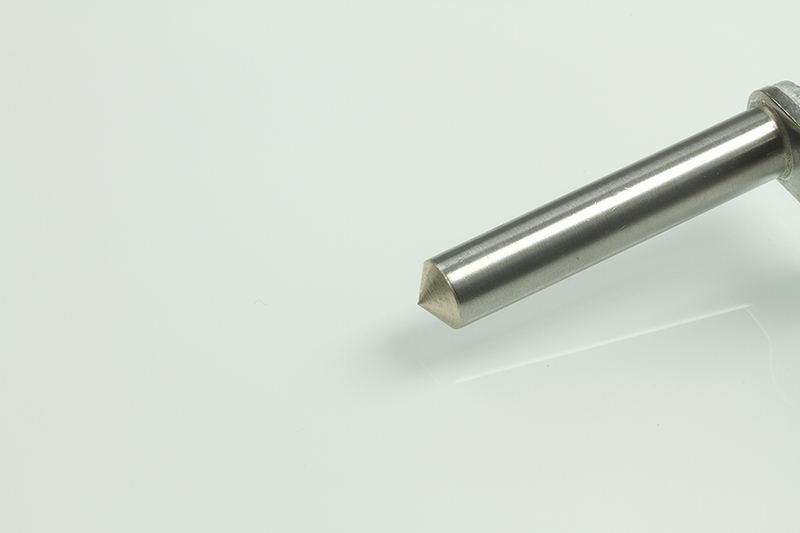

sensor tips

    Thermocouple plug connectors

    J type plug A9.1 part# 1107127
      socket A10.1 part# 1107128
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299





    K type plug A9.2 part# 1209136
      socket A10.2 part# 1209141
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299

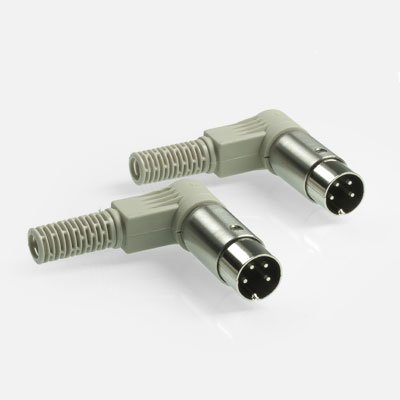

    Angular plugs

    type J 4-pin consisting of:
        plug part# 1201402
        spout part# 1201407
        angle part# 1201408
