Plug-in Sensors

TEF 61

APPLICATION

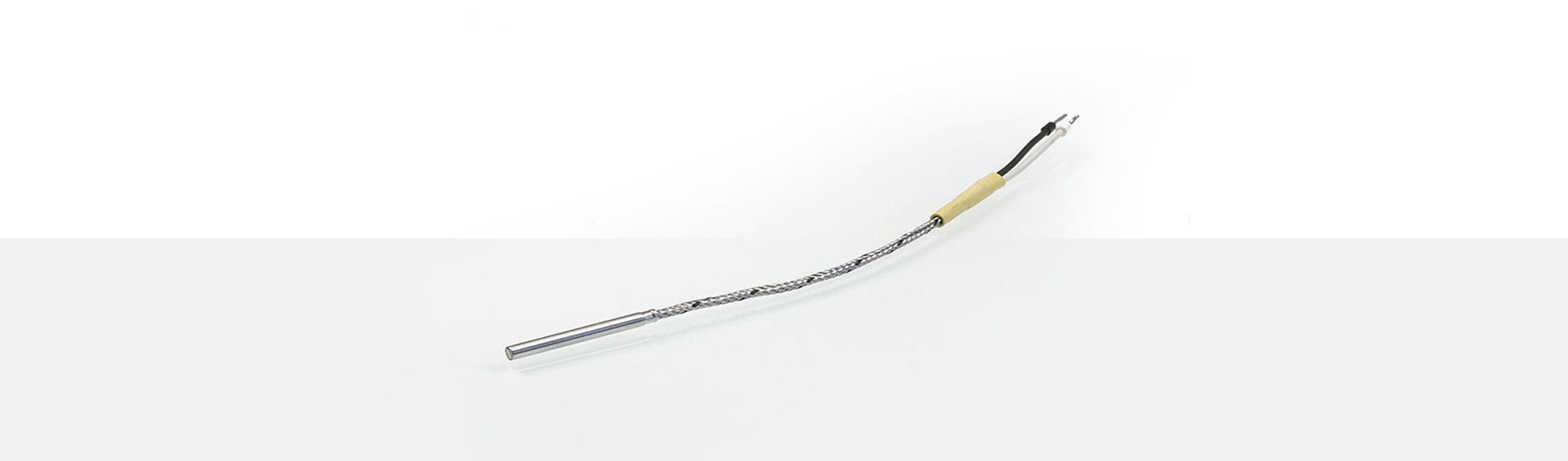

Plug-in sensors are ideal for all possible application of temperature measuring. The TEF 61 is with straight exit, available are as well various protection tube materials, lengths and diameters. The passage from compensating wire to protection tube is strain relieved. Furthermore are PVC-PFA-fiberglass thermo and compensating wires as well as fiberglass with metal braided meshing available

  • operating temperature: up to 400 °C
  • sensor tip:
    Ø 5 x 40 mm 1.4541 stainless steel
  • isolated or non-isolated
  • as single or double element
  • atraight exit
  • without anti-kink protection
  • up to 400°C
    operating temperature
  • Ø 5x40mm
    sensor tip
  • straight
    cable outlet

TEF 16 Screw-in Sensor

Please find following our standard thermo and compensating wires for TEF 61 thermocouples listed. Others are available on request.

Fe-CuNi type L

part# cross section temperature range outer diameter
2006830 2x0,22 mm² -100 °C until +200 °C ca. 3,20 mm
1299314 2x0,22 mm² -50 °C until +600 °C ca. 3,30 mm
1200455 2x0,22 mm² -50 °C until +400 °C ca. 3,40 mm
1338483 2x0,22 mm² -50 °C until +400 °C max. 3,50 mm
1307289 2x0,22 mm² -40 °C until +180 °C 4,00 mm ± 0,10 mm
1345033 2x0,22 mm²
+ 1,00 mm²
earth
-50 °C until +205 °C 2,80 mm ± 0,10 mm
1330509 2x0,22 mm²
+ 1,00 mm²
earth
-50 °C until +300 °C ca. 3,40 mm
1200456 4x0,22 mm² -50 °C until +400 °C max. 3,80 mm
2036320 2x0,25 mm² -65 °C until +200 °C ca. 2,30 mm
1200458 2x0,50 mm² max. until +250 °C 2,0 x 1,2 mm



Fe-CuNi Typ J

partl# cross section temperature range outer diameter
1312115 2x0,095 mm² -50 °C until +400 °C ca. 2,60 x 1,80 mm
2029278 2x0,22 mm² -50 °C until +400 °C ca. 2,10 mm
1334003 2x0,22 mm² -25 °C until +200 °C ca. 2,40 mm ± 0,2 mm
2102578 2x0,22 mm² -40 °C until +200 °C ca. 3,00 mm
2100238 2x0,22 mm² -25 °C until +200 °C 3,00 mm
1346358 2x0,22 mm²
+ 1,00 mm²
earth
-50 °C until +400 °C ca. 3,10 mm
1229818 4x0,22 mm² -50 °C until +400 °C ca. 3,60 mm
2051568 2x0,35 mm² -50 °C until +400 °C ca. 3,40 mm
1222528 2x0,35 mm² -50 °C until +400 °C ca. 3,60 mm
1231037 2x0,50 mm² -50 °C until +400 °C ca. 3,90 mm
2239028 2x0,35 mm² -50 °C until +650 °C ca. 3,40 mm

NiCr-Ni type K

part# cross section temperature range outer diamter
1327235 2x0,095 mm² -50 °C until +400 °C ca. 2,60 x 1,80 mm
1320956 2x0,22 mm² until +180 °C ca. 3,90 mm
1298584 4x0,22 mm² -50 °C until +400 °C max. 4,00 mm
1200472 2x0,50 mm² -40 °C until +400 °C 2,0 x 1,2 mm
1200471 2x0,50 mm² -50 °C until +400 °C ca. 3,50 mm

    Miniature - round plugs with screw connection

    2-pin plug T3200 A# 1200716
      socket T3201 A# 1200721





    2-pin plug T3260 A# 1201415



    4-pin plug T3200 A# 1103624
      socket T3301 A# 1200723

    Round plugs with screw connection

    3-pin plug T3079 A# 1103631
      socket T3080 A# 1200749





    5-pin plug T3260 A# 1103635
      socket T3084 A# 1200750



    3-pin plug T3008 A# 1103627





    5-pin plug T3012 A# 1119173







    J type plug A9.2 A# 1107127
      socket A10.2 A# 1107128
      with cross section 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299

    Miniature - Thermocouple plug connectors

    J type mini plug A12.1 A# 1269361
      mini socket A13.1 A# 1269362
      ferrule 2x0,50 mm² A# 1269363





    J type mini plug A12.2 A# 1209147
      mini socket A13.2 A# 2104331
      ferrule   A# 1269363

    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard scoket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
