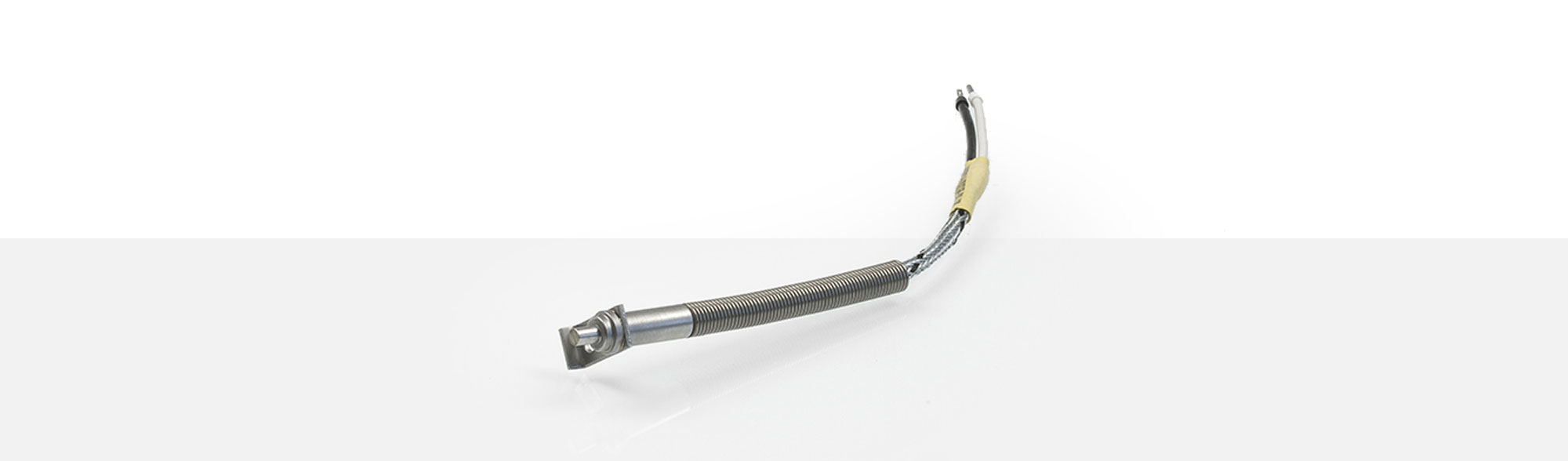

Plug-in Sensors

TEF 14

APPLICATIONS

Plug-in sensors are ideal for all possible application of temperature measuring. They are available as straight and right-angle design. There are clamp-screws, screws, clips and stop rings available for mounting. Springs with special-fiberglass hose and 400°C heat resistant varnish are standard. Furthermore are PVC-PFA-fiberglass thermo and compensating wires as well as fiberglass with metal braided meshing available. The diameters are reduced from Ø 10 x 2 mm down to Ø 8 x 2 mm and Ø 4 x 6 mm underneath the holding stirrup of the sensor tip. The TEF 14 sensor is out of 1.4301 stainless steel. Standard measure surface is plane. A plane measure surface is standard.

  • operating temperature: up to 400 °C
  • sensor tip:
    Ø 8 x 12 mm – 110°
  • isolated or non-isolated
  • as single or double element
  • fastening due to retaining clip
  • Ø 8 x 65 mm anti-kink protection spring
  • up to 400°C
    operating temperature
  • Ø 8 x 12 mm
    sensor tip - 110°
  • Ø 8 x 65 mm
    anti-kink protection spring

TEF 14 Plug-in Sensor

Please find following our standard thermo and compensating wires for TEF 14 thermocouples listed. Others are available on request.

Fe-CuNi type L

part# cross section temperature range outer diameter
1307289 2x0,22 mm² -40 °C up to +180 °C 4,00 mm ± 0,10 mm
1200456 4x0,22 mm² -50 °C up to +400 °C 3,80 mm max.
1200464 2x1,00 mm² -50 °C up to +400 °C approx. 4,50 mm
1200465 2x1,00 mm² -50 °C up to +400 °C approx. 4,50 mm
1256523 2x1,00 mm² -50°C up to +500 °C approx. 4,50 x 2,60 mm
2239027 2x1,00 mm² -90°C up to +650 °C approx. 5,00 x 3,20 mm

Fe-CuNi type J

part# cross section temperature range outer diameter
1229818 4x0,22 mm² -50 °C up to +400 °C approx. 3,60 mm
1201349 2x1,00 mm² -50 °C up to +500 °C 4,60 mm max.

NiCr-Ni type K

part# cross section temperature range outer diameter
1298584 4x0,22 mm² -50 °C up to +400 °C 4,00 mm max.
1200473 2x1,00 mm² -50 °C up to +400 °C approx. 4,50 mm



    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    2-pin plug T3260 part# 1201415



    4-pin plug T3200 part# 1103624
      socket T3301 part# 1200723

    Round plugs with screw connection

    3-pin plug T3079 part# 1103631
      socket T3080 part# 1200749





    5-pin plug T3260 part# 1103635
      socket T3084 part# 1200750



    Round plugs with bayonet connection

    3-pin plug T3008 part# 1103627





    5-pin plug T3012 part# 1119173



    Thermocouple plug connectors

    J type plug A9.1 part# 1107127
      socket A10.1 part# 1107128
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299





    K type plug A9.2 part# 1209136
      socket A10.2 part# 1209141
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299

    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
