Plug-in Sensors

TEF 68

APPLICATION

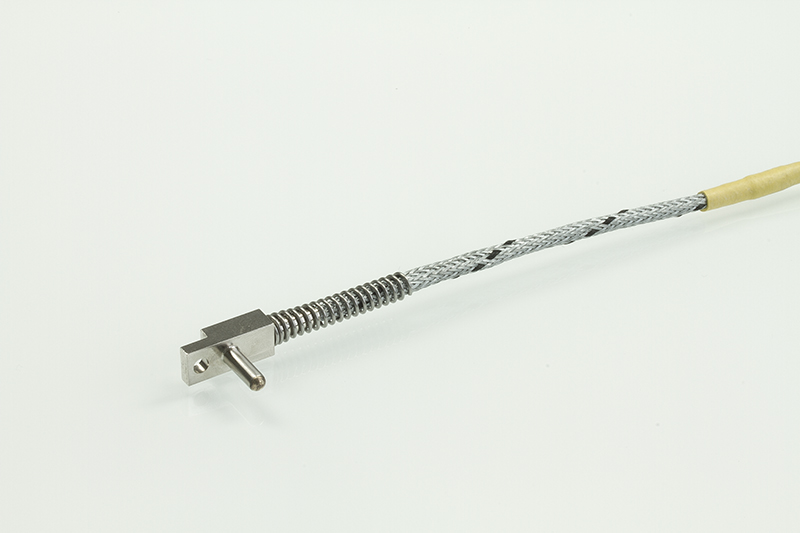

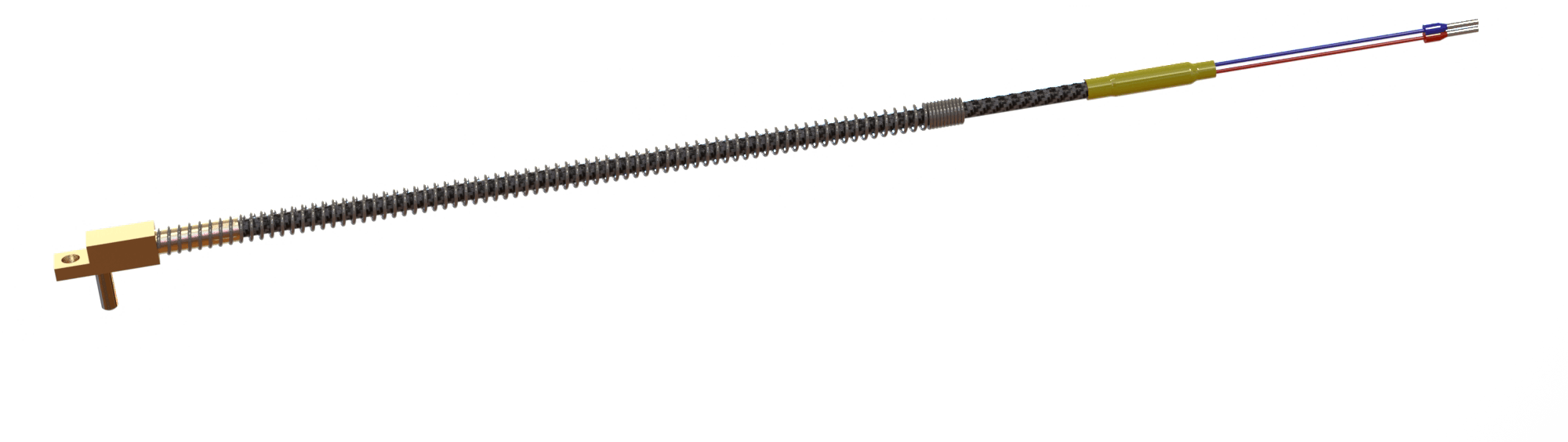

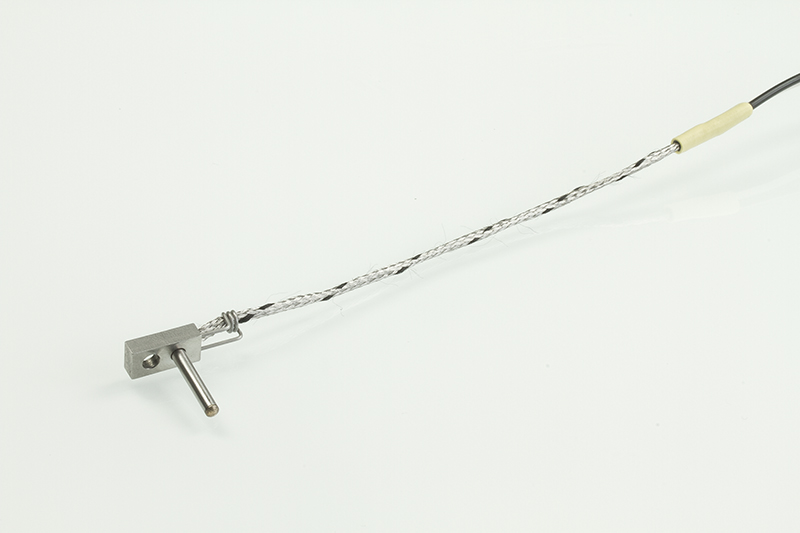

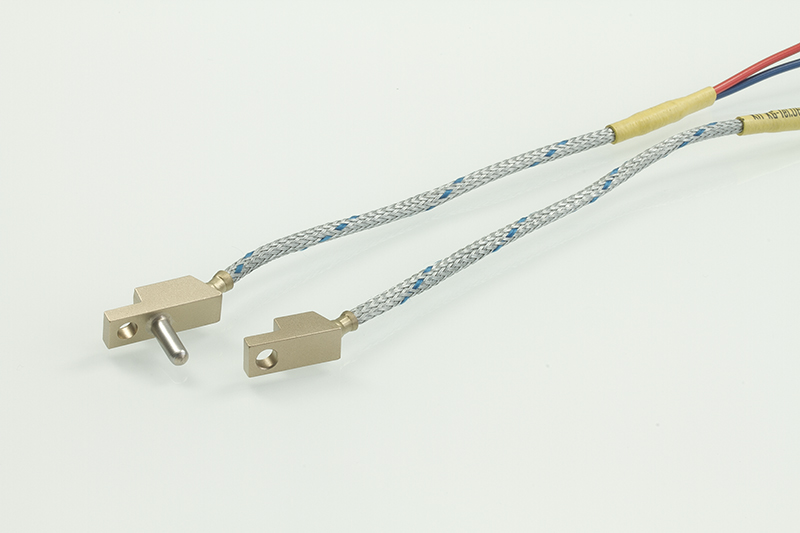

Plug-in sensors are ideal for all possible application of temperature measuring. TEF 68 is the preferred thermocouple at hot runner systems. They are available with plane and right-angle exit. If holes are not possible they can be as well manufactured as surface sensor. They will be fastened with a M3 or M4 screw. The passage from compensating wire to protection tube is strain relieved. Furthermore are PVC-PFA-fiberglass thermo and compensating wires as well as fiberglass with metal braided meshing available.

  • operating temperature: up to 400 °C
  • sensor tip:
    Ø 4 x 12 mm – ball
  • isolated or non-isolated
  • as single or double element

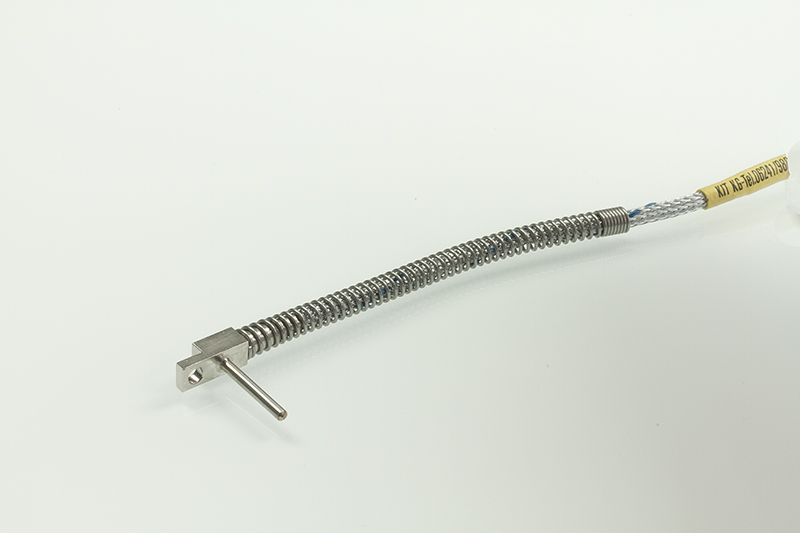

  • Ø 8 x 200 anti-kink protection spring
  • up to 400°C
    operating temperature
  • Ø 4x12mm
    sensor tip - round
  • Ø 8 x 200 mm
    anti-kink protection spring

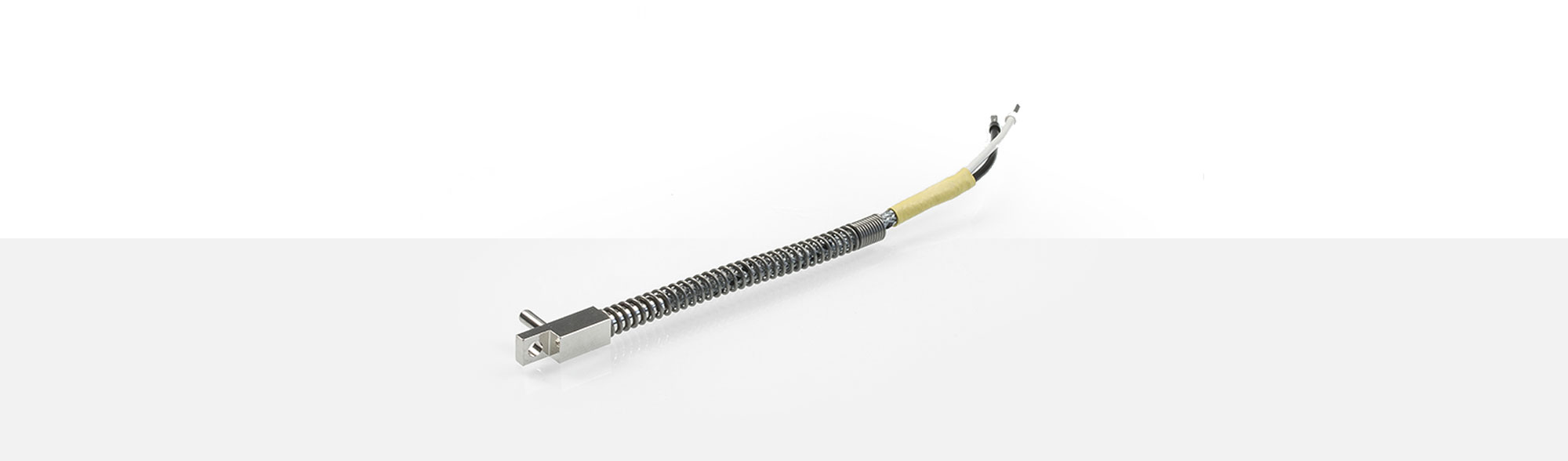

TEF 68 Plug-in Sensor

Please find following our standard thermo and compensating wires for TEF 68 thermocouples listed. Others are available on request.

Fe-CuNi Typ L

part# cross section temperature range outer diameter
1200455 2x0.22 mm² -50 °C until +400 °C ca. 3.40 mm
1338483 2x0.22 mm² -50 °C until +400 °C 3.50 mm max.
1307289 2x0.22 mm² -40 °C until +180 °C 4.00 mm ± 0.10 mm
1200456 4x0.22 mm² -50 °C until +400 °C 3.80 mm max.
1200464 2x1.00 mm² -50 °C until +400 °C ca. 4.50 mm
1200465 2x1.00 mm² -50 °C until +400 °C ca. 4.50 mm
1256523 2x1.00 mm² -50°C until +500 °C ca. 4.50 x 2.60 mm

Fe-CuNi Typ J

part# cross section temperature range outer diameter
1312115 2x0.095 mm² -50 °C until +400 °C ca. 2.60 x 1.80 mm
2029278 2x0.22 mm² -50 °C until +400 °C ca. 2.10 mm
1334003 2x0.22 mm² -25 °C until +200 °C ca. 2.40 mm ± 0.2 mm
1229818 4x0.22 mm² -50 °C until +400 °C ca. 3.60 mm
1222528 2x0.35 mm² -50 °C until +400 °C ca. 3.60 mm
1231037 2x0.50 mm² -50 °C until +400 °C ca. 3.90 mm
1201349 2x1.00 mm² -50 °C until +400 °C 4.60 mm max.

NiCr-Ni type K

part# cross section temperature range outer diameter
1327235 2x0.095 mm² -50 °C until +400 °C ca. 2.60 x 1.80 mm
1298584 4x0.22 mm² -50 °C until +400 °C 4.00 mm max.
1200471 2x0.50 mm² -50 °C until +400 °C ca. 3.50 mm
1200473 2x1.00 mm² -50 °C until +400 °C ca. 4.50 mm

    Miniature - round plugs with screw connection

    2-pin plug T3200 A# 1200716
      socket T3201 A# 1200721





    2-pin plug T3260 A# 1201415



    4-pin plug T3200 A# 1103624
      socket T3301 A# 1200723

    Round plugs with screw connection

    3-pin plug T3079 A# 1103631
      socket T3080 A# 1200749





    5-pin plug T3260 A# 1103635
      socket T3084 A# 1200750



    3-pin plug T3008 A# 1103627





    5-pin plug T3012 A# 1119173







    J type plug A9.2 A# 1107127
      socket A10.2 A# 1107128
      with cross section 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299

    Miniature - Thermocouple plug connectors

    J type mini plug A12.1 A# 1269361
      mini socket A13.1 A# 1269362
      ferrule 2x0,50 mm² A# 1269363





    J type mini plug A12.2 A# 1209147
      mini socket A13.2 A# 2104331
      ferrule   A# 1269363

    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard scoket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
