Melt Resistance Probes

MWF 107

APPLICATION

Melt probes are designed for the usage at extrusion sides. Sword shaped, conical and plane measure tips allow a good temperature recording. Accordingly to the thread melt probes can be screwed at standard holes of the extruder.  It is to select between single and double thermocouple and isolated or not isolated design. The thermocouple plug connector is solid connected with the turned part. The sensor parts are out of own production and manufactured on ultra-modern CNC-machinery.

  • Pt100 gauge slide as per DIN EN 60751 – class B
  • operating temperature: up to 600 °C
  • isolated
  • standard two-wire circuit
  • ½” UNF- 20 screw-in thread
  • plane measure surface
  • with thermocouple plug connector
  • plane
    messure surface
  • 1/2"-UNF-20
    screw-in thread
  • 2 wire circuit
    standard - opt. 3 wire

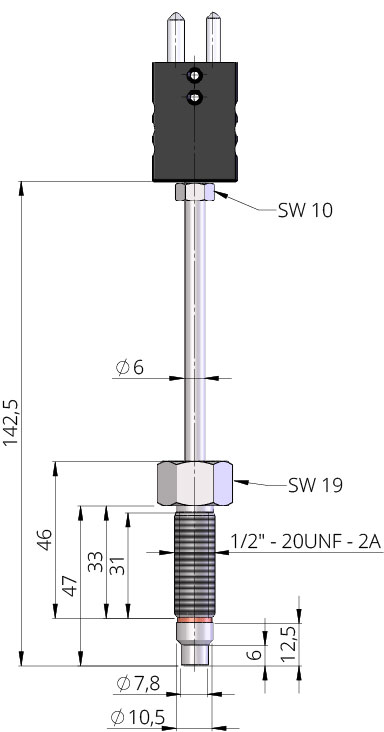

MWF 107 Melt Probe

Please find following our standard leads for MWF 107 Resistance sensors listed. Others are available on request.

part# cross section temperature range outer diameter
1201354 2x0.35 mm²
Cu-nickel plated
-50 °C until +260 °C 4.6 x 2.8 mm
1340642 3x0.25 mm²
Cu-tinned
-60 °C until+260 °C 3.40 ±0.15 mm
1266897 4x0.18 mm²
Cu-nickel plated
-50 °C until +260 °C 3.90 ±0.15 mm
1307789 4x0.22 mm²
Cu-tinned
-50 °C until +350 °C 4.00 ±0.15 mm

Resistance Sensor plug connectors

Melt probes are designed for the usage at extrusion sides. Sword shaped, conical and plane measure tips allow a good temperature recording. Accordingly to the thread melt probes can be screwed at standard holes of the extruder. It is to select between single and double thermocouple and isolated or not isolated design. The thermocouple plug is solid connected with the turned part. The sensor parts are out of own production and manufactured on ultra-modern CNC-machinery.



2-pin plug part# 2211006
  socket part# 2211010
  ferrule part# 2211002





2-pin plug part# 2211007
  socket part# 2211012
  ferulle part# 2211019
