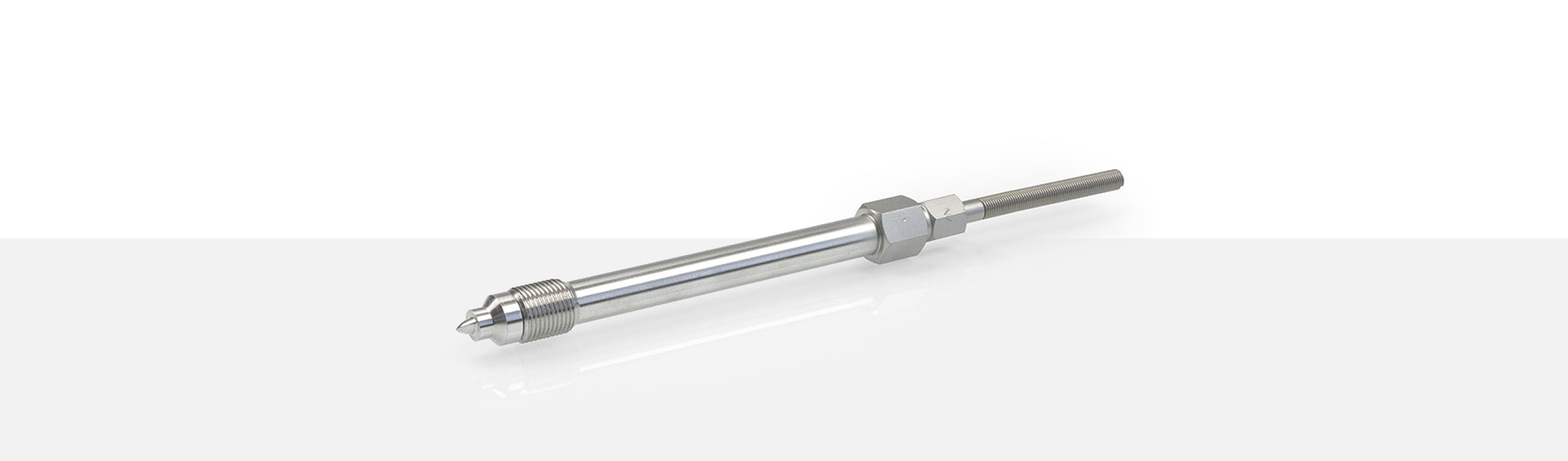

Melt Resistance Probes

MWF 110

APPLICATION

Melt probes are designed for the usage at extrusion sides. Sword shaped, conical and plane measure tips allow a good temperature recording. Accordingly to the thread melt probes can be screwed at standard holes of the extruder. It is to select between single and double thermocouple and isolated or not isolated design. The MWF 110 has a straight cable exit. The passage between sensor and compensating wire is strain relieved and with Ø 8 x 65 mm anti-kink prote

  • Pt100 gauge slide as per
    DIN EN 60751 – class B
  • operating temperature: up to 600 °C
  • isolated
  • standard two-wire circuit
  • M18x1.5 screw-in thread
  • 6 mm conical standard sword fitting length
  • 6mm
    conical standard sword fitting length
  • M18x1.5mm
    screw-in thread
  • 2 wire circuit
    standard or 3 wire circuit optional

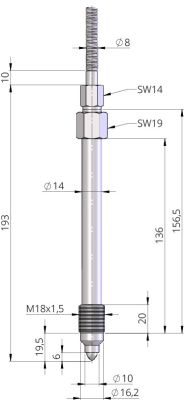

MWF 110 Melt Probe

Please find following our standard leads for MWF 110 Resistance sensors listed. Others are available on request.

part# cross section temperature range outer diameter
1201354 2x0.35 mm²
Cu-nickel plated
-50 °C until +260 °C 4.6 x 2.8 mm
1340642 3x0.25 mm²
Cu-tinned
-60 °C until +260 °C 3.40 ±0.15 mm
1266897 4x0.18 mm²
Cu-nickel plated
-50 °C until +260 °C 3.90 ±0.15 mm
1307789 4x0.22 mm²
Cu-tinned
-50 °C until +350 °C 4.00 ±0.15 mm
