Surface Mounting/Tool Sensors

TEF 10

APPLICATIONS

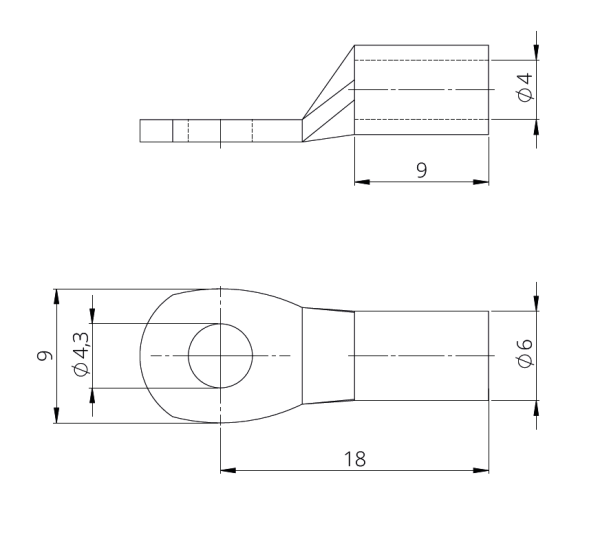

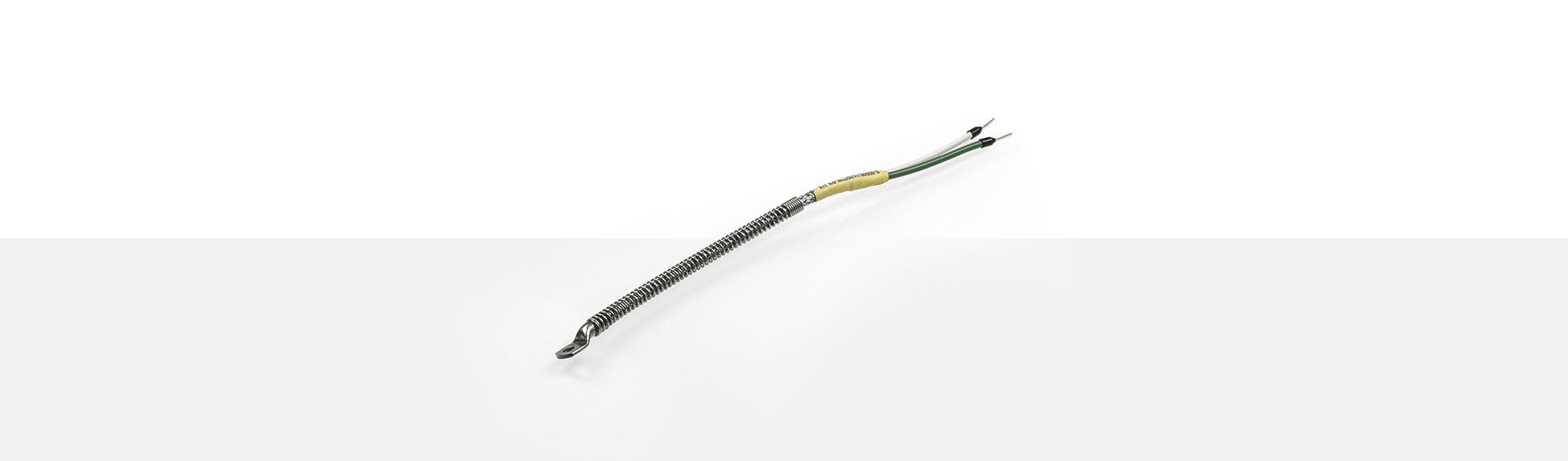

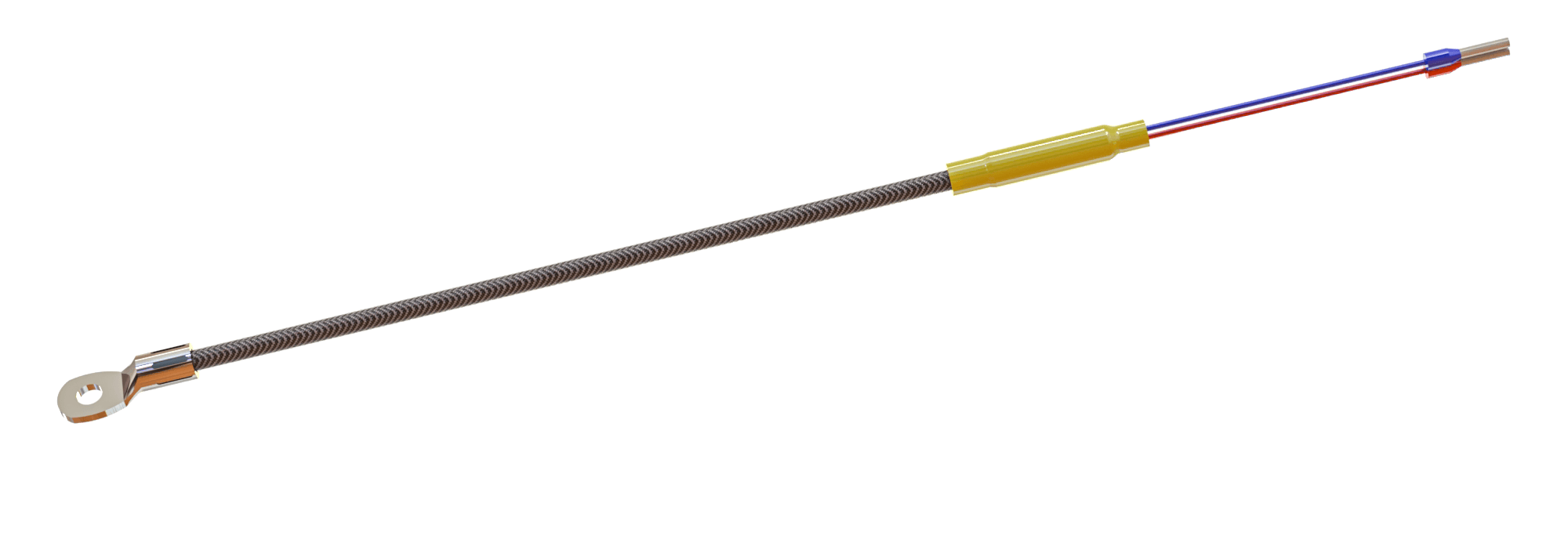

The thermocouple will be soldered into the shaft of the stainless steel eyelet with a nominal cross section of 4 – 6 mm². The stainless steel tube eyelet is acid and rust resistant. The passage from the eyelet to the compensating wire is conical strain relieved. There are springs, Teflon shrink hose or heat resistant Supratherm available as anti-kink protection. The eyelet thermocouples will be fastened with M4 screws. There are as well nickel-tube eyelets available for higher temperatures.

  • operating temperature: up to 400 °C
  • as single and double element
  • stainless steel tube eyelet
  • ring shape
  • acid and rust resistant



  • up to 400°C
    operating temperature
  • M4
    nickel-tube-eyelet

TEF 10 Surface Mounting/Tool Sensors

Please find following our standard thermo and compensating wires for TEF 10 thermocouples listed. Others are available on request.

Fe-CuNi type L

part# cross section temperature range outer diameter
2006830 2x0.22 mm² -100 °C up to +200 °C approx. 3.20 mm
1299314 2x0.22 mm² -50 °C up to +600 °C approx. 3.30 mm
1200455 2x0.22 mm² -50 °C up to +400 °C approx. 3.40 mm
1338483 2x0.22 mm² -50 °C up to +400 °C 3.50 mm max.
1307289 2x0.22 mm² -40 °C up to +180 °C 4.00 mm ± 0.10 mm
1345033 2x0.22 mm²
+ 1.00 mm²
earth wire
-50 °C up to +205 °C 2.80 mm ± 0.10 mm
1330509 2x0.22 mm²
+ 1.00 mm²
earth wire
-50 °C up to +300 °C approx. 3.40 mm
1200456 4x0.22 mm² -50 °C up to +400 °C 3.80 mm max.
2036320 2x0.25 mm² -65 °C up to +200 °C approx. 2.30 mm
1200458 2x0.50 mm² up to +250 °C max. 2.0 x 1.2 mm
1200461 2x0.75 mm² -55 °C up to +180 °C 4.0 x 2.3 mm



Fe-CuNi type J

part# cross section temperature range outer diameter
2029278 2x0,22 mm² -50 °C up to +400 °C approx. 2,10 mm
2102578 2x0,22 mm² -40 °C up to +200 °C approx. 3,00 mm
1346358 2x0,22 mm²
+ 1,00 mm²
earth wire
-50 °C up to +400 °C approx. 3,10 mm
1229818 4x0,22 mm² -50 °C up to +400 °C approx. 3,60 mm
2051568 2x0,35 mm² -50 °C up to +400 °C approx. 3,40 mm
1222528 2x0,35 mm² -50 °C up to +400 °C approx. 3,60 mm
1231037 2x0,50 mm² -50 °C up to +400 °C approx. 3,90 mm
2239028 2x0,35 mm² -50 °C up to +650 °C approx. 3,40 mm



NiCr-Ni type K

part# cross section temperature range outer diameter
1320956 2x0,22 mm² +180 °C approx. 3,90 mm
1298584 4x0,22 mm² -50 °C up to +400 °C 4,00 mm max.
1200471 2x0,50 mm² -50 °C up to +400 °C approx. 3,50 mm



    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    3-pin plug T3260 part# 1201415
      socket T3261 part# 1200722



    4-pin plug T3300 part# 1103624
      socket T3301 part# 1200723

    Round plugs with screw connection

    3-pin plug T3079 part# 1103631
      socket T3080 part# 1200749





    5-pin plug T3083 part# 1103635
      socket T3084 part# 1200750



    Round plugs with bayonet connection

    3-pin plug T3008 part# 1103627





    5-pin plug T3012 part# 1119173



    Thermocouple plug connectors

    J type plug A9.1 part# 1107127
      socket A10.1 part# 1107128
      with cross section 2x0,50 mm² part# 1349300





    K type plug A9.2 part# 1209136
      socket A10.2 part# 1134620
      with cross section 2x0,50 mm² part# 1349300

    Duplex - Thermocouple plug connectors

    J type duplex plug   part# 1209139
      duplex socket   part# 1209144
      strain relief 2x1,00 mm² part# 1349298
      with cross section 2x0,50 mm² part# 1349300





    K type duplex plug   part# 2105264
      duplex socket   part# 1302891
      strain relief 2x1,00 mm² part# 1349298
      with cross section 2x0,50 mm² part# 1349300

    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
