Surface Mounting/Tool Sensors

TEF 9

APPLICATION

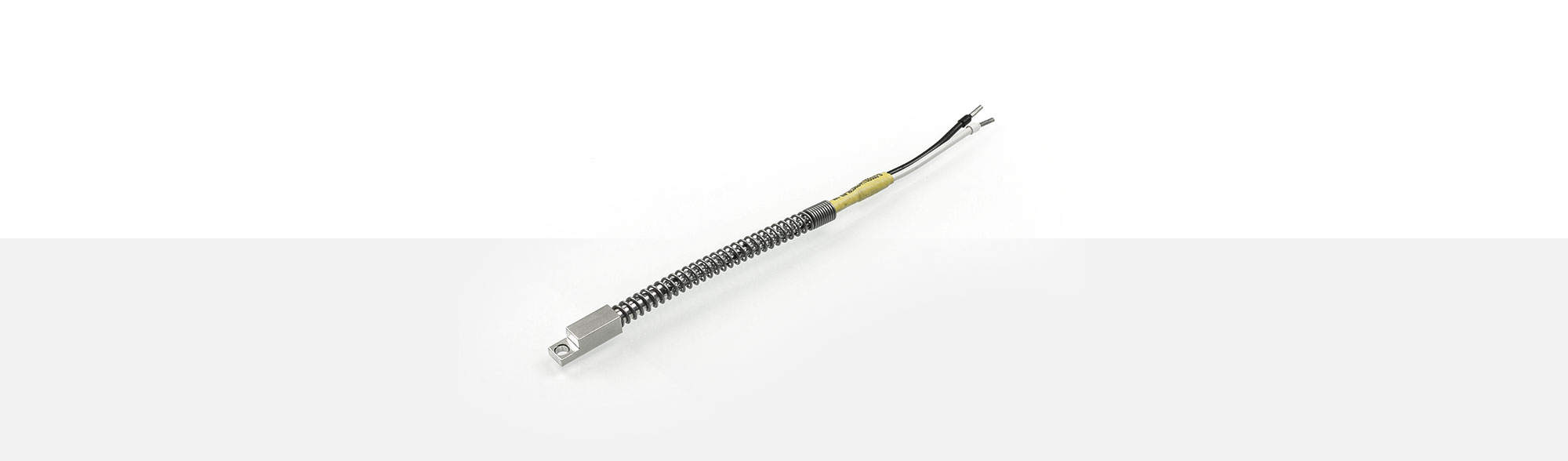

Surface mounting/tool sensors are for measuring round or plane surfaces. TEF 9 dimensions are 8 □ x 25 mm with Ø 4.5 mm hole for M4 fastening screw. The Ø 8 x 200 mm crack protection spring protects the thermo wire against damage.

  • operating temperature: up to 400 °C
  • isolated or non-isolated
  • as single or double element
  • Ø 8 x 200 mm crack protection spring



  • up to 400°C
    operating temperature
  • 8x25 mm
    sensor tip
  • Ø 8x200 mm
    anti-kink protection spring

Please find following our standard thermo and compensating wires for TEF 9 thermocouples listed. Others are available on request.

Fe-CuNi type L

part# cross section temperature range outer diameter
2006830 2x0,22 mm² -100 °C bis +200 °C ca. 3,20 mm
1299314 2x0,22 mm² -50 °C bis +600 °C ca. 3,30 mm
1200455 2x0,22 mm² -50 °C bis +400 °C ca. 3,40 mm
1338483 2x0,22 mm² -50 °C bis +400 °C max. 3,50 mm
1307289 2x0,22 mm² -40 °C bis +180 °C 4,00 mm ± 0,10 mm
1345033

2x0,22 mm²
+ 1,00 mm²
earth

-50 °C bis +205 °C 2,80 mm ± 0,10 mm
1330509

2x0,22 mm²
+ 1,00 mm²
earth

-50 °C bis +300 °C ca. 3,40 mm
1200456 4x0,22 mm² -50 °C bis +400 °C max. 3,80 mm
1200464 2x1,00 mm² -50 °C bis +400 °C ca. 4,50 mm
1200465 2x1,00 mm² -50 °C bis +400 °C ca. 4,50 mm
1256523 2x1,00 mm² -50 °C bis +500 °C ca. 4,50 x 2,60 mm
2239027 2x1,00 mm² -90 °C bis +650 °C ca. 5,00 x 3,20 mm



Fe-CuNi Typ J

part# cross section temperature range outer diameter
1312115 2x0,095 mm² -50 °C bis +400 °C ca. 2,60 x 1,80 mm
2029278 2x0,22 mm² -50 °C bis +400 °C ca. 2,10 mm
1334003 2x0,22 mm² -25 °C bis +200 °C ca. 2,40 mm ± 0,2 mm
2102578 2x0,22 mm² -40 °C bis +200 °C ca. 3,00 mm
2100238 2x0,22 mm² -25 °C bis +200 °C 3,00 mm
1346358 2x0,22 mm²
+ 1,00 mm²
earth
-50 °C bis +400 °C ca. 3,10 mm
1229818 4x0,22 mm² -50 °C bis +400 °C ca. 3,60 mm
2051568 2x0,35 mm² -50 °C bis +400 °C ca. 3,40 mm
1222528 2x0,35 mm² -50 °C bis +400 °C ca. 3,60 mm
1231037 2x0,50 mm² -50 °C bis +400 °C ca. 3,90 mm
1201349 2x1,00 mm² -50 °C bis +400 °C max. 4,60 mm
2239028 2x0,35 mm² -50 °C bis +650 °C max. 3,40 mm



NiCr-Ni type K

part# cross section temperature range outer diameter
1327235 2x0,095 mm² -50 °C bis +400 °C ca. 2,60 x 1,80 mm
1320956 2x0,22 mm² bis +180 °C ca. 3,90 mm
1298584 4x0,22 mm² -50 °C bis +400 °C max. 4,00 mm
1200472 2x0,50 mm² -40 °C bis +400 °C 2,0 x 1,2 mm
1200471 2x0,50 mm² -50 °C bis +400 °C ca. 3,50 mm
1200473 2x1,00 mm² -50 °C bis +400 °C ca. 4,50 mm

    Miniature - round plugs with screw connection

    2-pin plug T3200 A# 1200716
      socket T3201 A# 1200721





    2-pin plug T3260 A# 1201415



    4-pin plug T3200 A# 1103624
      socket T3301 A# 1200723

    Round plugs with screw connection

    3-pin plug T3079 A# 1103631
      socket T3080 A# 1200749





    5-pin plug T3260 A# 1103635
      socket T3084 A# 1200750



    3-pin plug T3008 A# 1103627





    5-pin plug T3012 A# 1119173



    Thermocouple plug connectors

    J type plug A9.1 A# 1107127
      socket A10.1 A# 1107128
      with cross section 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299





    J type plug A9.2 A# 1107127
      socket A10.2 A# 1107128
      with cross section 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299

    Miniature - Thermocouple plug connectors

    J type mini plug A12.1 A# 1269361
      mini socket A13.1 A# 1269362
      ferrule 2x0,50 mm² A# 1269363





    J type mini plug A12.2 A# 1209147
      mini socket A13.2 A# 2104331
      ferrule   A# 1269363

    Duplex - Thermocouple plug connectors

    J type duplex plug   A# 1209139
      duplex socket   A# 1209144
      strain relief 2x1,00 mm² A# 1349298
      with cross section 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299





    J type duplex plug   A# 2105264
      duplex socket   A# 1302891
      strain relief 2x1,00 mm² A# 1349298
      with cross section 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299

    Miniature Duplex - Thermocouple plug connectors

    J type duplex mini plug A# 2105183
      duplex mini socket A# 1209140
      ferrule A# 1269363





    J type duplex mini plug A# 2105186
      duplex mini scoket A# 2105188
      ferrule A# 1269363

    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard scoket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
