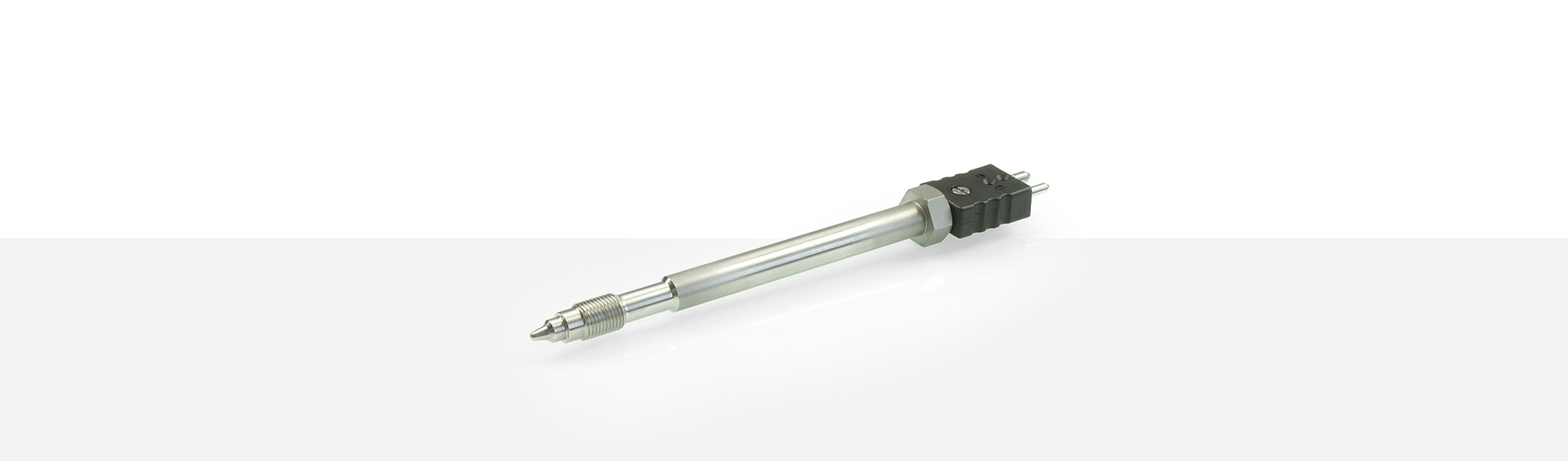

Melt Probe

MTF 109

APPLICATIONS

Melt probes are designed for the usage at extrusion sides. Sword shaped, conical and plane measure tips allow a good temperature recording. Accordingly to the thread melt probes can be screwed at standard holes of the extruder. With the conical measure tip of the MTF 109 there is no adjustment to the flow direction required.  Standard length here is 7 mm, other lengths are available. The thermocouple plug connector is solid connected to the MTF 109. The sensor parts are out of own production and manufactured on ultra-modern CNC-machinery.

  • operating temperature:
    up to 600 °C at measure tip
  • isolated or non-isolated
  • single or double thermocouple
  • ½” 20 UNF – 2A screw-in thread
  • 7 mm conical standard fitting length
  • with thermocouple plug connector
  • up to 600°C
    operating temperature
  • 1/2" - 20 UNF - 2A
    screw-in thread
  • 7 mm - conical
    immersion depth

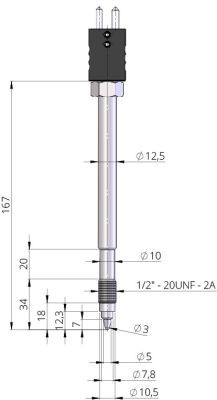

MTF 109 Melt Probe

    Thermocouple plug connectors

    J type plug A9.1 part# 1107127
      socket A10.1 part# 1107128
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299





    K type plug A9.2 part# 1209136
      socket A10.2 part# 1209141
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299

    Duplex - Thermocouple plug connectors

    J type duplex plug   part# 1209139
      duplex socket   part# 1209144
      strain relief 2x1,00 mm² part# 1349298
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299





    K type duplex plug   part# 2105264
      duplex socket   part# 1302891
      strain relief 2x1,00 mm² part# 1349298
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299
