Melt Probe

MTF 115

APPLICATION

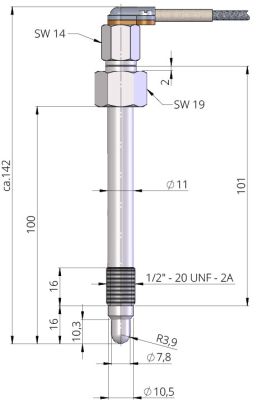

Melt probes are designed for the usage at extrusion sides. Sword shaped, conical and plane measure tips allow a good temperature recording. Accordingly to the thread melt probes can be screwed at standard holes of the extruder. It is to select between single and double thermocouple and isolated or not isolated design. There is no justification of the ball sensor tip at the flow direction required. The standard length of the sensor tip is 10.3 mm, other lengths are available. The ½” 20UNF – 2A threaded screw-in nipple is 101 mm long. At the end of the nipple is a 15 mm long hexagon nut with 19 mm key size. MTF 115 Standard length is 2,000 mm. The sensor parts are out of own production and manufactured on ultra-modern CNC-machinery.

  • operating temperature:
    up to 600 °C
  • isolated or non-isolated
  • single or double thermocouple
  • 1/2” 20 UNF-2A screw-in thread
  • Ø 7.8 x 10.3 mm ball sensor tip
  • up to 600°C
    operating temperature
  • 1/2" - 20 UNF - 2A
    screw-in thread
  • Ø 7.8 x 10.3 mm
    ball sensor tip

MTF 115 Melt Probe

    Miniature - round plugs with screw connection

    2-pin plug T3200 A# 1200716
      socket T3201 A# 1200721





    2-pin plug T3260 A# 1201415



    4-pin plug T3200 A# 1103624
      socket T3301 A# 1200723

    Round plugs with screw connection

    3-pin plug T3079 A# 1103631
      socket T3080 A# 1200749





    5-pin plug T3260 A# 1103635
      socket T3084 A# 1200750



    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard scoket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
