Melt Probe

MTF 114

APPLICATIONS

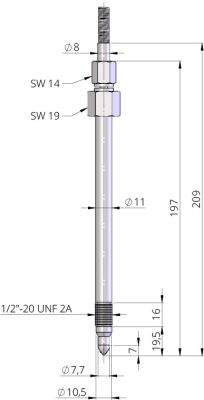

Melt probes are designed for the usage at extrusion sides. Sword shaped, conical and plane measure tips allow a good temperature recording. Accordingly to the thread melt probes can be screwed at standard holes of the extruder. It is to select between single and double thermocouple and isolated or not isolated design. Fitting direction is marked at the holding hexagon bolt with 14 mm key-size of the sword shaped sensor tip. The passage between the sensor and the leads is train relieved and with a Ø 8 x 65 anti-kink protection spring. MTF 114 Standard length is 2,000 mm. The sensor parts are out of own production and manufactured on ultra-modern CNC-machinery.

  • operating temperature: up to 600 °C
  • isolated or non-isolated
  • single or double thermocouple
  • 1/2” 20 UNF-2A screw-in thread
  • straight exit
  • 7 mm standard sword fitting length
  • up to 600°C
    operating temperature
  • 1/2" - 20 UNF - 2A
    screw-in thread
  • 7mm
    sword fitting length

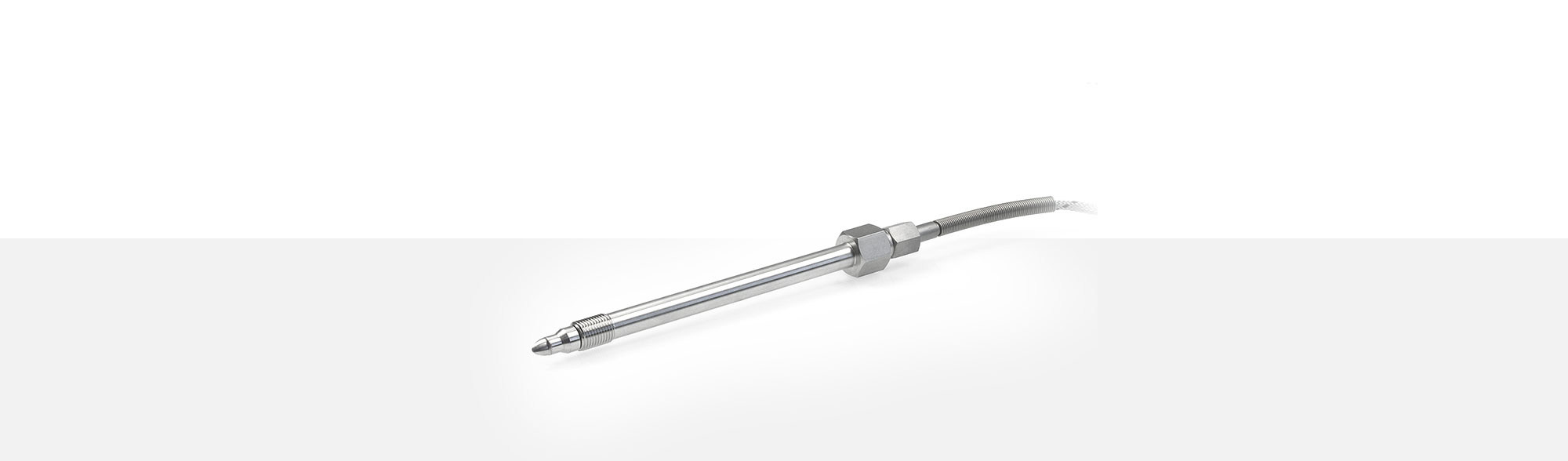

MTF 114 Melt Probe

Please find following our standard thermo and compensating wires for MTF 114 Melt Probes listed. Others are available on request.

Fe-CuNi type L

part# cross section temperature range outer diameter
1200456 4x0,22 mm² -50 °C up to +400 °C 3,80 mm max.
1200464 2x1,00 mm² -50 °C up to +400 °C approx. 4,50 mm
1200465 2x1,00 mm² -50 °C up to +400 °C approx. 4,50 mm
1256523 2x1,00 mm² -50°C up to +500 °C approx. 4,50 x 2,60 mm
2239070 2x1,00 mm² -90°C up to +650 °C approx. 5,00 x 3,20 mm

Fe-CuNi type J

part# cross section temperature range outer diameter
1229818 4x0,22 mm² -50 °C up to +400 °C approx. 3,60 mm
1201349 2x1,00 mm² -50 °C up to +400 °C 4,60 mm max.

NiCr-Ni type K

part# cross section temperature range outer diameter
1298584 4x0,22 mm² -50 °C up to +400 °C 4,00 mm max.
1200473 2x1,00 mm² -50 °C up to +400 °C approx. 4,50 mm

    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    2-pin plug T3260 part# 1201415



    4-pin plug T3200 part# 1103624
      socket T3301 part# 1200723

    Round plugs with screw connection

    3-pin plug T3079 part# 1103631
      socket T3080 part# 1200749





    5-pin plug T3260 part# 1103635
      socket T3084 part# 1200750



    Round plugs with bayonet connection

    3-pin plug T3008 part# 1103627





    5-pin plug T3012 part# 1119173



    Thermocouple plug connectors

    J type plug A9.1 part# 1107127
      socket A10.1 part# 1107128
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299





    K type plug A9.2 part# 1209136
      socket A10.2 part# 1209141
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299

    Duplex - Thermocouple plug connectors

    J type duplex plug   part# 1209139
      duplex socket   part# 1209144
      strain relief 2x1,00 mm² part# 1349298
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299





    K type duplex plug   part# 2105264
      duplex socket   part# 1302891
      strain relief 2x1,00 mm² part# 1349298
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299

    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
