Special Sensors

TEF 35

APPLICATIONS

The here listed thermocouples are mainly customized designs. If you have any queries regarding temperature recording we are more than happy to assist you here. We manufacture form single items up to high volume. Ask us for your temperature sensor!

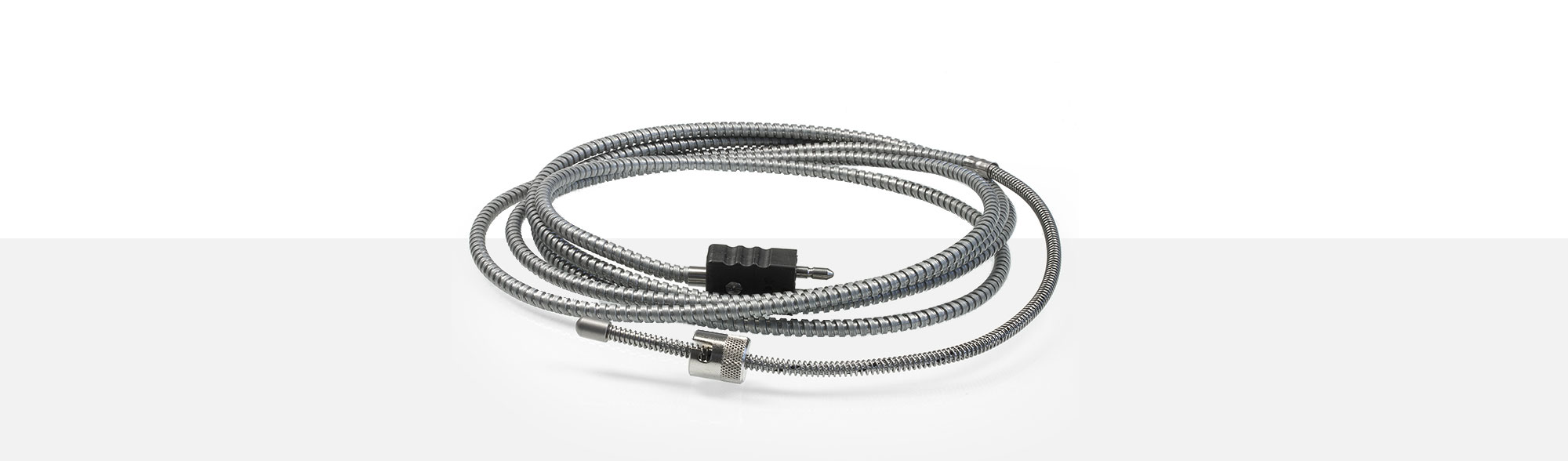

Insertion sensors with bayonet caps are mainly used with forms and tools of the polymer processing industry. Due to the ball sensor tip the sensor is suiting the sensor hole. The standard 200 mm long spring guarantees a perfect contact pressure to the sensor tip. The bayonet cap is with Ø 6 mm spring thread. With twisting the bayonet cap the fitting length can be changed. The internal diameter of the bayonet cap is 15 mm. The leads are protected by a spiral hose. On one end of the spiral hose there is a Ø 6 x 200 mm spring and on the other end a thermocouple plug is fitted.

  • operating temperature: up to 400 °C
  • sensor tip:
    Ø 8 x 12.8 mm – ball
  • isolated or non-isolated
  • single or double thermocouple
  • 4,000 mm metal braided leads with 3,800 mm spiral hose and thermocouple plug connector
  • up to 400°C
    operating temperature
  • Ø 8x12.8mm
    sensor tip - ball
  • Ø 6x200mm
    spring

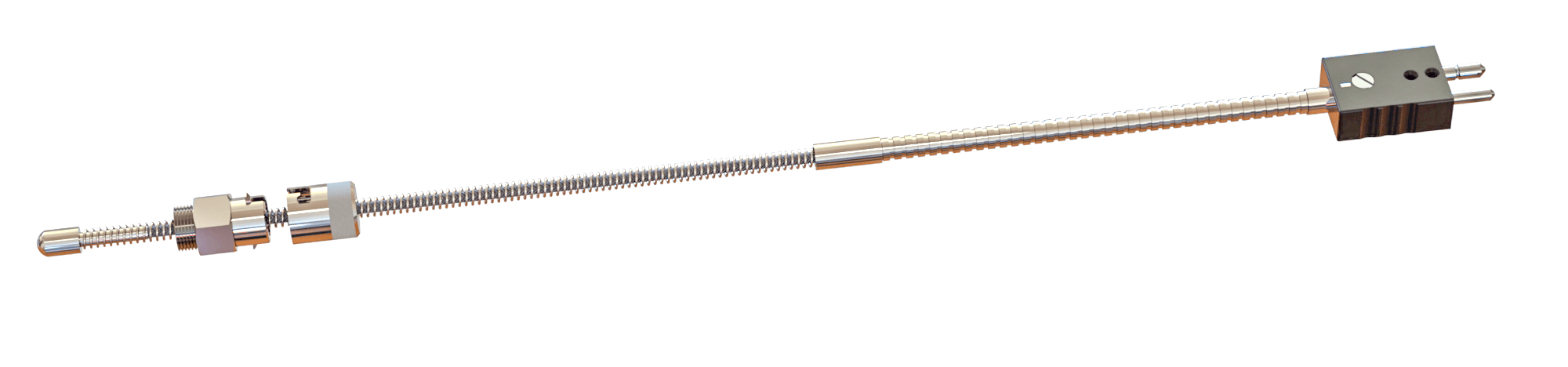

TEF 35 Special Sensor

Please find following our standard thermo and compensating wires for TEF 35 thermocouples listed. Others are available on request.

Fe-CuNi type J

part# cross section temperature range outer diameter
1229818 4x0,22 mm² -50 °C up to +400 °C approx. 3,60 mm
1222528 2x0,35 mm² -50 °C up to +400 °C approx. 3,60 mm
2239028 2x0,35 mm² -50 °C up to +650 °C approx. 3,40 mm

NiCr-Ni type K

part# cross section temperature range outer diameter
1298584 4x0,22 mm² -50 °C up to +400 °C 4,00 mm max.
1200471 2x0,50 mm² -50 °C up to +400 °C approx. 3,50 mm

    Thermocouple plug connectors

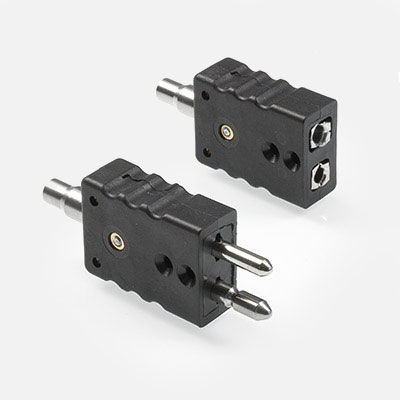

    J type plug A9.1 part# 1107127
      socket A10.1 part# 1107128
      with cross section 2x0,50 mm² part# 1349300

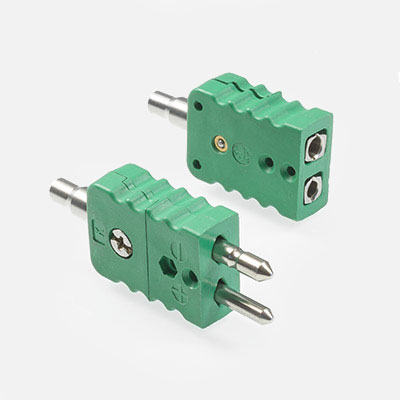

    K type plug A9.2 part# 1209136
      socket A10.2 part# 1134620
      with cross section 2x0,50 mm² part# 1349300

    Duplex - Thermocouple plug connectors

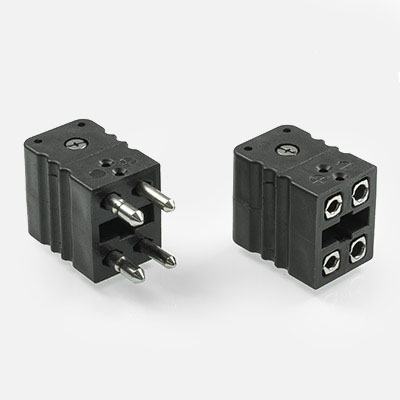

    J type duplex plug   part# 1209139
      duplex socket   part# 1209144
      strain relief 2x1,00 mm² part# 1349298
      with cross section 2x0,50 mm² part# 1349300

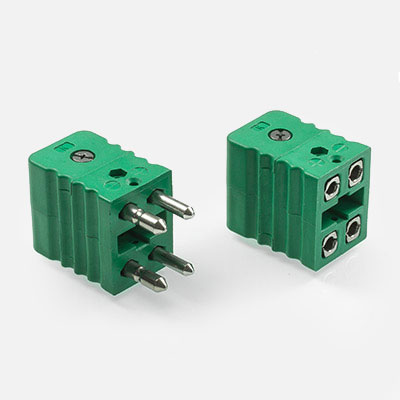

    K type duplex plug   part# 2105264
      duplex socket   part# 1302891
      strain relief 2x1,00 mm² part# 1349298
      with cross section 2x0,50 mm² part# 1349300

    N4 screw-in nipple

    N4 G3/8” screw-in nipple

    part# 1204429
    thread G 3/8"
    thread length 6 mm
    total length 27 mm
    key size 17
    shaft Ø 14,5 mm
    internal Ø 9 mm
    material nickel plated
    steel
    pulled pins 2

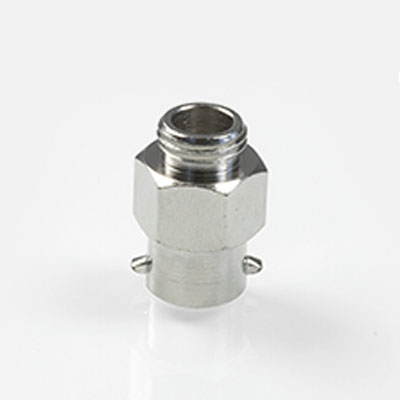

    N4 G1/4” screw-in nipple

    part# 1204428
    length G 1/4"
    thread length 6 mm
    total length 27 mm
    key size 17
    shaft Ø 14,5 mm
    internal Ø 9 mm
    material nickel plated
    steel
    pulled pins 2

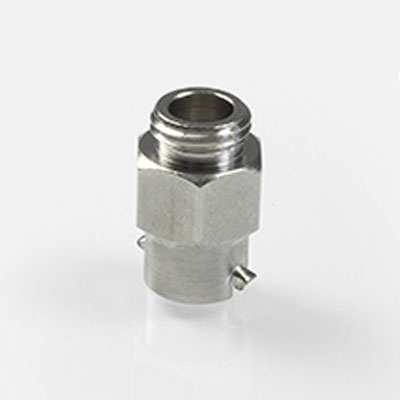

    N4 M14x1.5 screw in nipple

    part# 1204427
    thread M 14 x 1,5
    thread length 6 mm
    total length 27 mm
    key size 17
    shaft Ø 14,5 mm
    internal Ø 9 mm
    material nickel plated
    steel
    pulled pins 2
