Special Sensors

TEF 32

APPLICATION

The here listed thermocouples are mainly customized designs. If you have any queries regarding temperature recording we are more than happy to assist you here. We manufacture form single items up to high volume. Ask us for your temperature sensor!

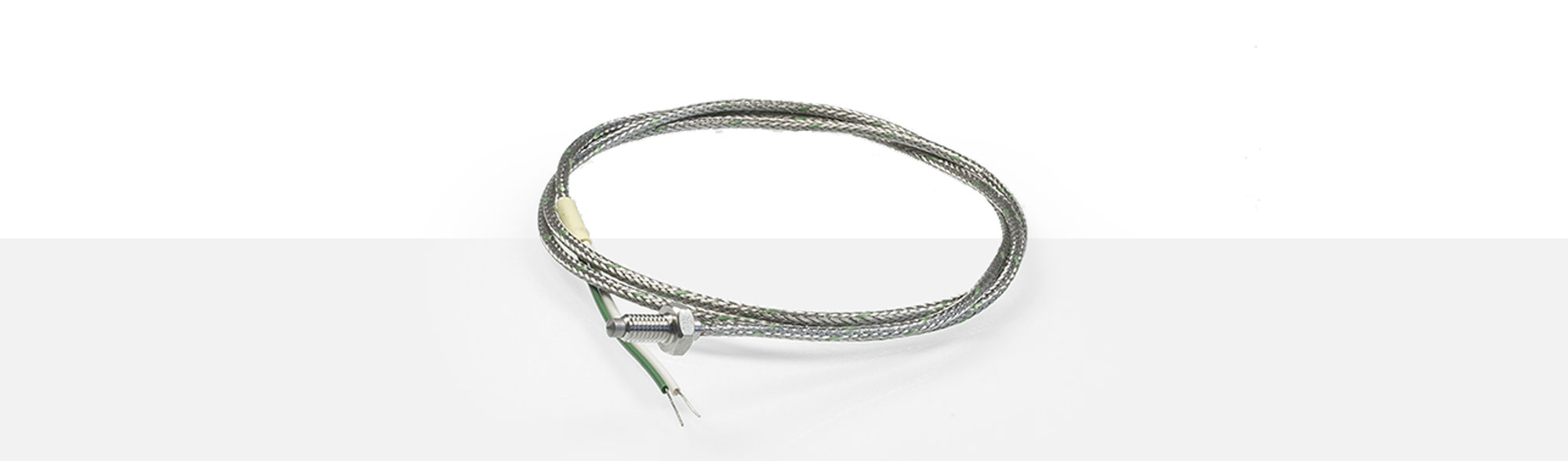

Screw-in thermocouples are very suitable for surface measurements. They are screwed direct into the component and are available in various diameters and thread sizes. The TEF 32 is screwed into the component without twisting the compensating wire.

  • operating temperature: up to 350 °C
  • sensor tip:
    Ø 4 x 4 mm with M6x10.5 nipple,
    10 mm key size
  • isolated or non-isolated
  • single thermocouple
  • up to 350°C
    operating temperature
  • Ø 4x4 mm
    sensor tip - 120°
  • M6x10.5
    thread

TEF 32 Special Sensors

Please find following our standard thermo and compensating wires for TEF 32 thermocouples listed. Others are available on request.

Fe-CuNi type L

part# cross section temperature range outer diameter
2113894 2x0,50 mm² max. bis +400 °C ca. 2,6 mm

Fe-CuNi type J

part# cross section temperature range outer diameter
2113895 2x0,50 mm² max. bis +350 °C ca. 2,6 mm

NiCr-Ni type K

part# cross section temperature range outer diamter
2113896 2x0,50 mm² max. bis +350 °C ca. 3,1 mm

    Miniature - round plugs with screw connection

    2-pin plug T3200 A# 1200716
      socket T3201 A# 1200721





    2-pin plug T3260 A# 1201415



    4-pin plug T3200 A# 1103624
      socket T3301 A# 1200723

    Round plugs with screw connection

    3-pin plug T3079 A# 1103631
      socket T3080 A# 1200749





    5-pin plug T3260 A# 1103635
      socket T3084 A# 1200750



    3-pin plug T3008 A# 1103627





    5-pin plug T3012 A# 1119173



    Thermocouple plug connectors

    J type plug A9.1 A# 1107127
      socket A10.1 A# 1107128
      with cross section 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299





    J type plug A9.2 A# 1107127
      socket A10.2 A# 1107128
      with cross section 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299

    Miniature - Thermocouple plug connectors

    J type mini plug A12.1 A# 1269361
      mini socket A13.1 A# 1269362
      ferrule 2x0,50 mm² A# 1269363





    J type mini plug A12.2 A# 1209147
      mini socket A13.2 A# 2104331
      ferrule   A# 1269363

    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard scoket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
