Special Sensors

TEF 38

APPLICATIONS

The here listed thermocouples are mainly customized designs. If you have any queries regarding temperature recording we are more than happy to assist you here. We manufacture form single items up to high volume. Ask us for your temperature sensor!

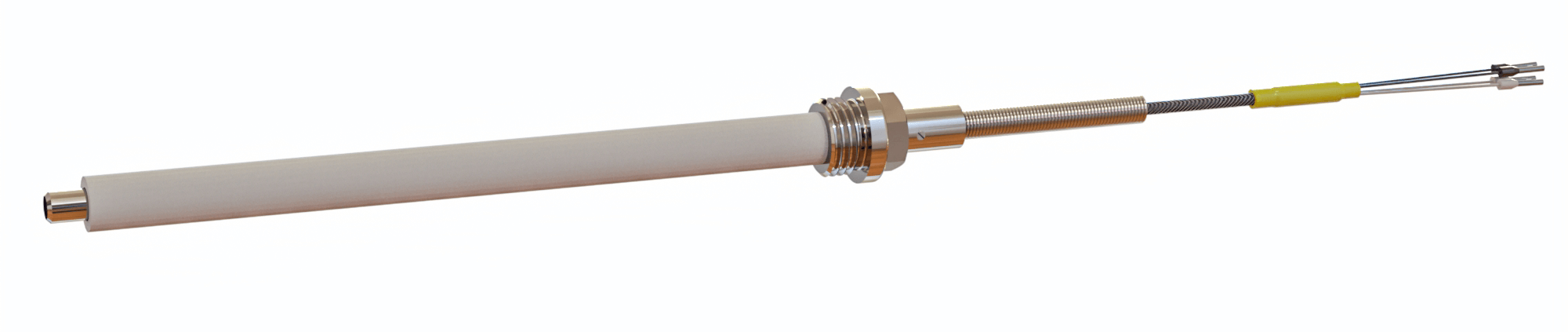

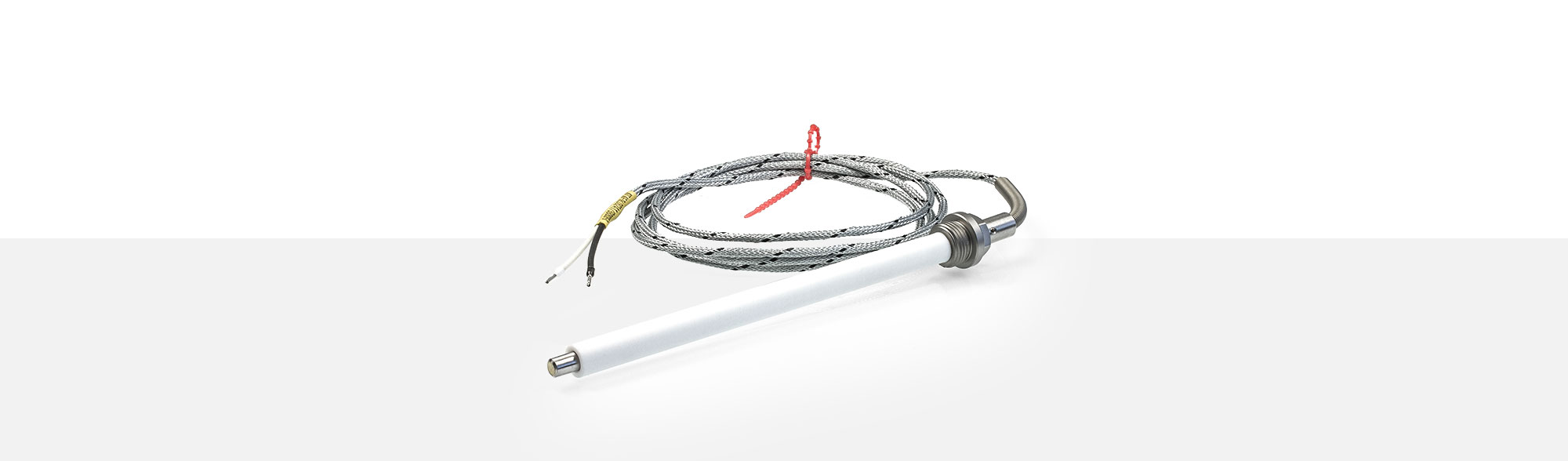

The TEF 38 screw-in sensor with Ø 8 x 215 mm dimension and Teflon protection sleeve Ø 14 / 8.1 x 195 mm. The protection sleeve has a M10x13 deep internal thread on one side which is screwed underneath the G1/2” 12 mm long M10 thread stud. The measures surface is plane.

  • operating temperature: up to 250 °C
  • sensor tip:
    Ø 8 x 215 mm – plane
    Ø 14 x 195 mm Teflon sleeve
  • isolated or non-isolated
  • single or double thermocouple
  • G1/2” screw-in nipple, 19 mm key size
  • up to 250°C
    operating temperature
  • Ø 8x215mm
    sensor tip - plane
  • Ø 14x195mm
    teflon sleeve

TEF 38 Special Sensor

Please find following our standard thermo and compensating wires for TEF 38 Melt Probes listed. Others are available on request.

Fe-CuNi type L

part# cross section temperture range outer diameter
1200456 4x0,22 mm² -50 °C up to +400 °C 3,80 mm max.
1200464 2x1,00 mm² -50 °C up to +400 °C approx. 4,50 mm
1200465 2x1,00 mm² -50 °C up to +400 °C approx. 4,50 mm
2239070 2x1,00 mm² -90°C up to +650 °C approx. 5,00 x 3,20 mm

Fe-CuNi type J

part# cross section temperature range outer diameter
1229818 4x0,22 mm² -50 °C up to +400 °C approx. 3,60 mm
1231037 2x0,50 mm² -50 °C up to +400 °C approx. 3,90 mm
1201349 2x1,00 mm² -50 °C up to +400 °C 4,60 mm max.

NiCr-Ni type K

part# cross section temperature range outer diameter
1298584 4x0,22 mm² -50 °C up to +400 °C 4,00 mm max.
1200473 2x1,00 mm² -50 °C up to +400 °C approx. 4,50 mm

    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    2-pin plug T3260 part# 1201415



    4-pin plug T3200 part# 1103624
      socket T3301 part# 1200723

    Round plugs with screw connection

    3-pin plug T3079 part# 1103631
      socket T3080 part# 1200749





    5-pin plug T3260 part# 1103635
      socket T3084 part# 1200750



    Round plugs with bayonet connection

    3-pin plug T3008 part# 1103627





    5-pin plug T3012 part# 1119173



    Thermocouple plug connectors

    J type plug A9.1 part# 1107127
      socket A10.1 part# 1107128
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299





    K type plug A9.2 part# 1209136
      socket A10.2 part# 1209141
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299

    Duplex - Thermocouple plug connectors

    J type duplex plug   part# 1209139
      duplex socket   part# 1209144
      strain relief 2x1,00 mm² part# 1349298
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299





    K type duplex plug   part# 2105264
      duplex socket   part# 1302891
      strain relief 2x1,00 mm² part# 1349298
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299

    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
