Special Sensors

TEF 36

APPLICATIONS

The here listed thermocouples are mainly customized designs. If you have any queries regarding temperature recording we are more than happy to assist you here. We manufacture form single items up to high volume. Ask us for your temperature sensor!

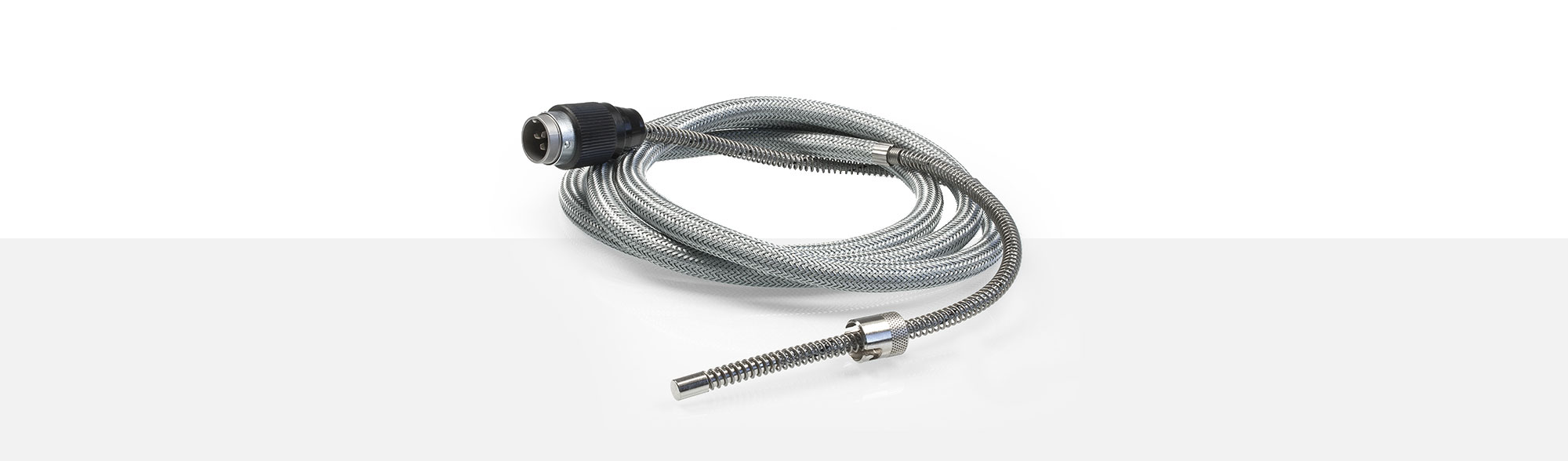

Plug-in sensors with bayonet caps are mainly used with forms and tools of the polymer processing industry. Due to the plane sensor tip the sensor is ideal for surface measurements. The standard 300 mm long spring guarantees a perfect contact pressure to the sensor tip. The bayonet cap is with Ø 8 mm spring thread. With twisting the bayonet cap the fitting length can be changed. The internal diameter of the bayonet cap is 15 mm. The leads are protected by a spiral hose. On one end of the spiral hose there is a Ø 8 x 200 mm spring and on the other end a thermocouple plug is fitted.

  • operating temperature: up to 400 °C
  • sensor tip:
    Ø 8 x 12 mm – plane
  • isolated or non-isolated
  • single or double thermocouple
  • leads with spiral hose and additionally protected with metal braided hose
  • up to 400°C
    operating temperature
  • Ø 8x12mm
    sensor tip - plane
  • Ø 8x200mm
    spring

TEF 36 Special Sensor

Please find following our standard thermo and compensating wires for TEF 36 Melt Probes listed. Others are available on request.

Fe-CuNi type L

part# cross section temperature range outer diameter
1200456 4x0.22 mm² -50 °C up to +400 °C 3.80 mm max.
1200464 2x1.00 mm² -50 °C up to +400 °C approx. 4.50 mm
1200465 2x1.00 mm² -50 °C up to +400 °C approx. 4.50 mm
1256523 2x1.00 mm² -50°C up to +500 °C approx. 4.50 x 2.60 mm

Fe-CuNi type J

part# cross section temperature range outer diameter
1229818 4x0.22 mm² -50 °C up to +400 °C approx. 3.60 mm
1231037 2x0.50 mm² -50 °C up to +400 °C approx. 3,90 mm
1201349 2x1.00 mm² -50 °C up to +400 °C 4.60 mm max.

NiCr-Ni type K

part# cross section temperature range outer diameter
1298584 4x0.22 mm² -50 °C up to +400 °C 4.00 mm max.
1200473 2x1.00 mm² -50 °C up to +400 °C approx. 4.50 mm

N4 screw-in nipple

N4 G3/8” screw-in nipple

part# 1204429
thread G 3/8"
thread length 6 mm
total length 27 mm
key size 17
shaft Ø 14,5 mm
internal Ø 9 mm
material nickel plated
steel
pulled pins 2

N4 G1/4” screw-in nipple

part# 1204428
thread G 1/4"
thread length 6 mm
total length 27 mm
key size 17
shaft Ø 14,5 mm
internal Ø 9 mm
material nickel plated
steel
pulled pins 2

N4 M14x1.5 screw in nipple

part# 1204427
thread M 14 x 1,5
thread length 6 mm
total length 27 mm
key size 17
shaft Ø 14,5 mm
internal Ø 9 mm
material nickel plated
steel
pulled pins 2

    Round plugs with screw connection

    3-pin plug T3079 part# 1103631
      socket T3080 part# 1200749





    5-pin plug T3260 part# 1103635
      socket T3084 part# 1200750



    Round plugs with bayonet connection

    3-pin plug T3008 part# 1103627





    5-pin plug T3012 part# 1119173



    Thermocouple plug connectors

    J type plug A9.1 part# 1107127
      socket A10.1 part# 1107128
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299





    K type plug A9.2 part# 1209136
      socket A10.2 part# 1209141
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299

    Duplex - Thermocouple plug connectors

    J type duplex plug   part# 1209139
      duplex socket   part# 1209144
      strain relief 2x1,00 mm² part# 1349298
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299





    K type duplex plug   part# 2105264
      duplex socket   part# 1302891
      strain relief 2x1,00 mm² part# 1349298
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299
