Surface Mounting/Tool Resistance Sensors

PWF 13

Applications

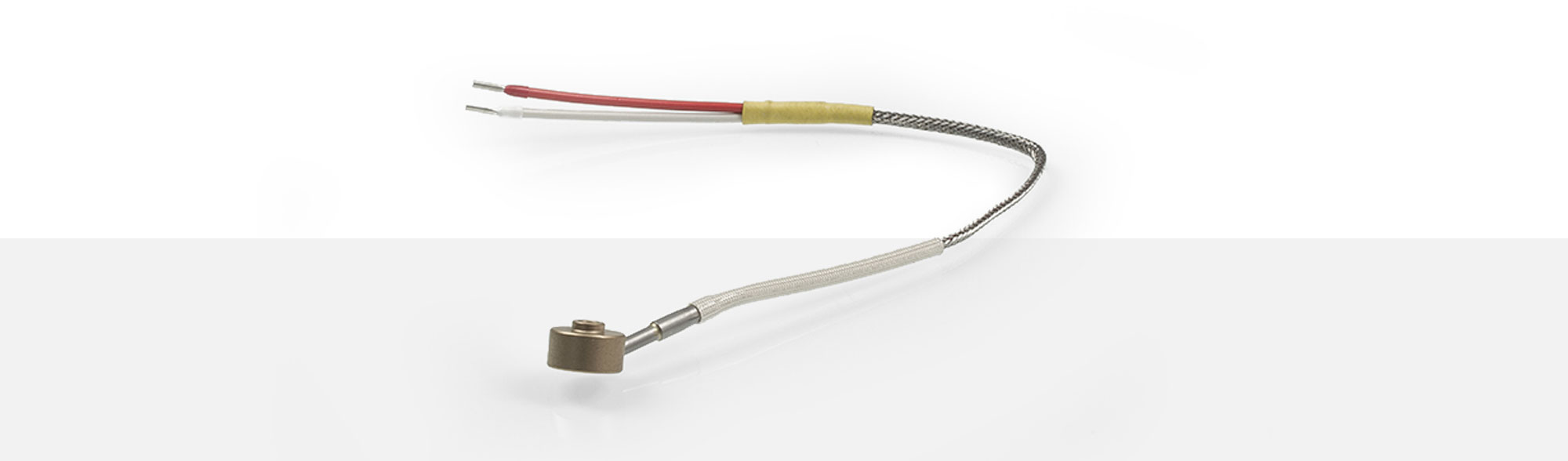

Surface sensors are used for temperature measurement on round and flat surfaces. The brass ring with the dimensions Ø 16/7 x 8/10 mm has a 30 ° sensor outlet on the side. There is a Ø 4.3 mm hole in the center, which is used to fasten a central M4 screw. The standard version is manufactured with a connection line consisting of nickel-plated copper wire. The single cores have PFA and glass silk insulation and are braided together with glass silk and stainless steel wires.

  • Pt100 gauge slide as per
    DIN EN 60751 – class B
  • two-wire circuit as standard design
  • operating temperature: up to 260 °C
  • isolated
  • sensor ring: Ø 16 / 7 x 8 / 10 mm
  • 60 mm fiberglass hose as standard anti-kink protection
  • up to 260°C
    operating temperature
  • Ø 16/7 x 8/10 mm
    sensor ring
  • 60 mm GLS
    anti-kink protection

PWF 13 Surface Mounting/Tool Resistance Sensors

Please find following our standard leads for PWF 13 Resistance sensors listed. Others are available on request.

part# cross section temperature range outer diameter
1308376 2x0.22 mm²
Cu-tinned
-50 °C up to +350 °C 3.50 ±0.15 mm
1201352 2x0.38 mm²
Cu-nickel plated
-50 °C up to +260 °C 3.45 x 1.95 mm
1340642 3x0.25 mm²
Cu-tinned
-60 °C up to +260 °C 3.40 ±0.15 mm

    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    3-pin plug T3260 part# 1201415
      socket T3261 part# 1200722



    4-pin plug T3300 part# 1103624
      socket T3301 part# 1200723

    Round plugs with screw connection

    3-pin plug T3079 part# 1103631
      socket T3080 part# 1200749





    5-pin plug T3083 part# 1103635
      socket T3084 part# 1200750



    Round plugs with bayonet connection

    3-pin plug T3008 part# 1103627





    5-pin plug T3012 part# 1119173



    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
