Surface Mounting/Tool Resistance Sensors

PWF 211

APPLICATIONS

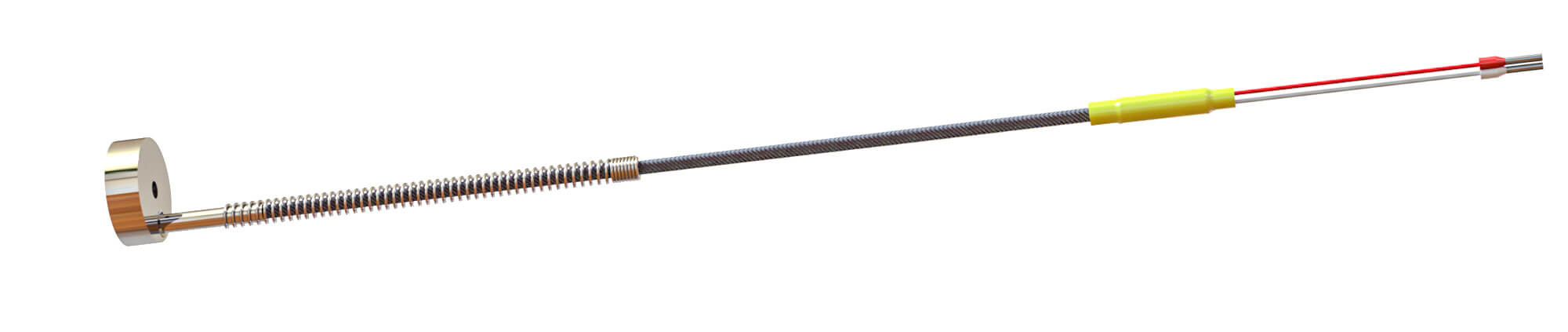

Surface mounting/tool resistance sensors are for measuring round or plane surfaces. The PWF 211 resistance sensor dimensions are Ø 25 x 8 mm with a Ø 4.2 mm borehole for a M4 fastening screw. The Ø 6 x 100 mm anti-kink protection spring protects the leads against damage. Standard leads are copper wires with fiberglass meshing and PTFE coding covered with stainless steel metal braid.

  • Pt100 gauge slide as per
    DIN EN 60751 – class B
  • two-wire circuit as standard design
  • operating temperature: up to 260 °C
  • isolated
  • Ø 25 / 4.2 x 8 mm sensor tip
  • Ø 6 x 100 mm anti-kink protection spring
  • up to 260°C
    operating temperature
  • Ø25/4.2x8mm
    sensor tip
  • Ø6x100mm
    anti kink protection

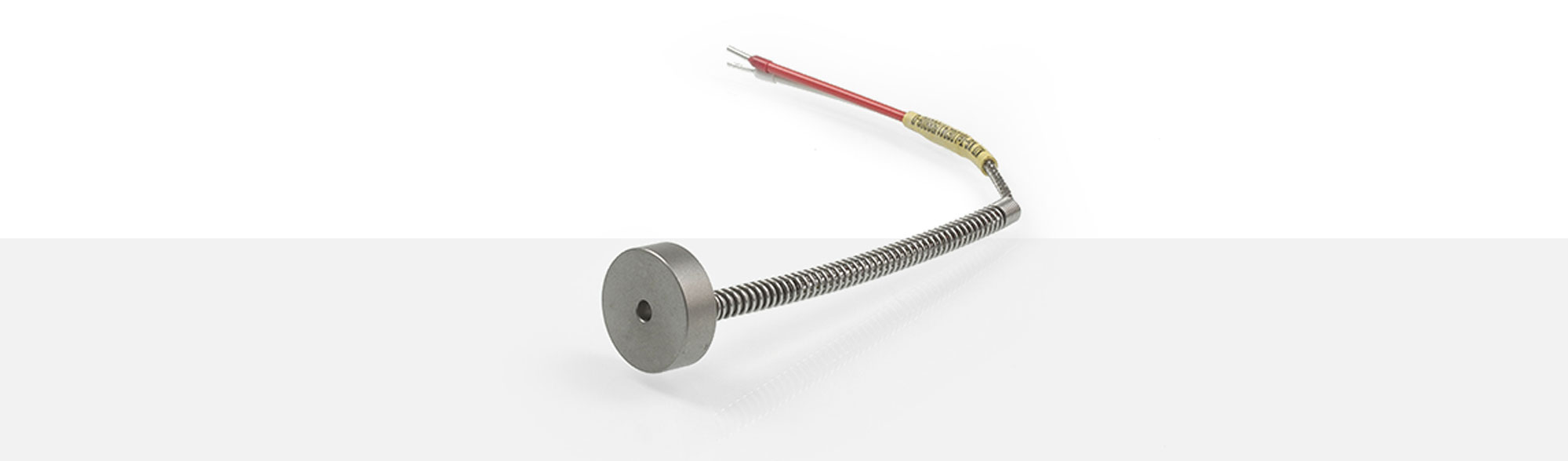

PWF 211 Resistance Sensor

Please find following our standard leads for PWF 211 Resistance sensors listed. Others are available on request.

part# cross section temperature range outer diameter
1308376 2x0.22 mm²
Cu-tinned
-50 °C until +350 °C 3.50 ±0.15 mm
1258824 2x0.25 mm²
Cu-tinned
-50 °C until +260 °C 3.30 ±0.10 mm
1201352 2x0.38 mm²
Cu-nickel plated
-50 °C until +260 °C 3.45 x 1.95 mm
1340642 3x0.25 mm²
Cu-tinned
-60 °C until +260 °C 3.40 ±0.15 mm
1300580 4x0.22 mm²
Cu-tinned
-90 °C until +260 °C 3.50 ±0.10 mm

    Miniature - round plugs with screw connection

    2-pin plug T3200 A# 1200716
      socket T3201 A# 1200721





    2-pin plug T3260 A# 1201415



    4-pin plug T3200 A# 1103624
      socket T3301 A# 1200723

    Round plugs with screw connection

    3-pin plug T3079 A# 1103631
      socket T3080 A# 1200749





    5-pin plug T3260 A# 1103635
      socket T3084 A# 1200750



    3-pin plug T3008 A# 1103627





    5-pin plug T3012 A# 1119173



    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard scoket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
