Surface Mounting/Tool Resistance Sensors

PWF 204

APPLICATIONS

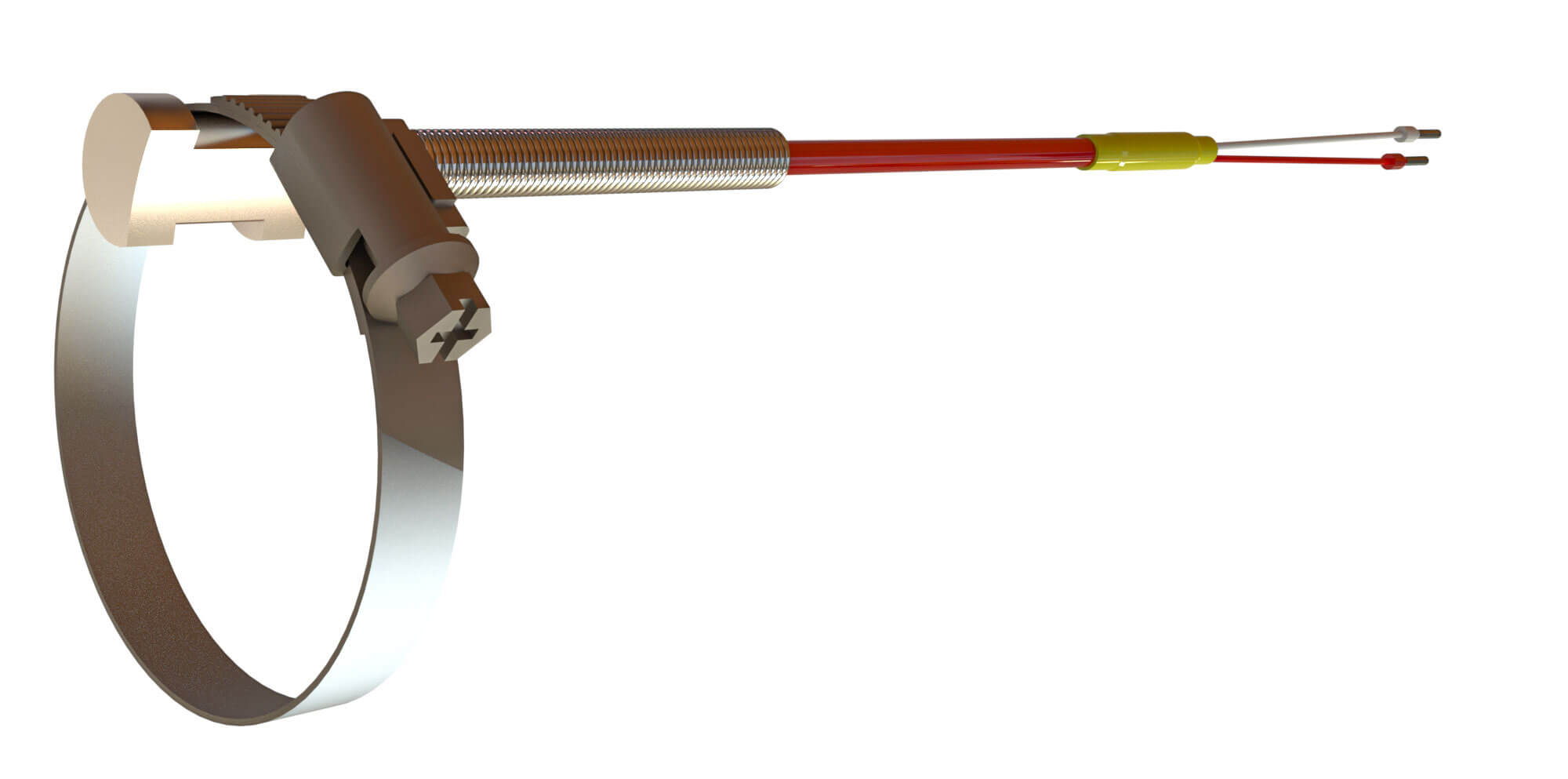

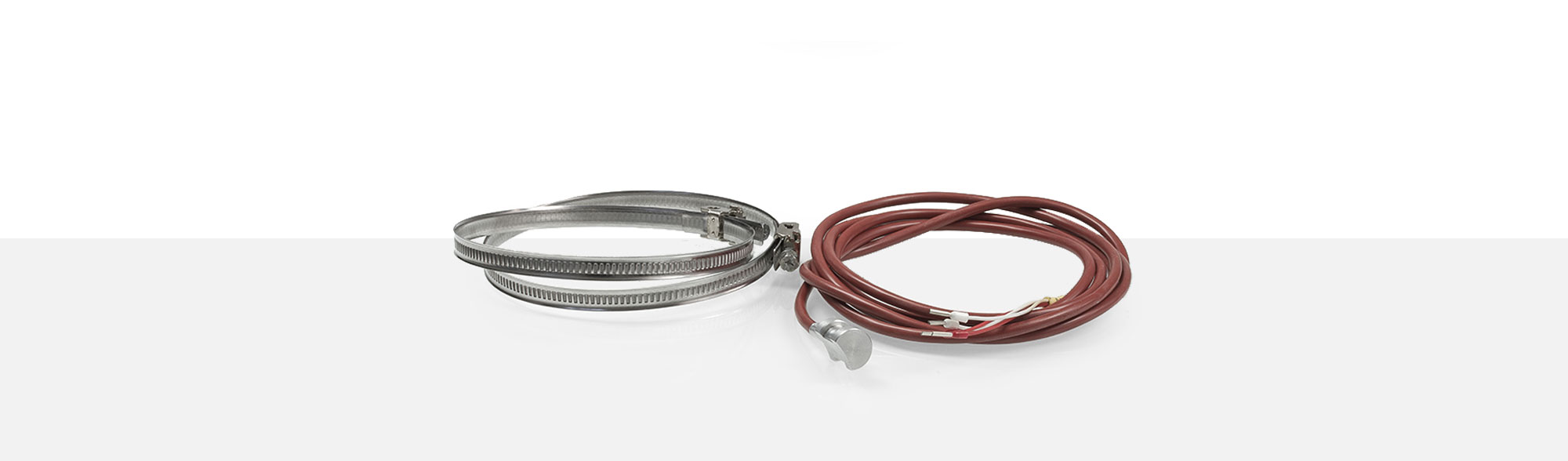

The PWF 204 resistance sensor is a tube surface sensor with aluminum casing and a standard radius of 30 mm. The copper strand leads with silicone jacket. The design of the sensor allows an easy fitting via inclusive clamping band. The gauge slide, radius, leads up to 260 °C and circuit type can be adjusted as per customer request.

  • tube surface sensor – radius 30 mm
  • Pt100 gauge slide as per
    DIN EN 60751 – class B
  • two-wire circuit as standard design
  • operating temperature: up to 180 °C
  • isolated
  • out of aluminum
  • up to 180°C
    operating temperature
  • radius 30mm
    tube surface sensor
  • Ø60-660mm
    hose clips

PWF 204 Surface Mounting/Tool Resistance Sensors

Please find following our standard leads for PWF 204 Resistance sensors listed. Others are available on request.

part# cross section temperatuer range outer diameter
1307865 4x0.25 mm²
Cu-tinned
-25 °C up to +180 °C 4.50 ±0.15 mm

hose clips

part clamping range
1200974 Ø 16 - 25 mm
1201051 Ø 23 - 35 mm
1200976 Ø 25 - 40 mm
1200977 Ø 32 - 50 mm
1200978 Ø 40 - 60 mm
1200979 Ø 50 - 70 mm
1200980 Ø 60 - 80 mm
1200981 Ø 70 - 90 mm

From clamping range Ø 60 – 110 mm (part number 2101604) hinged hose clips are available.

part clamping range
2101604 Ø 60 - 100 mm
2114190 Ø 60 - 135 mm
2114191 Ø 60 - 170 mm
2114192 Ø 60 - 215 mm
2114193 Ø 60 - 325 mm
2114194 Ø 60 - 425 mm
2114195 Ø 60 - 525 mm
2114196 Ø 60 - 660 mm

    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    2-pin plug T3260 part# 1201415



    4-pin plug T3200 part# 1103624
      socket T3301 part# 1200723

    Round plugs with screw connection

    3-pin plug T3079 part# 1103631
      socket T3080 part# 1200749





    5-pin plug T3260 part# 1103635
      socket T3084 part# 1200750



    Round plugs with bayonet connection

    3-pin plug T3008 part# 1103627





    5-pin plug T3012 part# 1119173



    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
