Surface Mounting/Tool Resistance Sensors

PWF SP

APPLICATIONS

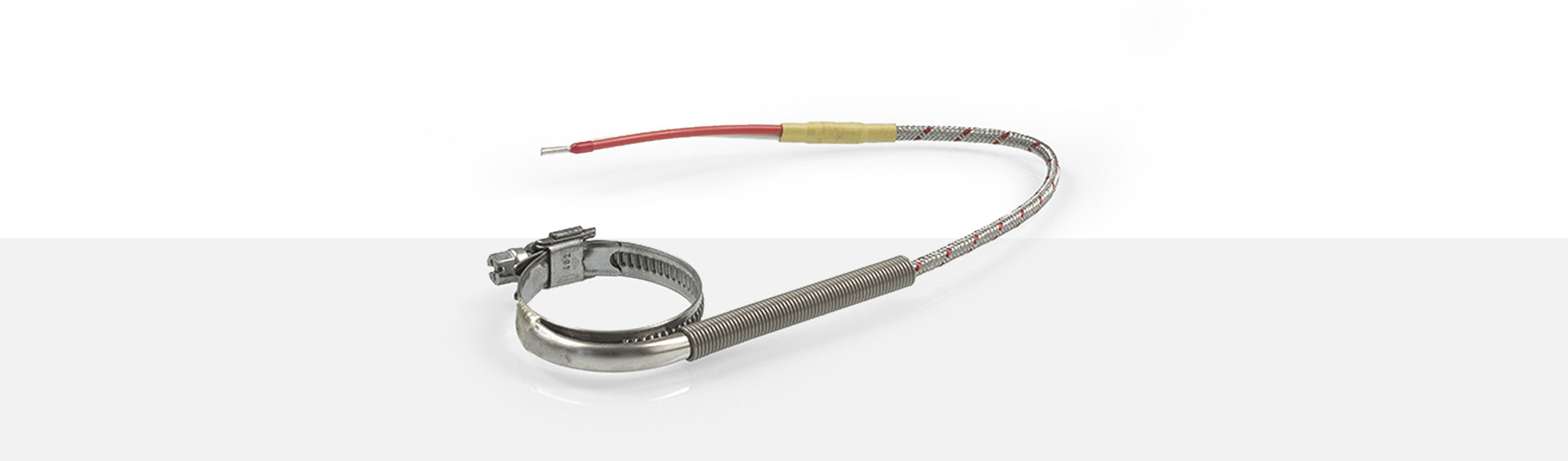

Surface mounting/tool resistance sensors are for measuring round or plane surfaces.  The temperature sensor is screwed on the Cylinder like a hose clip. DIN 3017 screw hose clips are used as clamp bands. Band and casing are out of 1.4015 Material and the screw is galvanized steel with cross slot. Our standard sizes are Ø 12 – 22 mm up to Ø 90 – 110 mm 9 mm wide and from Ø 100 – 120 mm 12 mm wide. A complete 1.4301 stainless steel version is as well available. The thermocouple is 90° soldered from the screw. The passage of leads and protection tube serves as mechanical protection. Axial and radial cable exit is as well available.

  • Pt100 gauge slide as per
    DIN EN 60751 – class B
  • two-wire circuit as standard design
  • operating temperature: up to 260 °C
  • isolated
  • straining as per table
  • Ø 8 x 65 mm standard anti-kink protection spring
  • up to 300°C
    operating temperature
  • as per table
    straining
  • Ø 8 x 65 mm
    anti-kink protection spring

PWF SP Surface Mounting/Tool Resistance Sensors

Tension range

tension range variation tension range variation
12 - 22 mm 9 mm 80 - 100 mm 9 mm
16 - 27 mm 9 mm 90 - 110 mm 9 mm
20 - 32 mm 9 mm 100 - 120 mm 12 mm
25 - 40 mm 9 mm 110 - 130 mm 12 mm
32 - 50 mm 9 mm 120 - 140 mm 12 mm
40 - 60 mm 9 mm 130 - 150 mm 12 mm
50 - 70 mm 9 mm 140 - 160 mm 12 mm
60 - 80 mm 9 mm 150 - 170 mm 12 mm
70 - 90 mm 9 mm





    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    2-pin plug T3260 part# 1201415



    4-pin plug T3200 part# 1103624
      socket T3301 part# 1200723

    Round plugs with screw connection

    3-pin plug T3079 part# 1103631
      socket T3080 part# 1200749





    5-pin plug T3260 part# 1103635
      socket T3084 part# 1200750



    Round plugs with bayonet connection

    3-pin plug T3008 part# 1103627





    5-pin plug T3012 part# 1119173



    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
    markerProductAnimation
