Surface Mounting/Tool Resistance Sensors

PWF 75

APPLICATIONS

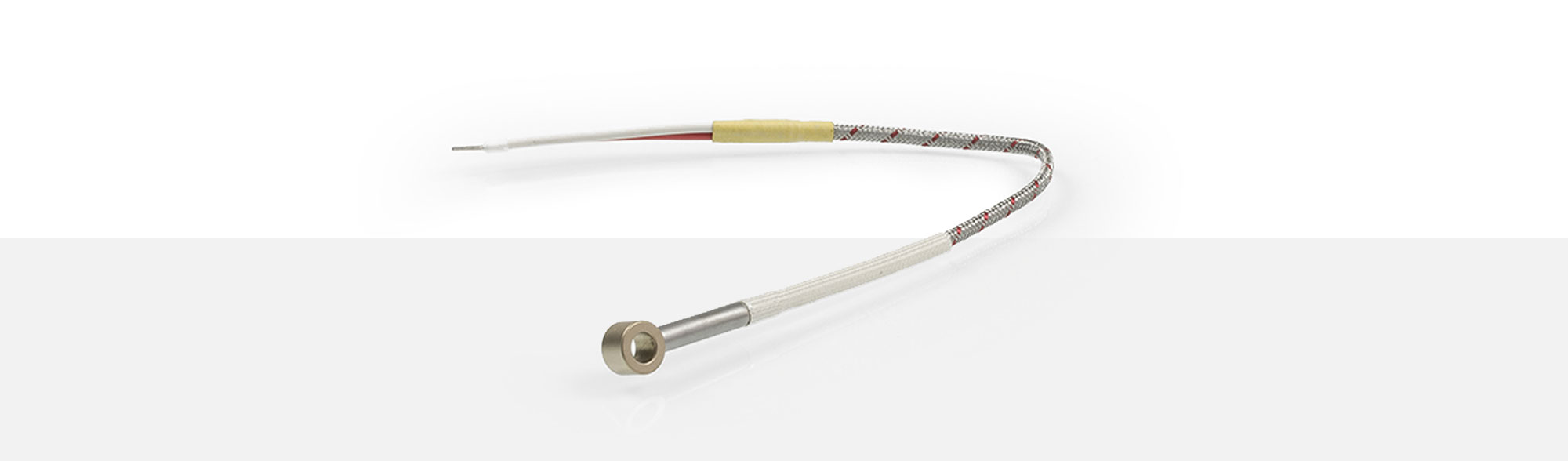

Surface mounting/tool resistance sensors are for measuring round or plane surfaces. A flat Ø 6 x 2.5 mm deep blind hole is drilled in the 8 mm wide brass ring, into which the protective tube Ø 6 x 37 mm is soldered. The transition from the pipe to the compensating line is conically relieved. A 60 mm long special glass silk hose with heat-resistant coating up to 400 ° C is used as kink protection. The sensor can be screwed with a z. B. M6 x 15 mm. The standard version is manufactured with a connection line consisting of nickel-plated copper wire. The single cores have PFA and glass silk insulation and are braided together with glass silk and stainless steel wires.

  • Pt100 gauge slide as per
    DIN EN 60751 – class B
  • two-wire circuit as standard design
  • operating temperature: up to 260 °C
  • isolated
  • brass ring: Ø 12 / 6,5 x 8 mm
  • with Ø 6 x 37 mm protection tube
  • 60 mm fiberglass hose as standard anti-kink protection
  • up to 260°C
    operating temperature
  • 60mm GLS
    anti-kink protection
  • Ø 12/6.5 x 8 mm
    brass ring

PWF 75 Surface Mounting/Tool Resistance Sensors

Please find following our standard leads for PWF 75 Resistance sensors listed. Others are available on request.

part# cross section temperature range outer diameter
1308376 2x0.22 mm²
Cu-tinned
-50 °C up to +350 °C 3.50 ±0.15 mm
1298296 2x0.22 mm²
Cu-tinned
-50 °C up to +260 °C 3.80 ±0.05 mm
1258824 2x0.25 mm²
Cu-tinned
-50 °C up to +260 °C 3.30 ±0.10 mm
1201354 2x0.35 mm²
Cu-nickel plated
-50 °C up to +260 °C 4.6 x 2.8 mm
1201352 2x0.38 mm²
Cu-nickel plated
-50 °C up to +260 °C 3.45 x 1.95 mm
1340642 3x0.25 mm²
Cu-tinned
-60 °C up to +260 °C 3.40 ±0.15 mm
1307789 4x0.22 mm²
Cu-tinned
-50 °C up to +350 °C 4.00 ±0.15 mm
1307865 4x0.25 mm²
Cu-tinned
-25 °C up to +180 °C 4.50 ±0.15 mm



    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    2-pin plug T3260 part# 1201415



    4-pin plug T3200 part# 1103624
      socket T3301 part# 1200723

    Round plugs with screw connection

    3-pin plug T3079 part# 1103631
      socket T3080 part# 1200749





    5-pin plug T3260 part# 1103635
      socket T3084 part# 1200750



    Round plugs with bayonet connection

    3-pin plug T3008 part# 1103627





    5-pin plug T3012 part# 1119173



    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
