plug-in sensors

PWF 1

APPLICATIONS

Plug-in resistance sensors are ideal for surface measuring. They are screwed directly into the component and are available with various thread sizes.  The anti-kink protection is selectable. Springs with special-fiberglass hose and 400°C heat resistant varnish are standard. Furthermore are PVC-PFA-fiberglass thermo and compensating wires as well as fiberglass with metal braided meshing available.

  • Pt100 gauge slide as per
    DIN EN 60751 – class B
  • two-wire circuit as standard design
  • operating temperature: up to 260 °C
  • isolated
  • sensor pin:
    Ø 6 x 60 / 100 / 150 mm
  • stainless steel tube made of 1.4301 or 1.4541
  • M10x1 terminal screw
  • up to 260°C
    operating temperature
  • Ø 6 x 60/100/150 mm
    sensor tip
  • M10 x 1
    terminal screw

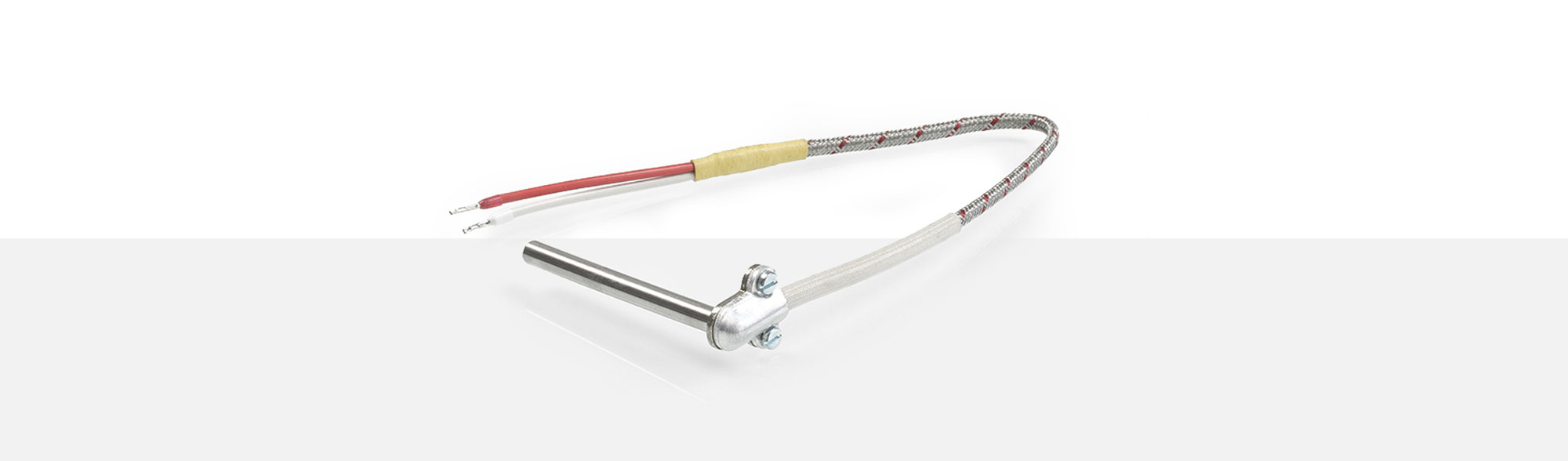

PWF 1 plug-in sensor

Please find following our standard leads for PWF 1 Resistance sensors listed. Others are available on request.

part# cross section temperature range outer diameter
1308376 2x0.22 mm²
Cu-tinned
-50 °C up to +350 °C 3.50 ±0.15 mm
1298296 2x0.22 mm²
Cu-tinned
-50 °C up to +260 °C 3.80 ±0.05 mm
1258824 2x0.25 mm²
Cu-tinned
-50 °C up to +260 °C 3.30 ±0.10 mm
1201354 2x0.35 mm²
Cu-nickel plated
-50 °C up to +260 °C 4.6 x 2.8 mm
1201352 2x0.38 mm²
Cu-nickel plated
-50 °C up to +260 °C 3.45 x 1.95 mm
1340642 3x0.25 mm²
Cu-tinned
-60 °C up to +260 °C 3.40 ±0.15 mm
1266897 4x0.18 mm²
Cu-nickel plated
-50 °C up to +260 °C 3.90 ±0.15 mm
1307789 4x0.22 mm²
Cu-tinned
-50 °C up to +350 °C 4.00 ±0.15 mm
1300580 4x0.22 mm²
Cu-tinned
-90 °C up to +260 °C 3.50 ±0.10 mm
1307865 4x0.25 mm²
Cu-tinned
-25 °C up to +180 °C 4.50 ±0.15 mm

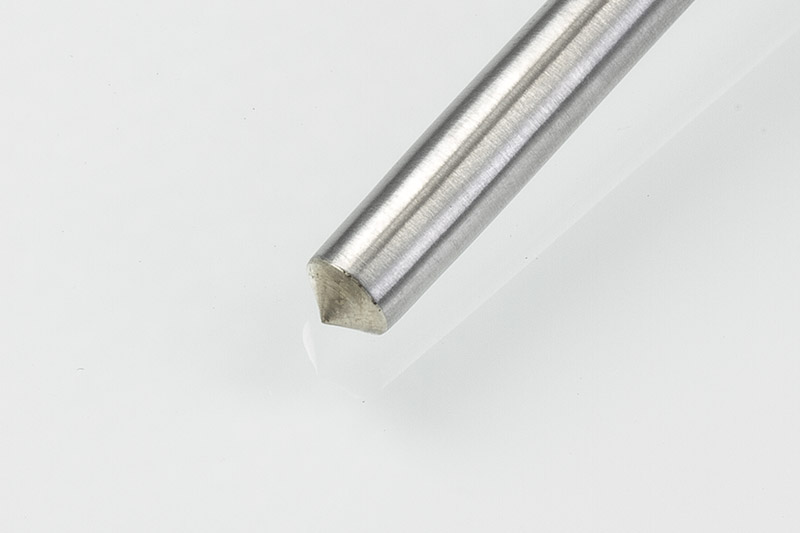

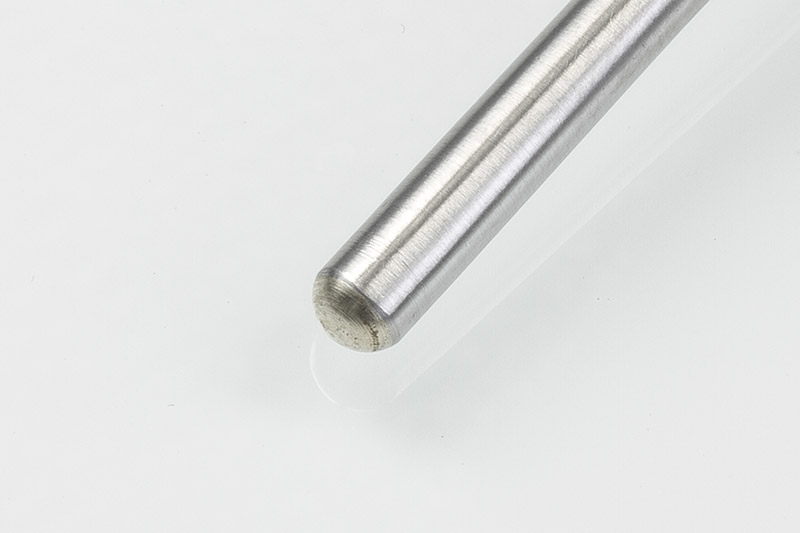

Sensor tips

    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    3-pin plug T3260 part# 1201415
      socket T3261 part# 1200722



    4-pin plug T3300 part# 1103624
      socket T3301 part# 1200723

    Round plugs with screw connection

    3-pin plug T3079 part# 1103631
      socket T3080 part# 1200749





    5-pin plug T3083 part# 1103635
      socket T3084 part# 1200750



    Round plugs with bayonet connection

    3-pin plug T3008 part# 1103627





    5-pin plug T3012 part# 1119173



    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2

    Clamping screws

    Clamping screws are variable adjustable at the sensor tube. It is a save and sealed connection at process entry. An advantages of the clamping screws is the easy assembly and disassembly of the Temperature Sensor. Various designs in various materials and threads for different diameters are available.

    M10x1 clamping screw

    part# 1358666
    thread M10x1
    thread length 8 mm
    total length ca. 33 mm
    key size of
    screw nut
    12 mm
    internal Ø 6,2 mm
    sealing ring Ø 6,2 mm
    material nickel
    plated steel

    M10x1 clamping screw

    part# 1216718
    thread M10x1
    thread length 8 mm
    total length ca. 33 mm
    key size of
    screw nut
    14
    internal Ø 6,2 mm
    sealing ring Ø 6,2 mm
    material stainless
    steel

    G 1/8" clamping screw

    part# 1364567
    thread G 1/8"
    thread length 8 mm
    totale length ca. 33 mm
    key size of
    screw nut
    14
    internal Ø 6,2 mm
    sealing ring Ø 6,2 mm
    material phosphated
    steel
