plug-in sensors

PWF 70

APPLICATIONS

Plug-in resistance sensors are ideal for all possible application of temperature measuring. PWF 70 is the preferred thermocouple at hot runner systems. The passage of compensating wire and protection tube is conical strain relieved. Anti-kink protection is selectable. Springs with special-fiberglass hose and 400 °C heat resistant varnish are standard. Available are as well various protection tube materials, lengths and diameters. Standard leads are galvanized copper wires with PFA- and fiberglass insulation covered by steel metal braid.



  • Pt100 gauge slide as per
    DIN EN 60751 – class B
  • two-wire circuit as standard design
  • operating temperature: up to 260 °C
  • isolated
  • sensor tip:
    Ø 6 x 25 / 32 mm 1.4541 stainless steel
  • 60 mm fiberglass hose as standard anti-kink protection
  • up to 260°C
    operating temperature
  • Ø 6 x 25/32 mm
    sensor tip
  • 60 mm fiberglass
    anti-kink protection

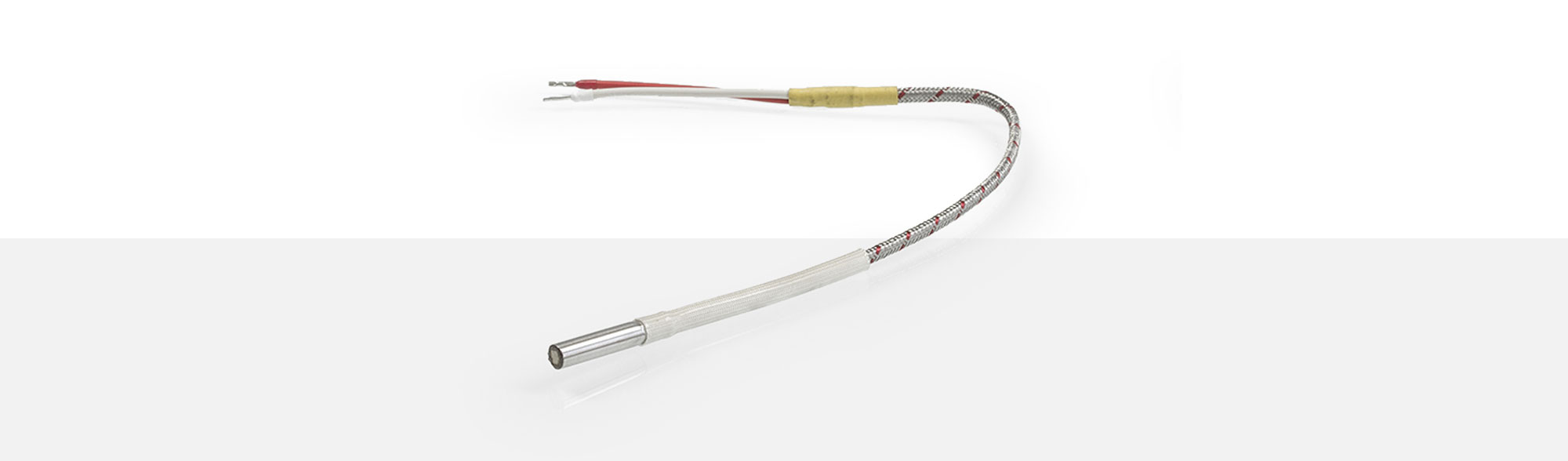

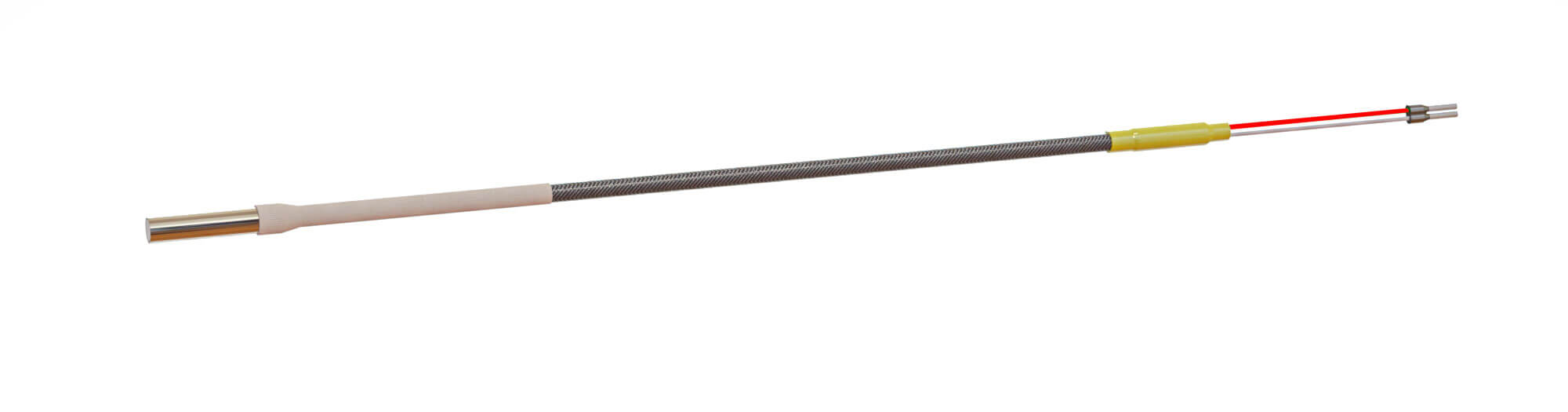

PWF 70 plug-in sensor

Please find following our standard leads for PWF 70 Resistance sensors listed. Others are available on request.

part# cross section temperature range outer diameter
1201354 2x0.35 mm²
Cu-nickel plated
-50 °C up to +260 °C 4.6 x 2.8 mm
1201352 2x0.38 mm²
Cu-nickel plated
-50 °C up to +260 °C 3.45 x 1.95 mm
1340642 3x0.25 mm²
Cu-tinned
-60 °C up to +260 °C 3.40 ±0.15 mm
1307789 4x0.22 mm²
Cu-tinned
-50 °C up to +350 °C 4.00 ±0.15 mm
1300580 4x0.22 mm²
Cu-tinned
-90 °C up to +260 °C 3.50 ±0.10 mm



    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    2-pin plug T3260 part# 1201415



    4-pin plug T3200 part# 1103624
      socket T3301 part# 1200723

    Round plugs with screw connection

    3-pin plug T3079 part# 1103631
      socket T3080 part# 1200749





    5-pin plug T3260 part# 1103635
      socket T3084 part# 1200750



    Round plugs with bayonet connection

    3-pin plug T3008 part# 1103627





    5-pin plug T3012 part# 1119173



    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
