screw-in sensors

PWF 104

APPLICATIONS

Screw-in resistance sensors are ideal for surface measuring. They are screwed directly into the component and are available with various thread sizes. The PWF 104 is a right-angle exit screw-in sensor. The sensor tip is Ø 6.5 x 4 mm with plane measuring surface and total length of 20 mm. The nipple has a 5 mm long M8x1 thread with a total length of 12 mm and a key size of 10 mm. A 60 mm long fiberglass hose is used as anti-kink protection.  Standard leads are galvanized copper wires with PFA- and fiberglass insulation covered with stainless steel protection metal braid.

  • Pt100 gauge slide as per
    DIN EN 60751 – class B
  • two-wire circuit as standard design
  • operating temperature: up to 260 °C
  • isolated
  • sensor tip: Ø 6.5 x 4 mm – plane
  • M8x1 screw-in nipple – key size 10 mm
  • up to 260°C
    operating temperature
  • Ø 6.5 x 4 mm
    sensor tip - plane
  • M8 x 1
    screw-in nipple

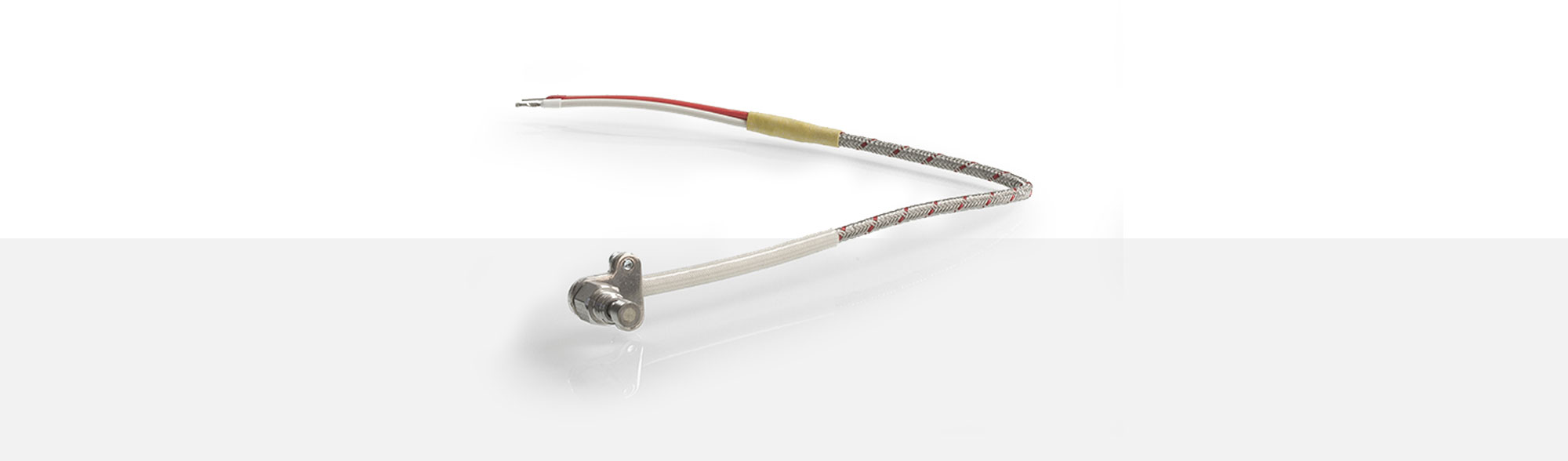

PWF 104 Screw-in sensor

Please find following our standard leads for PWF 104 Resistance Sensors listed. Others are available on request.

part# cross section temperature range outer diameter
1308376 2x0.22 mm²
Cu-tinned
-50 °C up to +350 °C 3.50 ±0.15 mm
1201354 2x0.35 mm²
Cu-nickel plated
-50 °C up to +260 °C 4.6 x 2.8 mm
1201352 2x0.38 mm²
Cu-nickel plated
-50 °C up to +260 °C 3.45 x 1.95 mm

    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    3-pin plug T3260 part# 1201415
      socket T3261 part# 1200722



    4-pin plug T3300 part# 1103624
      socket T3301 part# 1200723

    Round plugs with screw connection

    3-pin plug T3079 part# 1103631
      socket T3080 part# 1200749





    5-pin plug T3083 part# 1103635
      socket T3084 part# 1200750



    Round plugs with bayonet connection

    3-pin plug T3008 part# 1103627





    5-pin plug T3012 part# 1119173



    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
