screw-in sensors

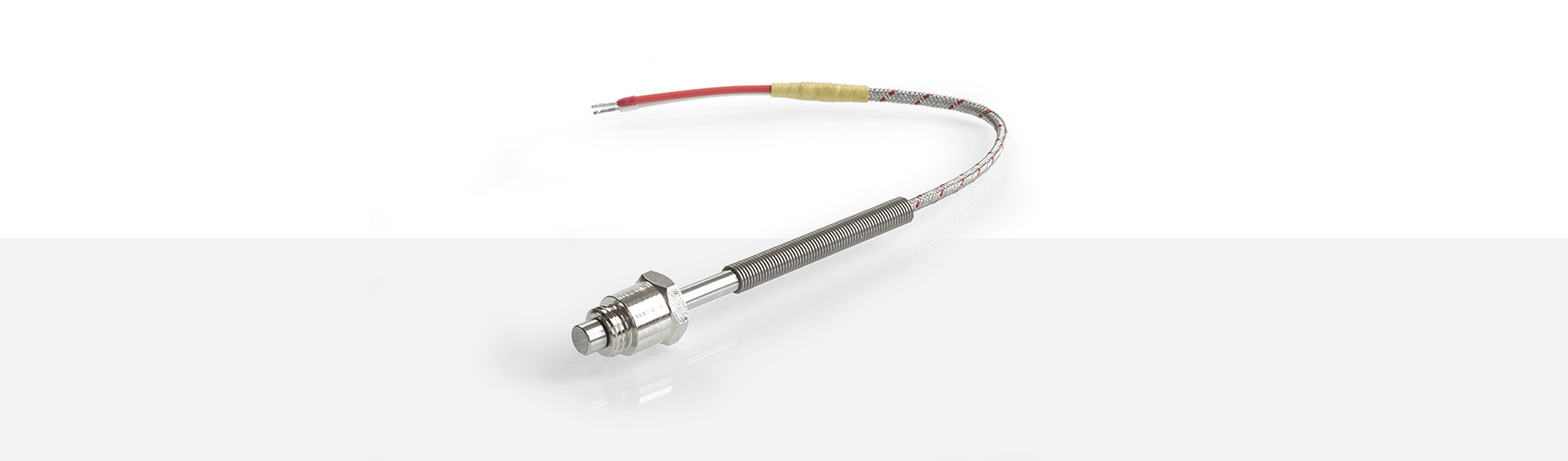

PWF 60

APPLICATIONS

Screw-in resistance sensors are ideal for surface measuring. They are screwed directly into the component and are available with various thread sizes. The PWF 60 can be assembled without cable twisting. The loose G ¼” with 17 mm key size screw-in nipple is screwed into the thread hole and presses the plane sensor tip on to the component. The passage from sensor to compensating wire is conical strain relieved. An Ø 8 x 65 mm spring is used as anti-kink protection. Standard leads are galvanized copper wires with PFA- and fiberglass insulation and covered by fiberglass and steel metal braid.

  • Pt100 gauge slide as per
    DIN EN 60751 – class B
  • two-wire circuit as standard design
  • operating temperature: up to 260 °C
  • isolated
  • sensor tip: Ø 8 x 5 mm - plane
  • screw-in nipple with G ¼” thread
  • up to 260°C
    operating temperature
  • Ø 8 x 5 mm
    sensor tip - plane
  • G 1/4"
    screw-in thread

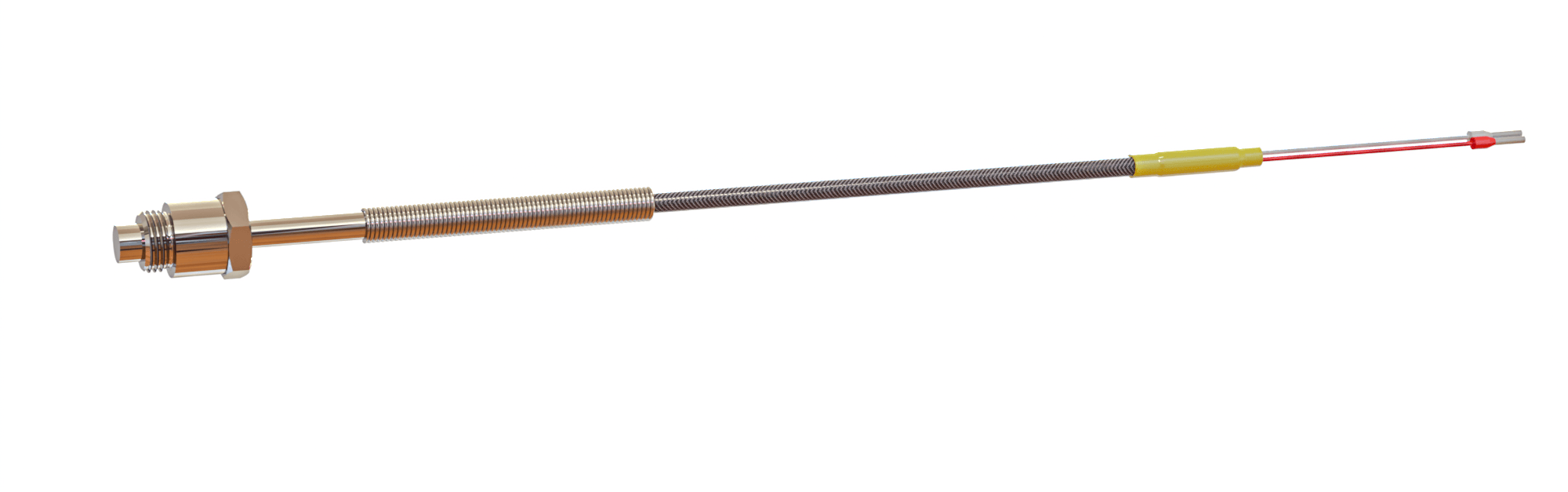

PWF 60 Screw-in sensor

Please find following our standard leads for PWF 60 Resistance Sensors listed. Others are available on request.

part# cross section temperature range outer diameter
1298296 2x0.22 mm²
Cu-tinned
-50 °C up to +260 °C 3.80 ±0.05 mm
1201354 2x0.35 mm²
Cu-nickel plated
-50 °C up to +260 °C 4.6 x 2.8 mm
1340642 3x0.25 mm²
Cu-tinned
-60 °C up to +260 °C 3.40 ±0.15 mm
1307789 4x0.22 mm²
Cu-tinned
-50 °C up to +350 °C 4.00 ±0.15 mm
1307865 4x0.25 mm²
Cu-tinned
-25 °C up to +180 °C 4.50 ±0.15 mm



    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    2-pin plug T3260 part# 1201415



    4-pin plug T3200 part# 1103624
      socket T3301 part# 1200723

    Round plugs with screw connection

    3-pin plug T3079 part# 1103631
      socket T3080 part# 1200749





    5-pin plug T3260 part# 1103635
      socket T3084 part# 1200750



    Round plugs with bayonet connection

    3-pin plug T3008 part# 1103627





    5-pin plug T3012 part# 1119173



    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
