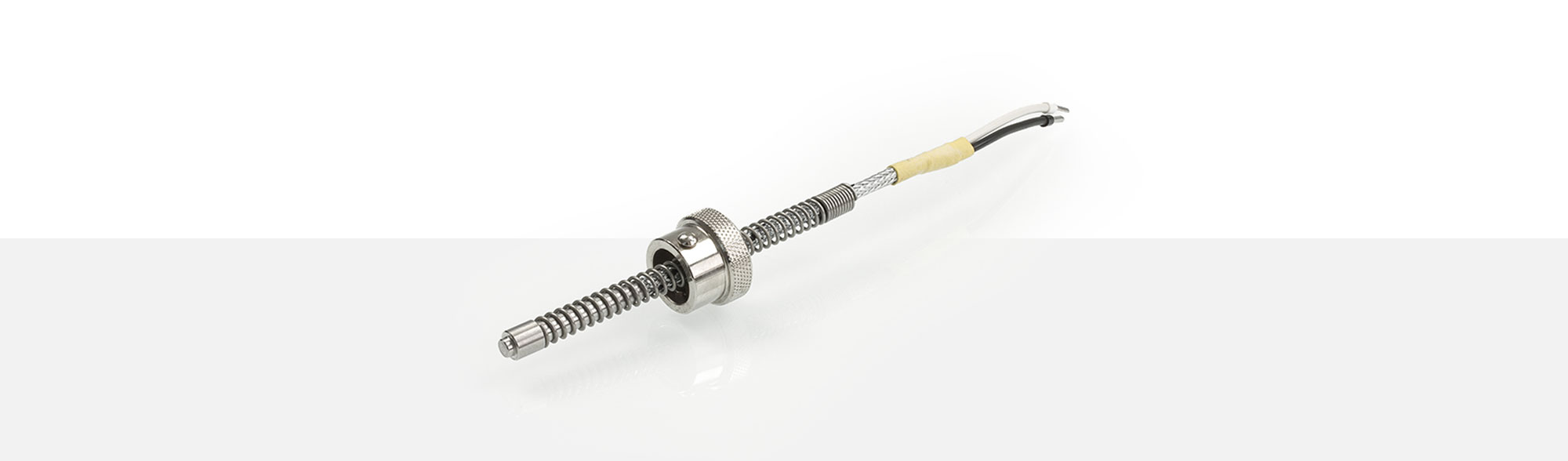

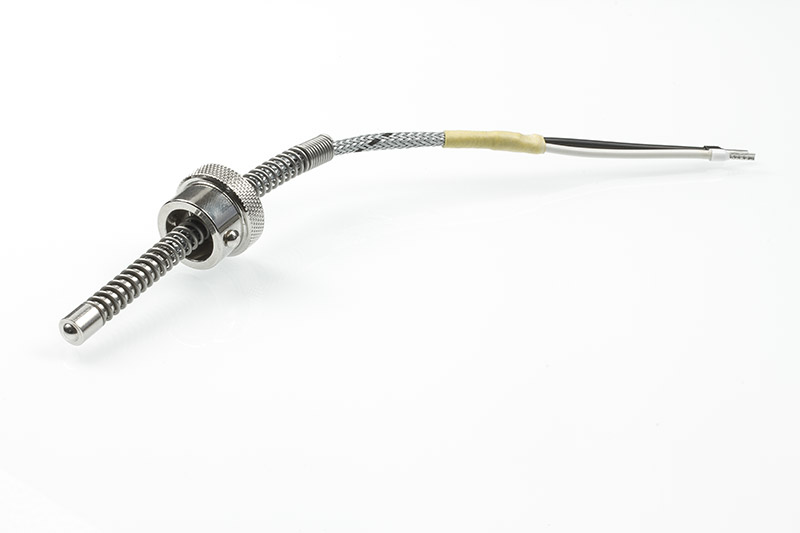

BAYONET SENSOR

TEF 11

APPLICATIONS

Insertion sensors with bayonet cap are mainly used in moulds and tools of the polymer processing industry. With the 110 ° sensor tip the sensor is matching to the sensor hole. The 5 x 200 mm standard spring out of 1.4310 guarantees a perfect fitting on to the sensor tip. The cap has an 8 mm spring thread. With throwing the bayonet cap the insertion length can be changed. The ID of the bayonet cap is 15 mm and the pins are between 13 mm. Leads are out of fiberglass insulated cores with protection meshing and galvanized steel wires.

  • operating temperature: up to 400 °C
  • sensor tip:
    Ø 5 / 8 x 2 / 8 mm - plane
  • isolated or non-isolated
  • single or double element
  • pinned bayonet cap
  • up to 400°C
    operating temperature
  • Ø 5/8x2/8 mm
    sensor tip -plane
  • pin spacing 13 mm
    pinned bayonet cap

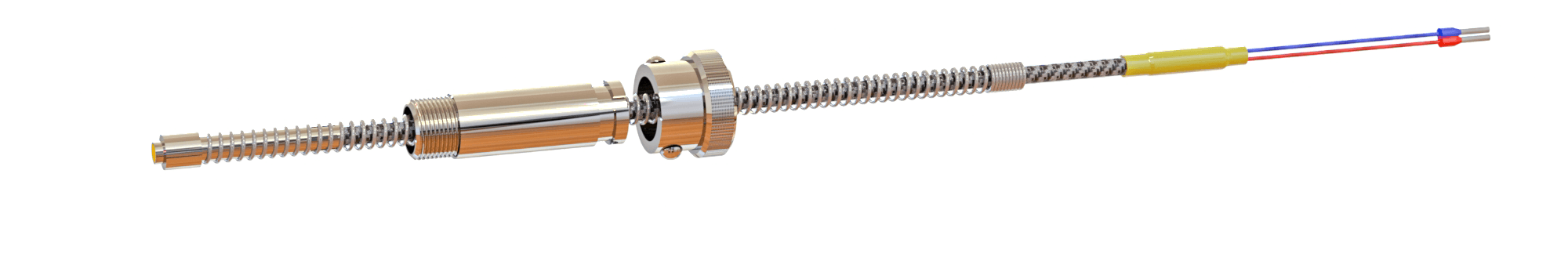

TEF 11 Bayonet Sensor

Please find following our standard thermo and compensating wires for TEF 11 thermocouples listed. Others are available on request.

Fe-CuNi type L

part# cross section temperature range outer diameter
1200456 4x0,22 mm² -50 °C up to +400 °C 3,80 mm max.
1200464 2x1,00 mm² -50 °C up to +400 °C approx. 4,50 mm
1200465 2x1,00 mm² -50 °C up to +400 °C approx. 4,50 mm
1256523 2x1,00 mm² -50°C up to +500 °C approx. 4,50 x 2,60 mm
2239027 2x1,00 mm² -90°C up to +650 °C approx. 5,00 x 3,20 mm



Fe-CuNi type J

part# cross section temperature range outer dimameter
1229818 4x0,22 mm² -50 °C up to +400 °C approx. 3,60 mm
1201349 2x1,00 mm² -50 °C up to +400 °C 4,60 mm max.



NiCr-Ni type K

part# cross section temperature range outer diameter
1298584 4x0,22 mm² -50 °C up to +400 °C 4,00 mm max.
1200473 2x1,00 mm² -50 °C up to +400 °C approx. 4,50 mm

N11 Screw-in nipple



N11 M14 x 1,5 x 25 mm

screw-in nipple

part# 1302965
thread M14 x 1,5
thread length 10 mm
total length 25 mm
shaft length 15 mm
internal diameter 11 mm
material nickel plated
steel
furrow for pins Ø 13 x 3,5 mm

N11 M14 x 1,5 x 50 mm

screw-in nipple

part# 1204424
thread M14 x 1,5
thread length 10 mm
total length 50 mm
shaft diameter 15 mm
internal diameter 11 mm
material nickle plated
steel
furrow for pins Ø 13 x 3,5 mm

N11 M14 x 1,5 x 100 mm

screw-in nipple

part# 1205906
thread M14 x 1,5
thread length 10 mm
total length 100 mm
shaft diamter 15 mm
internal diameter 11 mm
material nickel plated
steel
furrow for pins Ø 13 x 3,5 mm

Design examples

    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    2-pin plug T3260 part# 1201415



    4-pin plug T3200 part# 1103624
      socket T3301 part# 1200723

    Round plugs with screw connection

    3-pin plug T3079 part# 1103631
      socket T3080 part# 1200749





    5-pin plug T3260 part# 1103635
      socket T3084 part# 1200750



    Round plugs with bayonet connection

    3-pin plug T3008 part# 1103627





    5-pin plug T3012 part# 1119173



    Thermocouple plug connectors

    J type plug A9.1 part# 1107127
      socket A10.1 part# 1107128
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299





    K type plug A9.2 part# 1209136
      socket A10.2 part# 1209141
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299

    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
