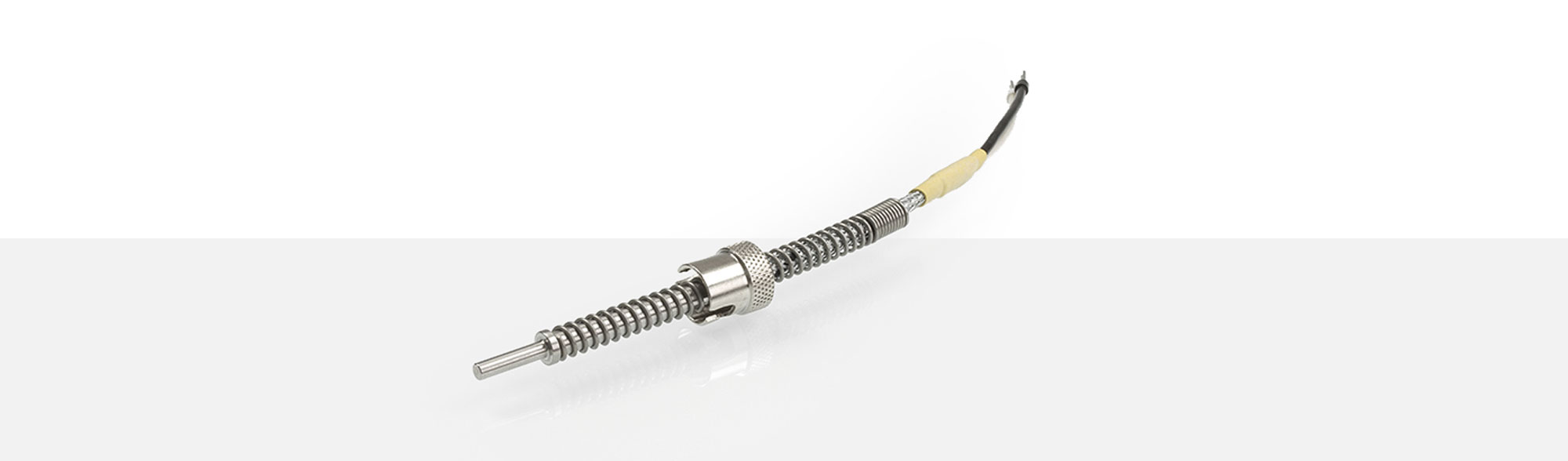

BAYONET CAP

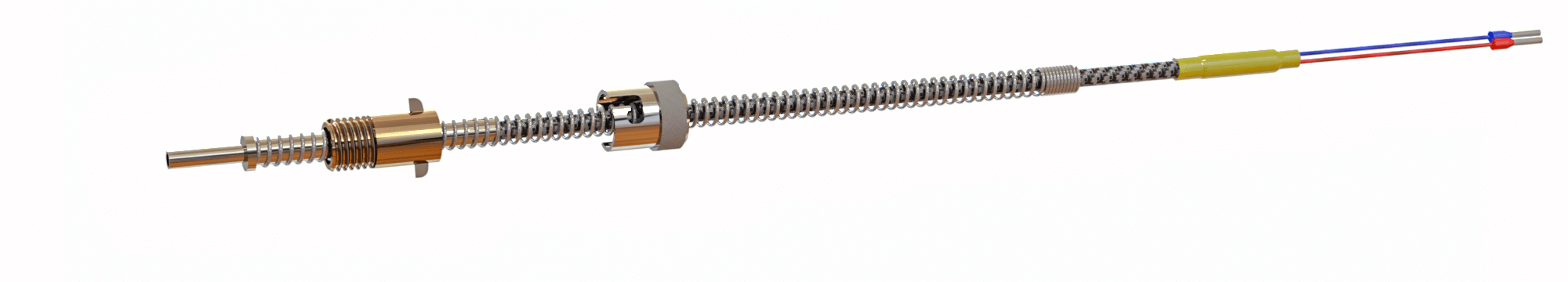

Insertion sensors with bayonet cap are mainly used in moulds and tools of the polymer processing industry. With the 110° sensor tip the sensor is matching to the sensor hole. The 200 mm standard spring out of 1.4310 guarantees a perfect fitting on to the sensor tip. The cap has an 8 mm spring thread. With throwing the bayonet cap the insertion length can be changed. The ID of the bayonet cap is 12.3 mm. Leads are out of fiberglass insulated cores with protection meshing and galvanized steel wires.
Miniature - round plugs with screw connection
| 3-pin | plug | T3260 | part# 1201415 |
| socket | T3261 | part# 1200722 |
| 4-pin | plug | T3300 | part# 1103624 |
| socket | T3301 | part# 1200723 |
Thermocouple plug connectors
| J type | plug | A9.1 | part# 1107127 |
| socket | A10.1 | part# 1107128 | |
| with cross section | 2x0,50 mm² | part# 1349300 |
| K type | plug | A9.2 | part# 1209136 |
| socket | A10.2 | part# 1134620 | |
| with cross section | 2x0,50 mm² | part# 1349300 |
Miniature plug connectors
| Lemo | cable Ø max. in mm | ||||
| sizes | 0S | 1S | 2S | 3S | |
| standard socket | 3,7 | 4,2 | 4,2 | 4,2 | |
| fitting socket | |||||
| standard plug | 3,7 | 4,2 | 4,2 | 4,2 |
Please find following our standard thermo and compensating wires for TEF 95 thermocouples listed. Others are available on request.
Fe-CuNi type L
| part# | cross section | temperature range | outer diameter |
| 1200456 | 4x0,22 mm² | -50 °C up to +400 °C | 3,80 mm max. |
| 1200464 | 2x1,00 mm² | -50 °C up to +400 °C | approx. 4,50 mm |
| 1200465 | 2x1,00 mm² | -50 °C up to +400 °C | approx. 4,50 mm |
| 1256523 | 2x1,00 mm² | -50°C up to +400 °C | approx. 4,50 x 2,60 mm |
| 2239027 | 2x1,00 mm² | -50°C up to +400 °C | approx. 5,00 x 3,20 mm |
Screw-in nipples

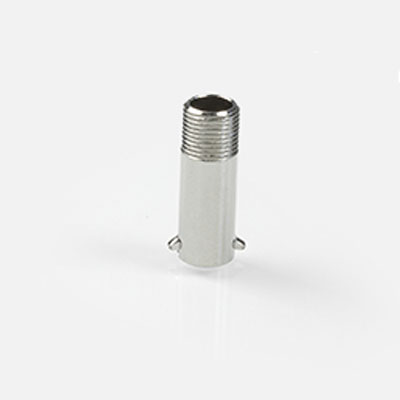

screw-in nipple N20/21
M12 x 1 x 35 mm
| part# | 1204426 |
| thread | M12 x 1 |
| thread length | 10 mm |
| total length | 35 mm |
| shaft diameter | 12 mm |
| internal diameter | 9 mm |
| material | nickel plated steel |
| pulled pins | 2 |

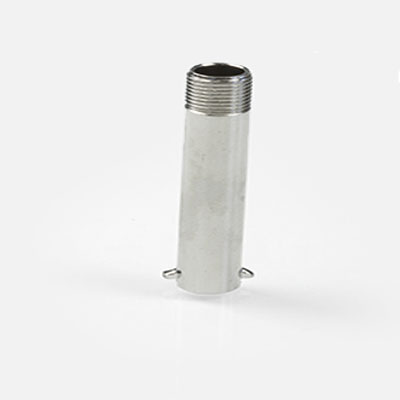

screw-in nipple N30
M12 x 1 x 60 mm
| part# | 1204420 |
| thread | M12 x 1 |
| thread length | 10 mm |
| total length | 60 mm |
| shaft diamter | 12 mm |
| internal diameter | 9 mm |
| material | nickel plated steel |
| pulled pins | 2 |

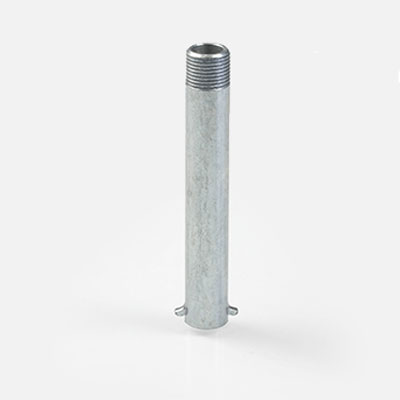

screw-in nipple N30
M12 x 1 x 80 mm
| part# | 1314889 |
| thread | M12 x 1 |
| thread length | 10 mm |
| total length | 80 mm |
| shaft diameter | 12 mm |
| internal diameter | 9 mm |
| material | nickel plated steel |
| pulled pins | 2 |
