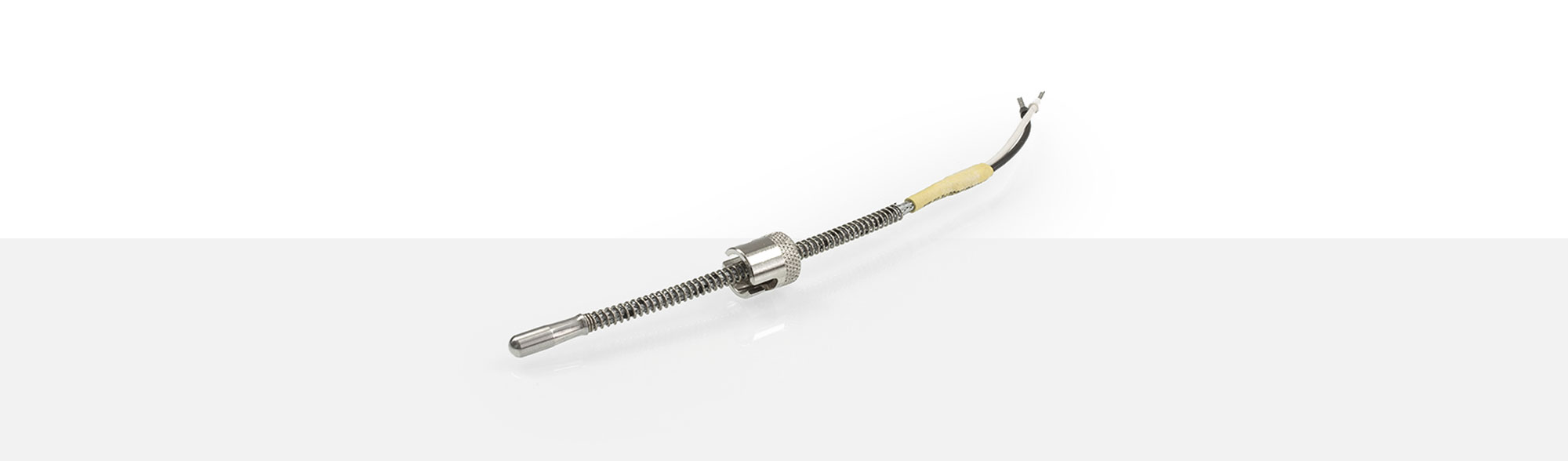

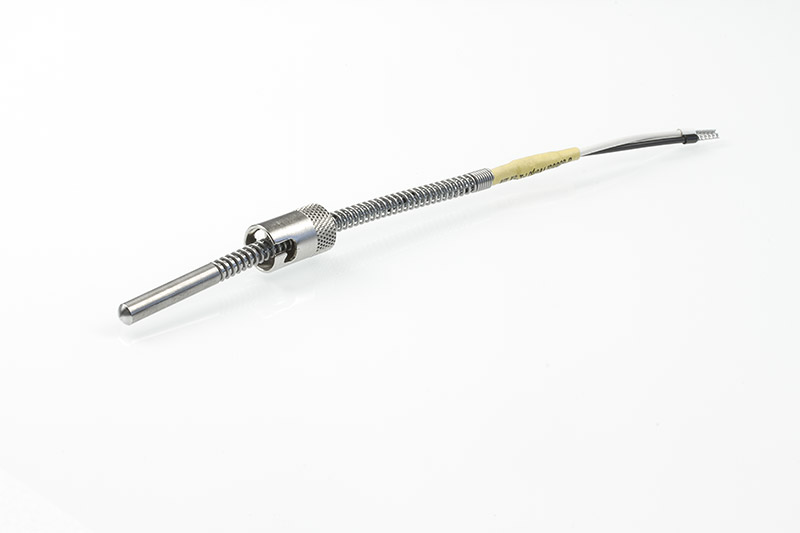

BAYONET SENSOR

TEF 6

APPLICATIONS

Insertion sensors with bayonet cap are mainly used in moulds and tools of the polymer processing industry. With the 110 ° sensor tip the sensor is matching to the sensor hole. The 5 x 200 mm standard spring out of 1.4310 guarantees a perfect fitting on to the sensor tip. The cap has a 5 mm spring thread. With throwing the bayonet cap the insertion length can be changed. The ID of the bayonet cap is 10.5 mm and has a wall thickness of 1.75 mm. Leads are out of fiberglass insulated cores with protection meshing and galvanized steel wires.

  • operating temperature: up to 400 °C
  • sensor tip:
    Ø 6 x 20 mm - round
  • isolated or non-isolated
  • single or double element
  • bayonet cap with enforced design
    IØ 10.5 mm – OØ 14 x 16 mm
    (brass nickel plated)
  • up to 400°C
    operating temperature
  • Ø 6 x 20 mm
    sensor tip - round
  • internal-Ø 10.5 mm
    bayonet cap

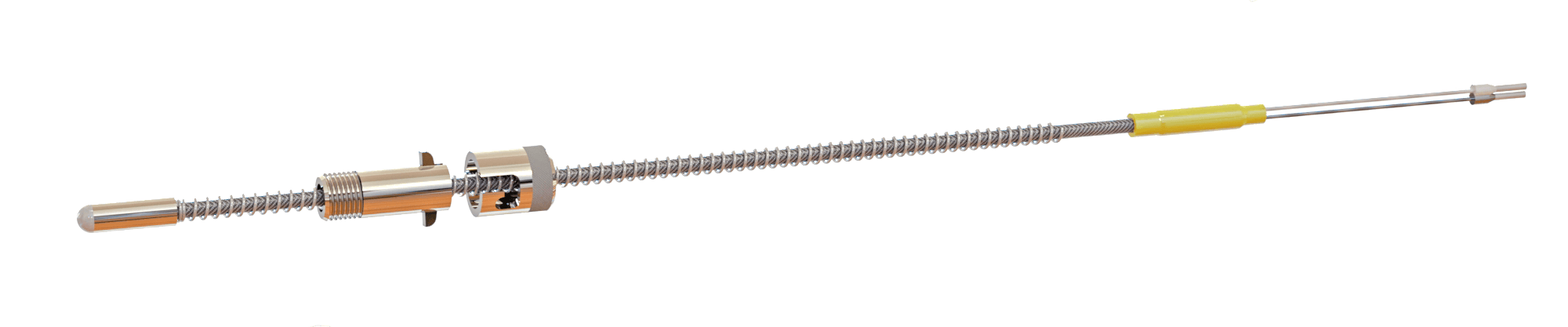

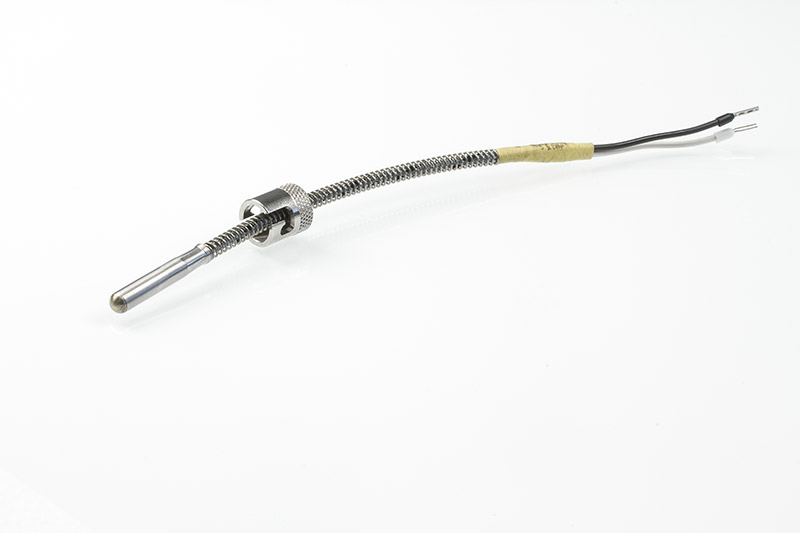

TEF 6 Bayonet Sensor

Please find following our standard thermo and compensating wires for TEF 6 thermocouples listed. Others are available on request.

Fe-CuNi type L

part# cross section temperature range outer diameter
1200455 2x0,22 mm² -50 °C up to +400 °C approx. 3,40 mm
1200456 4x0,22 mm² -50 °C up to +400 °C 3,8 mm max.



Fe-CuNi type J

part# cross section temperature range outer diameter
1229818 4x0,22 mm² -50 °C up to +400 °C approx. 3,60 mm
2051568 2x0,35 mm² -50 °C up to +400 °C approx. 3,40 mm

NiCr-Ni type K

part# cross section temperature range outer diameter
1298584 4x0,22 mm² -50 °C up to +400 °C 4,00 mm max.
1200471 2x0,50 mm² -50 °C up to +400 °C approx. 3,50 mm



    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    3-pin plug T3260 part# 1201415
      socket T3261 part# 1200722



    4-pin plug T3300 part# 1103624
      socket T3301 part# 1200723

    Round plugs with screw connection

    3-pin plug T3079 part# 1103631
      socket T3080 part# 1200749





    5-pin plug T3083 part# 1103635
      socket T3084 part# 1200750



    Round plugs with bayonet connection

    3-pin plug T3008 part# 1103627





    5-pin plug T3012 part# 1119173



    Thermocouple plug connectors

    J type plug A9.1 part# 1107127
      socket A10.1 part# 1107128
      with cross section 2x0,50 mm² part# 1349300





    K type plug A9.2 part# 1209136
      socket A10.2 part# 1134620
      with cross section 2x0,50 mm² part# 1349300

    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2

    N5/N6 Screw-in nipple

    N5/N6 M10 x 1 x 28 mm

    screw-in nipple

    part# 2110750
    thread M10 x 1
    thread length 10 mm
    total length 28 mm
    diameter 14
    shaft diameter 10,3 mm
    internal diameter 6,3 mm
    material nickel plated
    steel
    pulled pins 2

    N5/6 M10 x 28 mm

    screw-in nipple

    part# 2110749
    thread M10
    thread length 10 mm
    total length 28 mm
    diamter 14
    shaft diameter 10,3 mm
    internal diameter 6,3 mm
    material nickel plated
    steel
    pulled pins 2

    N5/N6 M12 x 28 mm

    screw-in nipple

    part# 2110753
    thread M12
    thread length 10 mm
    total length 28 mm
    diameter 14
    shaft diameter 10,3 mm
    internal diameter 6,3 mm
    material nickel plated
    steel
    pulled pins 2

    N5/N6 M12 x 1 x 28 mm

    screw-in nipple

    part# 2110754
    thread M12 x 1
    thread length 10 mm
    total length 28 mm
    diameter 14
    shaft diameter 10,3 mm
    internal diameter 6,3 mm
    material nickel plated
    steel
    pulled pins 2

    N5/N6 M14 x 28

    screw-in nipple

    part# 2110751
    thread M14
    thread length 10 mm
    total length 28 mm
    diamter 14
    shaft diameter 10,3 mm
    internal diameter 6,3 mm
    material nickel plated
    steel
    pulled pins 2

    N5/N6 M14 x 1,5 x 28 mm

    screw-in nipple

    part# 2110752
    thread M14 x 1,5
    thread length 10 mm
    total length 28 mm
    key size 14
    shaft diameter 10,3 mm
    internal diameter 6,3 mm
    material nickel plated
    steel
    pulled pins 2

    N5/N6 G 1/4" x 28 mm

    screw-in nipple

    part# 2110756
    thread G 1/4"
    thread length 10 mm
    total length 28 mm
    diameter 14
    shaft diameter 10,3 mm
    internal diameter 6,3 mm
    material nickel plated
    steel
    pulled pins 2

    N5/N6 1/8-NPT x 28 mm

    screw-in nipple

    part# 2110748
    thread 1/8-NPT-27
    thread length 10 mm
    total length 28 mm
    diameter 14
    shaft diameter 10,3 mm
    internal diameter 6,3 mm
    material nickel plated
    steel
    pulled pins 2

    N5/N6 G 3/8" x 28 mm

    screw-in nipple

    part# 2110755
    thread G 3/8"
    thread length 10 mm
    total length 28 mm
    diameter 18
    shaft diameter 10,3 mm
    internal diamter 6,3 mm
    material nickel plated
    steel
    pulled pins 2
