BAYONET SENSOR

TEF 20

APPLICATIONS

Insertion sensors with bayonet cap are mainly used in moulds and tools of the polymer processing industry. With the 110 ° sensor tip the sensor is matching to the sensor hole. The TEF 20 has a Ø 7 x 35 mm spring which guarantees a perfect fitting on to the sensor tip. With throwing the bayonet cap the insertion length can be changed. The ID of the bayonet cap is 12.3 mm. Ø 8 x 65 mm is the standard anti-kink protection spring.

  • operating temperature: up to 400 °C
  • sensor tip:
    Ø 4 / 5 x 6 / 25 mm – plane
  • isolated or non-isolated
  • as single or double element
  • IØ 12.3 bayonet cap
  • up to 400°C
    operating temperature
  • Ø 4/5 x 6/25 mm
    sensor tip - plane
  • internal-Ø 12.3 mm
    bayonet cap

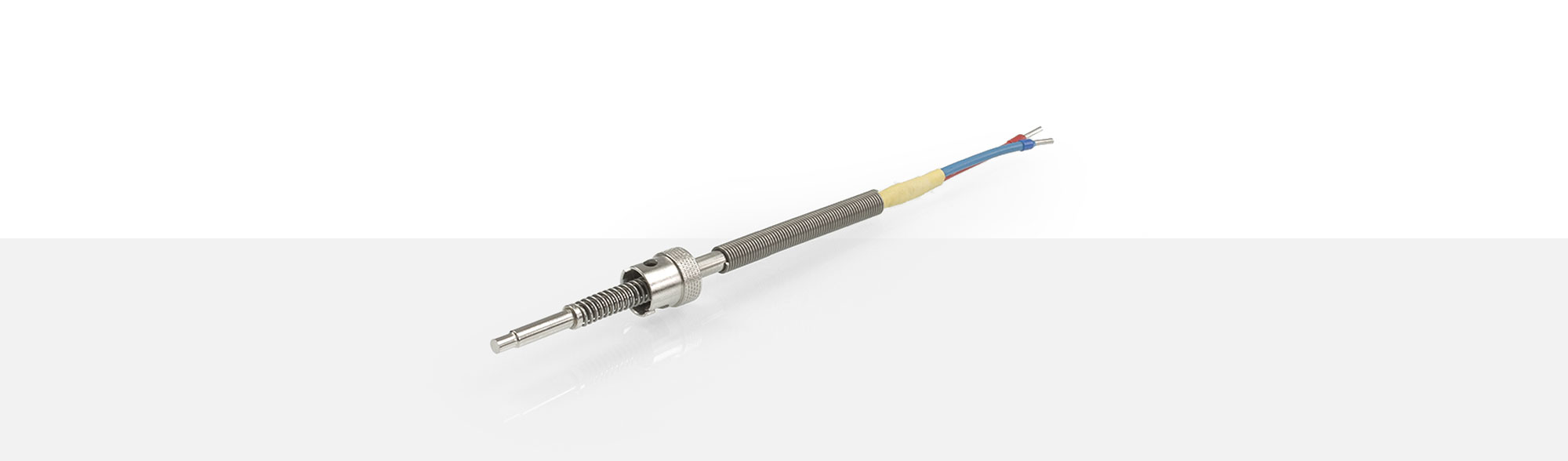

TEF 20 Bayonet Sensor

Please find following our standard thermo and compensating wires for TEF 20 thermocouples listed. Others are available on request.

Fe-CuNi type L

part# cross section temperature range outer diameter
1307289 2x0,22 mm² -40 °C up to +180 °C 4,00 mm ± 0,10 mm
1200456 4x0,22 mm² -50 °C up to +400 °C 3,80 mm max.
1200464 2x1,00 mm² -50 °C up to +400 °C approx. 4,50 mm
1200465 2x1,00 mm² -50 °C up to +400 °C approx. 4,50 mm
1256523 2x1,00 mm² -50°C up to +500 °C approx. 4,50 x 2,60 mm
2239027 2x1,00 mm² -90°C up to +650 °C approx. 5,00 x 3,20 mm



Fe-CuNi type J

part# cross section temperature range outer diameter
1229818 4x0,22 mm² -50 °C up to +400 °C approx. 3,60 mm
1231037 2x0,50 mm² -50 °C up to +400 °C approx. 3,90 mm
1201349 2x1,00 mm² -50 °C up to +400 °C 4,60 mm max.

NiCr-Ni type K

part# cross section temperature range outer diamter
1298584 4x0,22 mm² -50 °C up to +400 °C 4,00 mm max.
1200473 2x1,00 mm² -50 °C up to +400 °C approx. 4,50 mm

    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    3-pin plug T3260 part# 1201415
      socket T3261 part# 1200722



    4-pin plug T3200 part# 1103624
      socket T3301 part# 1200723

    Round plugs with screw connection

    3-pin plug T3079 part# 1103631
      socket T3080 part# 1200749





    5-pin plug T3260 part# 1103635
      socket T3084 part# 1200750



    Round plugs with bayonet connection

    3-pin plug T3008 part# 1103627





    5-pin plug T3012 part# 1119173



    Thermocouple plug connectors

    J type plug A9.1 part# 1107127
      socket A10.1 part# 1107128
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299





    K type plug A9.2 part# 1209136
      socket A10.2 part# 1209141
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299

    Duplex - Thermocouple plug connectors

    J type duplex plug   part# 1209139
      duplex socket   part# 1209144
      strain relief 2x1,00 mm² part# 1349298
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299





    K type duplex plug   part# 2105264
      duplex socket   part# 1302891
      strain relief 2x1,00 mm² part# 1349298
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299

    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2

    Screw-in nipples

    N20/21 M12 x 1 x 35 mm

    screw-in nipple

    part# 1204426
    thread M12 x 1
    thread length 10 mm
    total length 35 mm
    shaft diameter 12 mm
    internal diameter 9 mm
    material nickel plated
    steel
    pulled pins 2

    N30 M12 x 1 x 60 mm

    screw-in nipple

    part# 1204420
    thread M12 x 1
    thread length 10 mm
    total length 60 mm
    shaft diameter 12 mm
    internal diameter 9 mm
    material nickel plated
    steel
    pulled pins 2

    N30 M12 x 1 x 80 mm

    screw-in nipple

    part# 1314889
    thread M12 x 1
    thread length 10 mm
    total length 80 mm
    shaft diameter 12 mm
    internal diameter 9 mm
    material nickel plated
    steel
    pulled pins 2
