BAYONET SENSOR

TEF 16

APPLICATION

Insertion sensors with bayonet cap are mainly used in moulds and tools of the polymer processing industry. With the 110 ° sensor tip the sensor is matching to the sensor hole. The 200 mm standard spring out of 1.4310 guarantees a perfect fitting on to the sensor tip. The cap has a 8 mm or 6 mm spring thread. With throwing the bayonet cap the insertion length can be changed. The ID of the bayonet cap is 12.3 mm. Leads are out of fiberglass insulated cores with protection meshing and galvanized steel wires.

  • the most common used sensor
  • operating temperature: up to 400 °C

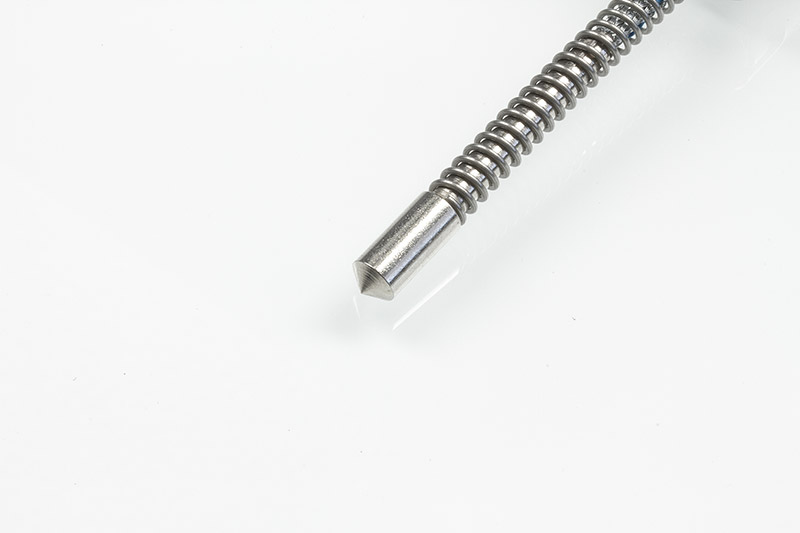

  • sensor tip:
    Ø 8 x 12 mm – 110 °
    Ø 6 x 12 mm – 110 °
  • isolated or non-isolated
  • as single or double element
  • up to 400°C
    operating temperature
  • internal-Ø 12.3 mm
    bayonet cap
  • Ø 6 oder Ø 8 mm
    sensor tip - 110°

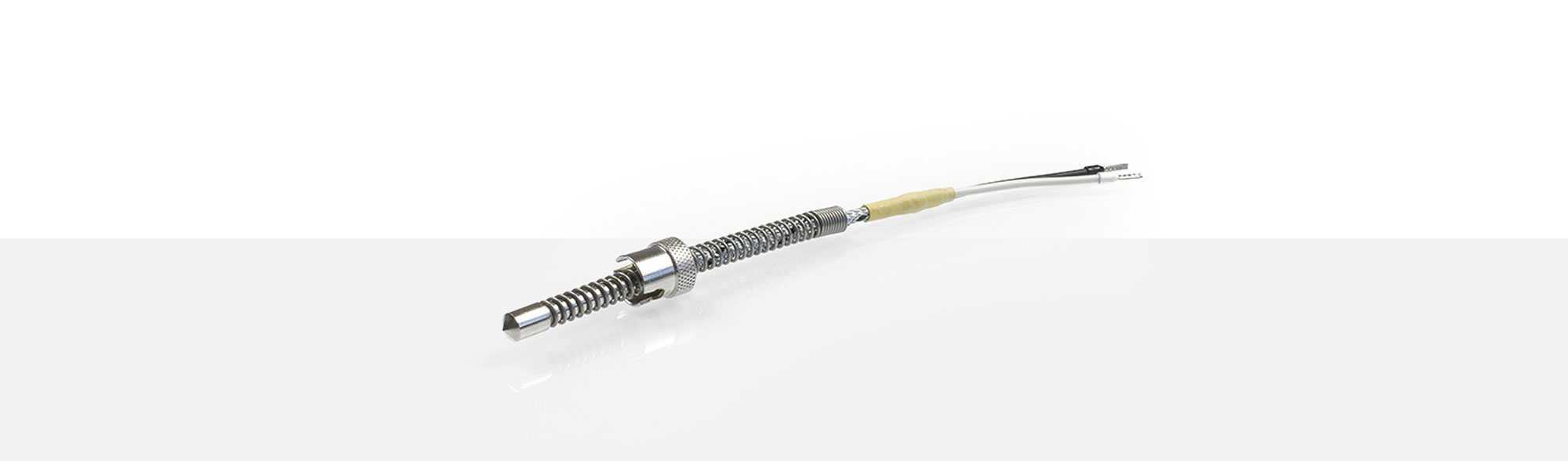

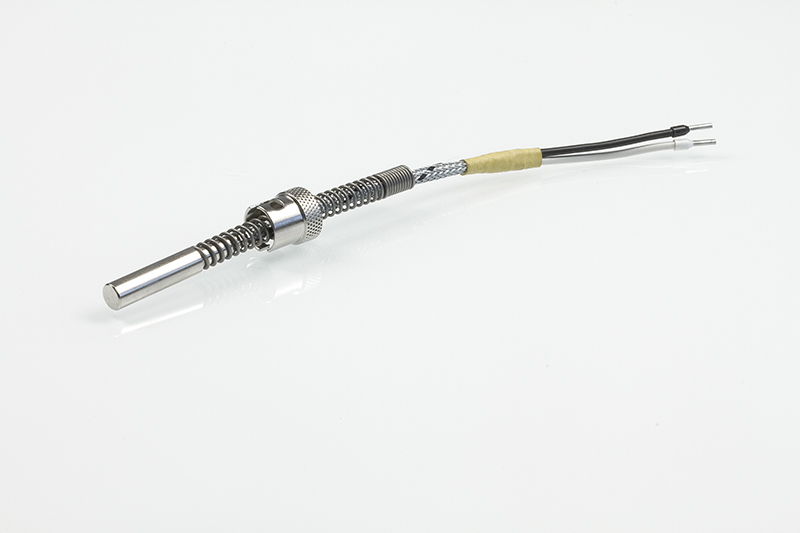

TEF 16 Bayonet Sensor

    Please find following our standard thermo and compensating wires for TEF 16 Ø 6 mm thermocouples listed. Others are available on request.

    Fe-CuNi type L

    part# cross section temperature range outer diameter
    2006830 2x0,22 mm² -100 °C bis +200 °C ca. 3,20 mm
    1200455 2x0,22 mm² -50 °C bis +400 °C ca. 3,40 mm
    1307289 2x0,22 mm² -40 °C bis +180 °C 4,00 mm ± 0,10 mm
    1200456 4x0,22 mm² -50 °C bis +400 °C max. 3,80 mm
    1200461 2x0,75 mm² -55 °C bis +180 °C 4,0 x 2,3 mm
    1200464 2x1,00 mm² -50 °C bis +400 °C ca. 4,50 mm
    1200465 2x1,00 mm² -50 °C bis +400 °C ca. 4,50 mm
    1256523 2x1,00 mm² -50 °C bis +500 °C ca. 4,50 x 2,60 mm
    2239027 2x1,00 mm² -90 °C bis +650 °C ca. 5,00 x 3,20 mm



    Fe-CuNi type J

    part# cross section temperature range outer diameter
    2100238 4x0,22 mm² -50 °C bis +200 °C 3,00 mm
    1229718 4x0,22 mm² -50 °C bis +400 °C ca. 3,60 mm
    1222528 2x0,35 mm² -50 °C bis +400 °C ca. 3,40 mm
    1201349 2x1,00 mm² -50 °C bis +500 °C max. 4,60 mm

    NiCr-Ni type K

    part# cross section temperature range outer diameter
    1320956 2x0,22 mm² +180 °C ca. 3,90 mm
    1298584 4x0,22 mm² -50 °C bis +400 °C max. 4,00 mm
    1200471 2x0,50 mm² -50 °C bis +400 °C ca. 3,50 mm
    1200473 2x1,00 mm² -50 °C bis +400 °C ca. 4,50 mm



    Please find following our standard thermo and compensating wires for TEF 16 Ø 8 mm thermocouples listed. Others are available on request.

    Fe-CuNi type L

    part# cross section temperature range outer diamter
    1307289 2x0,22 mm² -40 °C bis +180 °C 4,00 mm ± 0,10 mm
    1200456 4x0,22 mm² -50 °C bis +400 °C max. 3,80 mm
    1200464 2x1,00 mm² -50 °C bis +400 °C ca. 4,50 mm
    1200465 2x1,00 mm² -50 °C bis +400 °C ca. 4,50 mm
    1256523 2x1,00 mm² -50°C bis +500 °C ca. 4,50 x 2,60 mm
    2239027 2x1,00 mm² -90°C bis +650 °C ca. 5,00 x 3,20 mm

    Fe-CuNi type J

    part# cross section temperature range outer diamter
    1229818 4x0,22 mm² -50 °C bis +400 °C ca. 3,60 mm
    1201349 2x1,00 mm² -50 °C bis +400 °C max. 4,60 mm

    NiCr-Ni Typ K

    Artikel# Querschnitt Temp-Bereich Außendurchmesser
    1298584 4x0,22 mm² -50 °C bis +400 °C max. 4,00 mm
    1200473 2x1,00 mm² -50 °C bis +400 °C ca. 4,50 mm

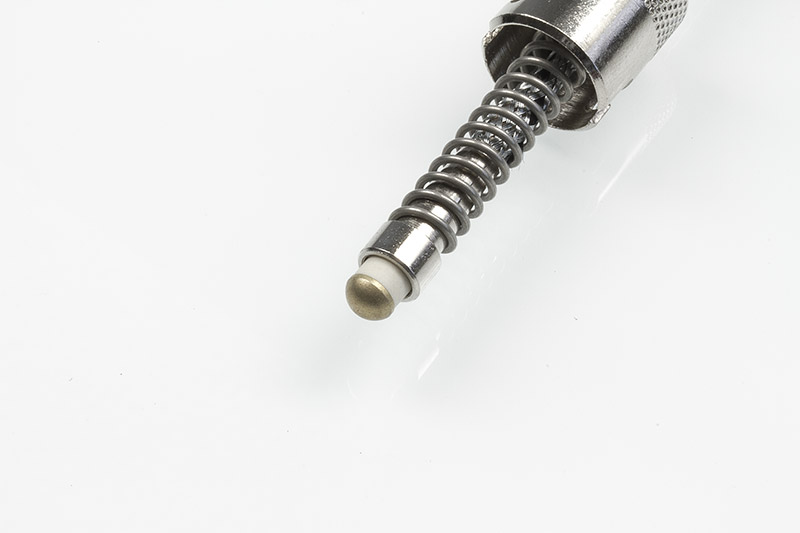

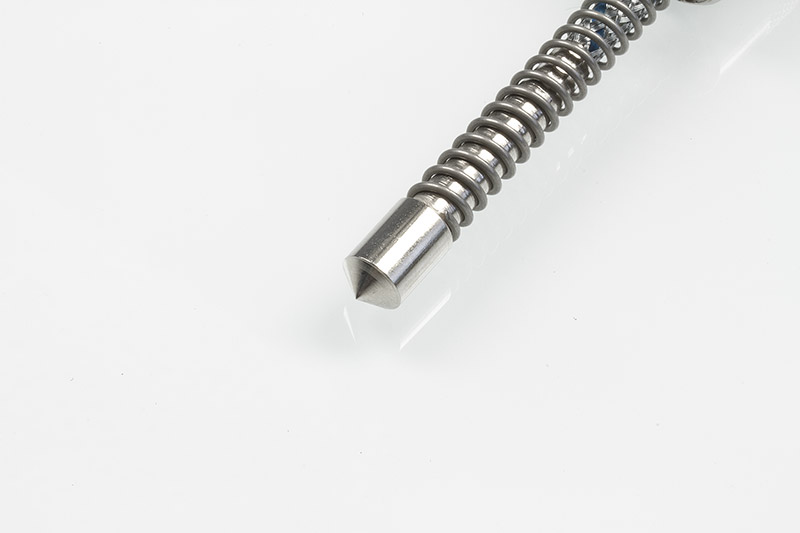

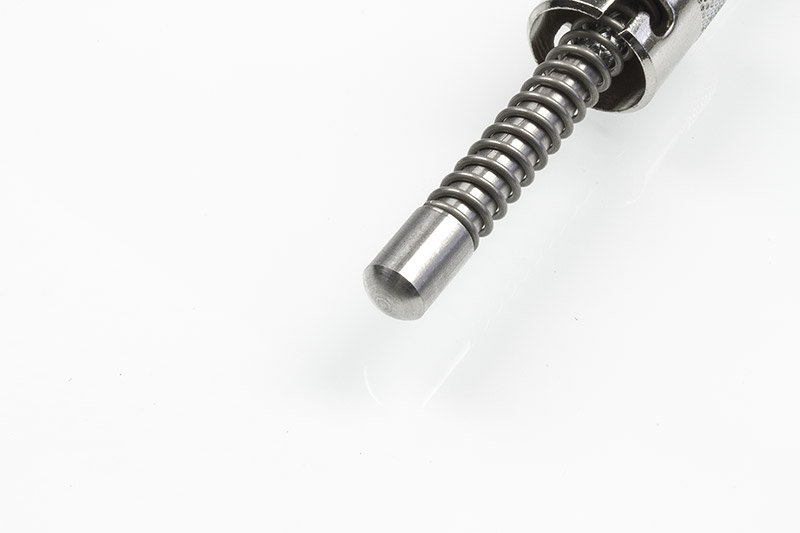

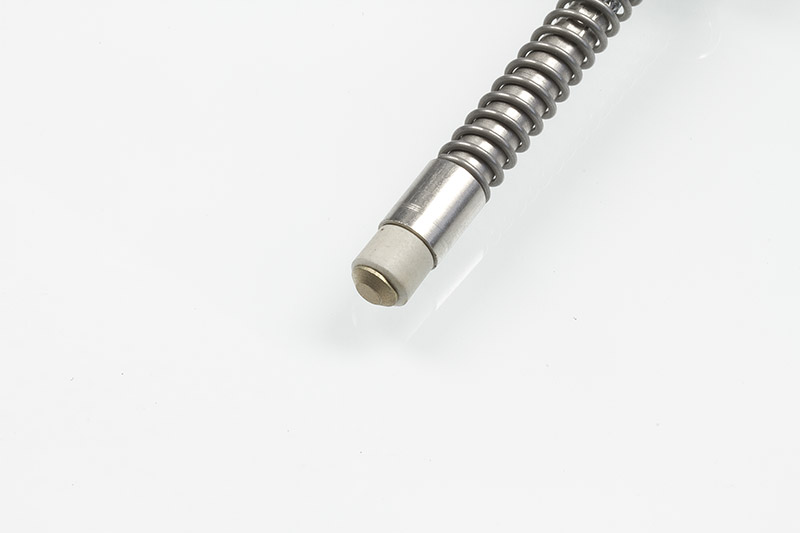

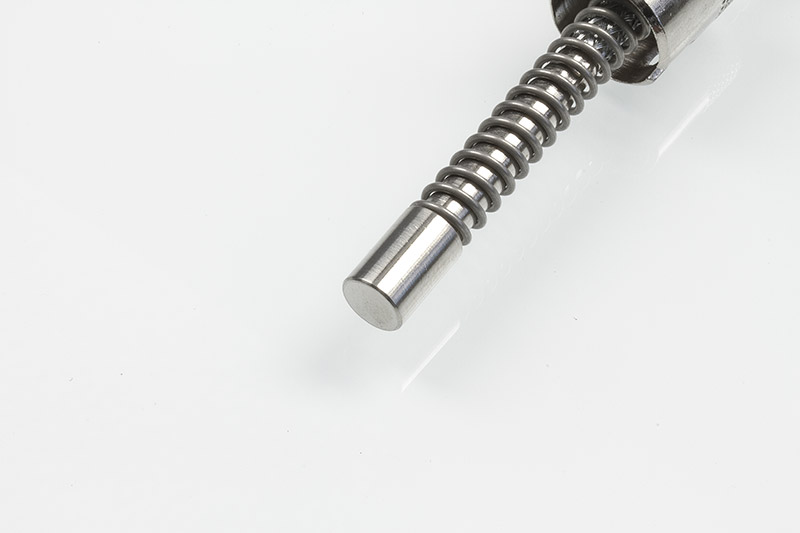

    sensor tips

      Miniature - round plugs with screw connection

      2-pin plug T3200 A# 1200716
        socket T3201 A# 1200721





      2-pin plug T3260 A# 1201415



      4-pin plug T3200 A# 1103624
        socket T3301 A# 1200723

      Round plugs with screw connection

      3-pin plug T3079 A# 1103631
        socket T3080 A# 1200749





      5-pin plug T3260 A# 1103635
        socket T3084 A# 1200750



      3-pin plug T3008 A# 1103627





      5-pin plug T3012 A# 1119173







      J type plug A9.2 A# 1107127
        socket A10.2 A# 1107128
        with cross section 2x0,50 mm² A# 1349300
          2x0,22 mm² A# 1349299

      Miniature - Thermocouple plug connectors

      J type mini plug A12.1 A# 1269361
        mini socket A13.1 A# 1269362
        ferrule 2x0,50 mm² A# 1269363





      J type mini plug A12.2 A# 1209147
        mini socket A13.2 A# 2104331
        ferrule   A# 1269363

      Miniature plug connectors

      Lemo cable Ø max. in mm
        sizes 0S 1S 2S 3S
        standard scoket 3,7 4,2 4,2 4,2
        fitting socket
        standard plug 3,7 4,2 4,2 4,2

      Screw-in protection sleeves

      Screw-in protection screws allow an assembly and disassembly of temperature sensors without system release.

      Screw-in protection sleeve

      material stainless steel
      1.4301
      thermocouples Ø 8 mm
      Ø 6 mm
      diameter Ø 12 mm
      Ø 10 mm
      internal borehole Ø 8,5 mm
      Ø 6,5 mm
      fitting depth
      (customer request)
      inclusive thread
      thread length 10 mm
      key size 24
      sensor screwing G 1/4"
      process connection G 3/8"
      G 1/2"
      M18x1,5
      M20x1,5

      Screw-in protection sleeve

      material brass
      MS58
      thermocouples Ø 8 mm
      Ø 6 mm
      diameter Ø 12 mm
      Ø 10 mm
      internal borehole Ø 8,5 mm
      Ø 6,5 mm
      fitting depth
      (customer request)
      inclusive thread
      thread length 10 mm
      key size 24
      sensor screwing G 1/4"
      process connection G 3/8"
      G 1/2"
      M18x1,5
      M20x1,5

      Screw-in nipples N16

      screw-in nipple N16

      M10 x 1 x 100 mm

      part# 1208009
      thread M10 x 1
      thread length 10 mm
      total length 25 mm
      shaft diameter 12 mm
      internal diameter   7 mm
      material nickel plated
      steel
      pulled pins           2

      screw-in nipple N16

      M12

      part# 1204425
      thread M12
      thread length 10 mm
      total length 25 mm
      shaft diameter 12 mm
      internal diameter 8,5 mm
      material nickel plated
      steel
      pulled pins            2

      screw-in nipple N16

      M12 x 1

      part# 1205027
      thread M12 x 1
      thread length 10 mm
      total length 25 mm
      shaft diameter 12 mm
      internal diamter 8,5 mm
      material nickel plated
      steel
      pulled pins           2

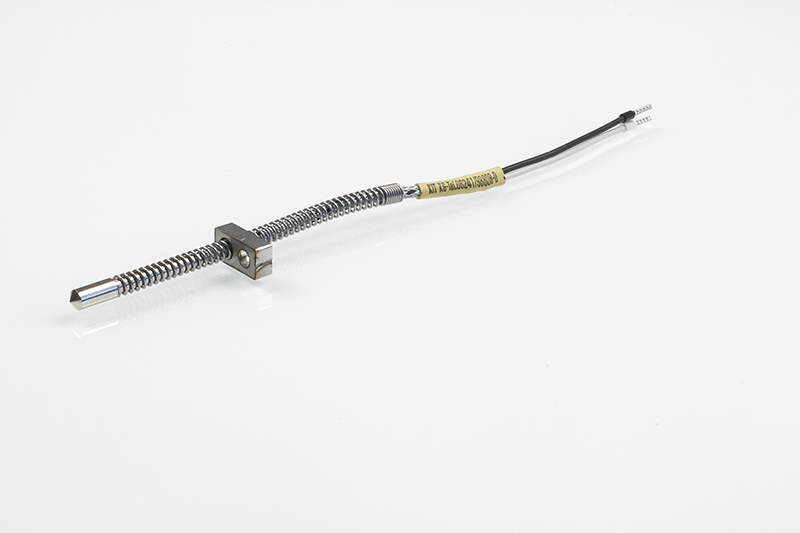

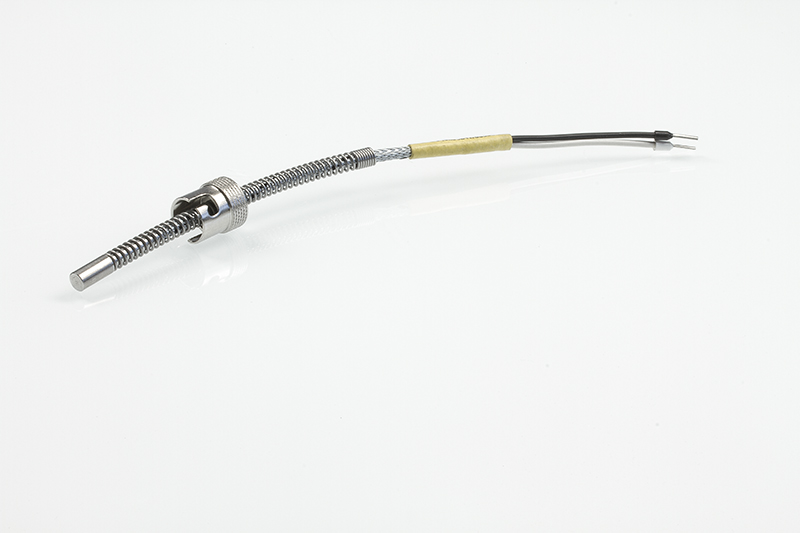

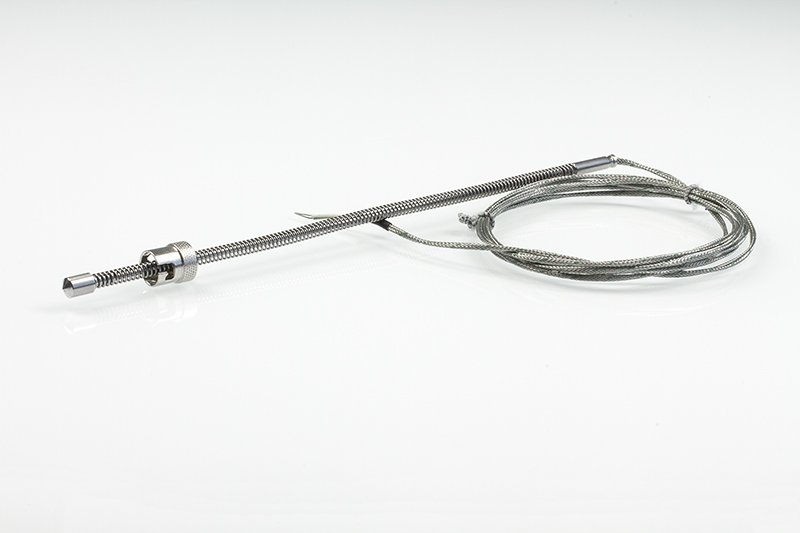

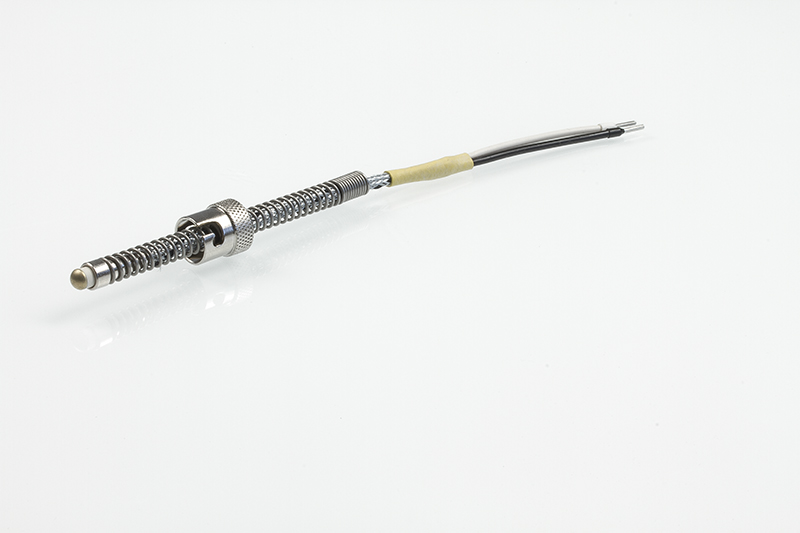

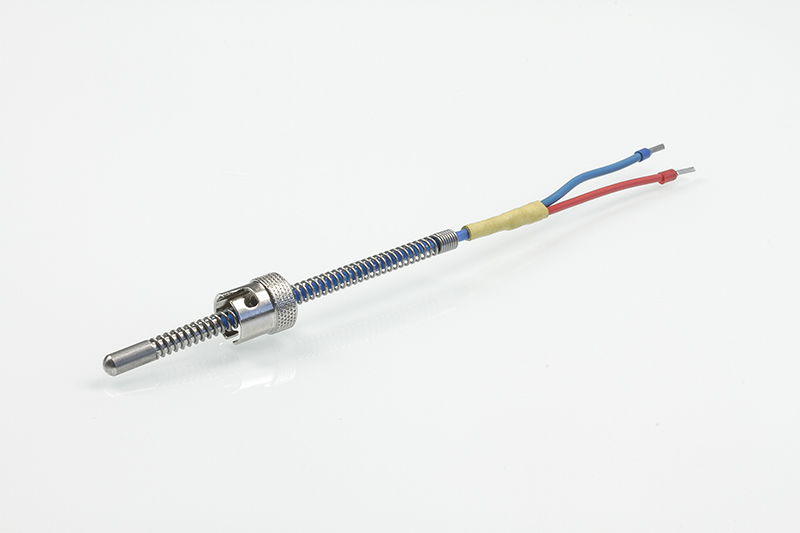

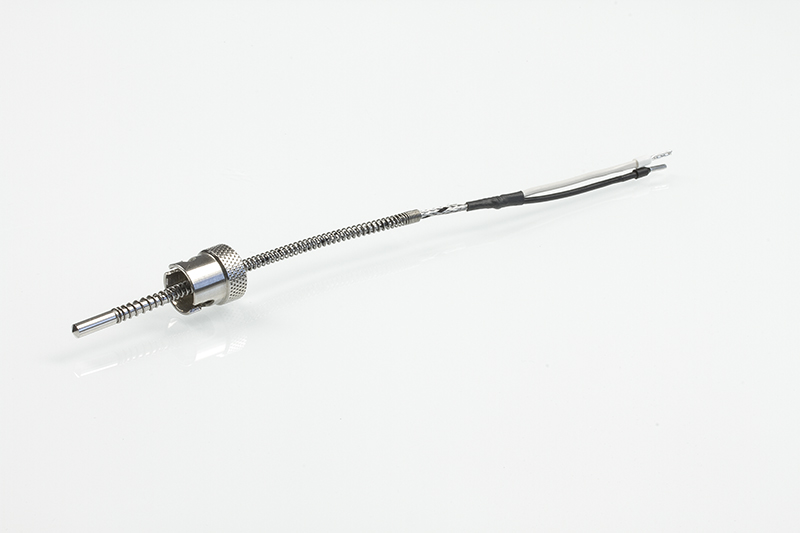

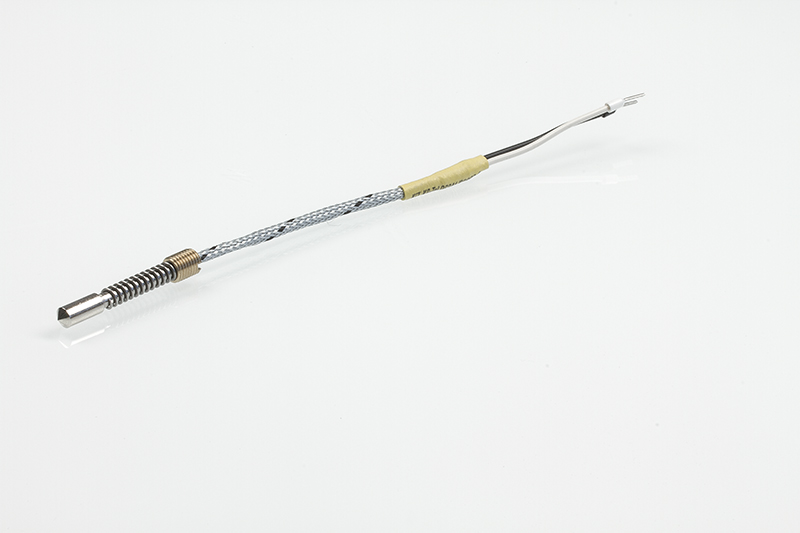

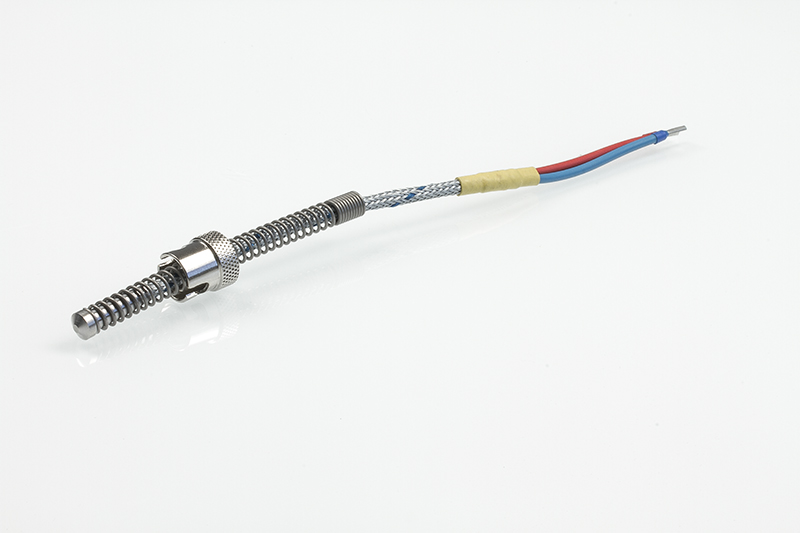

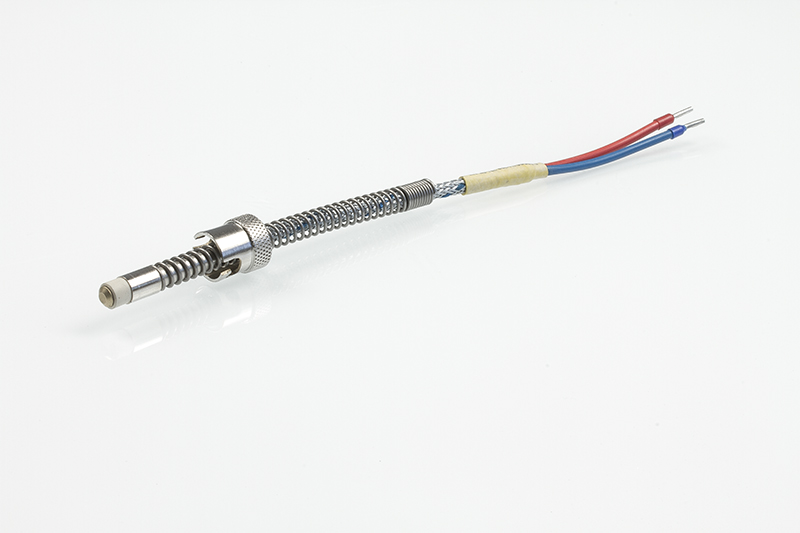

      Design examples
