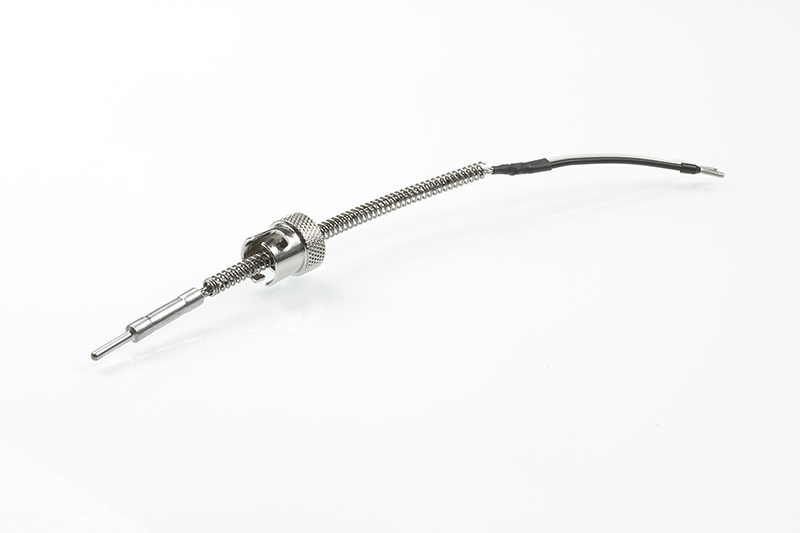

BAYONET SENSOR

TEF 5R

APPLICATIONS

Insertion sensors with bayonet cap are mainly used in moulds and tools of the polymer processing industry. With the 110 ° sensor tip the sensor is matching to the sensor hole. The 5 x 200 mm standard spring out of 1.4310 guarantees a perfect fitting on to the sensor tip. The cap has a 5 mm spring thread. With throwing the bayonet cap the insertion length can be changed. The ID of the bayonet cap is 10.5 mm and has a wall thickness of 1.75 mm. Leads are out of fiberglass insulated cores with protection meshing and galvanized steel wires.

  • operating temperature: up to 400 °C
  • sensor tip:
    Ø 2.5 x 12.75 mm - round
  • isolated
  • bayonet cap with enforced design
    IØ 10.5 mm – OØ 14 x 16 mm
    (brass nickel plated)
  • up to 400°C
    operating temperature
  • Ø 5x200 mm
    anti-kink protection spring
  • inner-Ø 10.5 mm
    bayonet cap

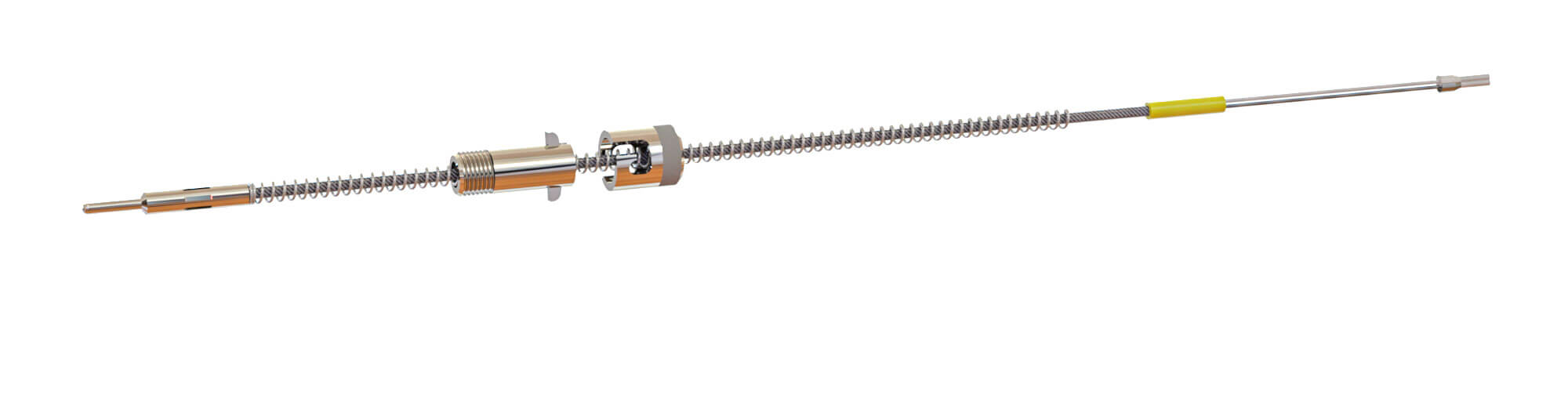

TEF 5R Bayonet Sensor

Please find following our standard thermo and compensating wires for TEF 5R thermocouples listed. Others are available on request.

Fe-CuNi type J

part# cross section temperature range outer diameter
1312115 2x0,095 mm² -50 °C up to +400 °C approx. 2,60 x 1,80 mm

NiCr-Ni type K

part# cross section temperature range outer diameter
1327235 2x0,095 mm² -50 °C up to +400 °C approx. 2,60 x 1,80 mm



    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    3-pin plug T3260 part# 1201415
      socket T3261 part# 1200722



    4-pin plug T3300 part# 1103624
      socket T3301 part# 1200723

    Miniature - Thermocouple plug connectors

    J type mini plug A12.1 part# 1269361
      mini socket A13.1 part# 1269362
      ferrule 2x0,50 mm² part# 1269363





    K type mini plug A12.2 part# 1209147
      mini socket A13.2 part# 2104331
      ferrule   part# 1269363

    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2

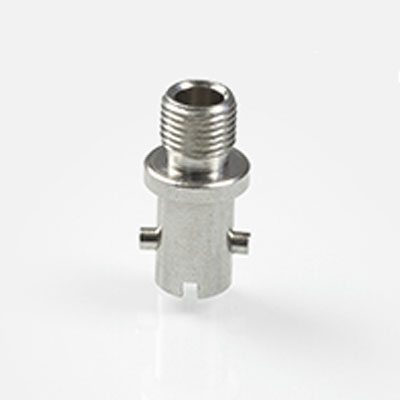

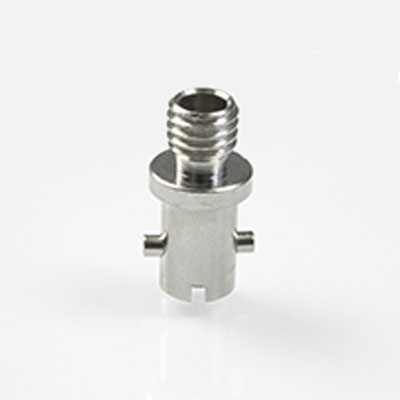

    N5/N6 Screw-in nipple

    N5/N6 M10 x 1 x 28 mm

    screw-in nipple

    part# 2110750
    thread M10 x 1
    thread length 10 mm
    total length 28 mm
    diameter 14
    shaft diameter 10,3 mm
    internal diameter 6,3 mm
    material nickel plated
    steel
    pulled pins 2

    N5/6 M10 x 28 mm

    screw-in nipple

    part# 2110749
    thread M10
    thread length 10 mm
    total length 28 mm
    diamter 14
    shaft diameter 10,3 mm
    internal diameter 6,3 mm
    material nickel plated
    steel
    pulled pins 2

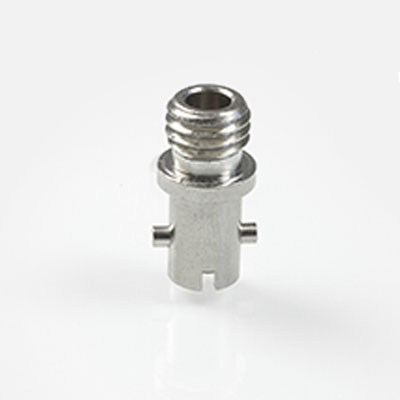

    N5/N6 M12 x 28 mm

    screw-in nipple

    part# 2110753
    thread M12
    thread length 10 mm
    total length 28 mm
    diameter 14
    shaft diameter 10,3 mm
    internal diameter 6,3 mm
    material nickel plated
    steel
    pulled pins 2

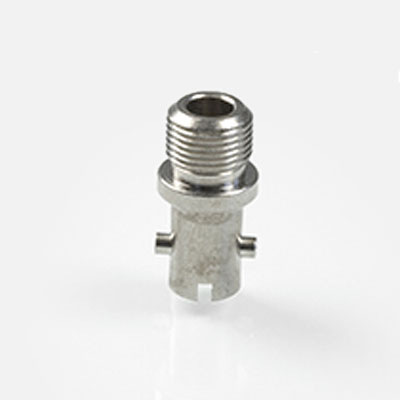

    N5/N6 M12 x 1 x 28 mm

    screw-in nipple

    part# 2110754
    thread M12 x 1
    thread length 10 mm
    total length 28 mm
    diameter 14
    shaft diameter 10,3 mm
    internal diameter 6,3 mm
    material nickel plated
    steel
    pulled pins 2

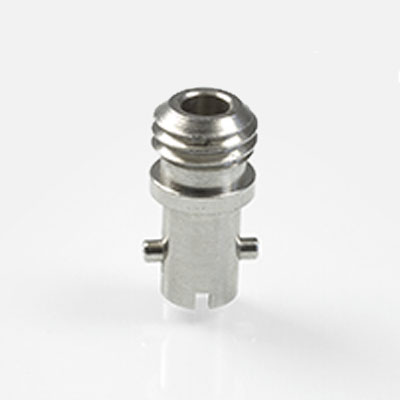

    N5/N6 M14 x 28

    screw-in nipple

    part# 2110751
    thread M14
    thread length 10 mm
    total length 28 mm
    diamter 14
    shaft diameter 10,3 mm
    internal diameter 6,3 mm
    material nickel plated
    steel
    pulled pins 2

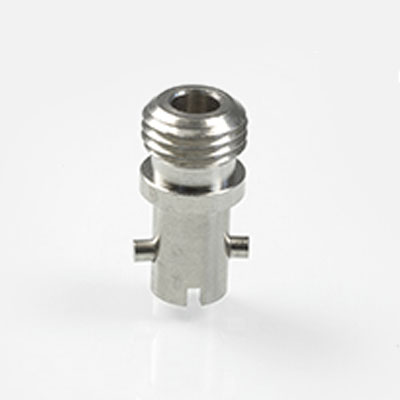

    N5/N6 M14 x 1,5 x 28 mm

    screw-in nipple

    part# 2110752
    thread M14 x 1,5
    thread length 10 mm
    total length 28 mm
    key size 14
    shaft diameter 10,3 mm
    internal diameter 6,3 mm
    material nickel plated
    steel
    pulled pins 2

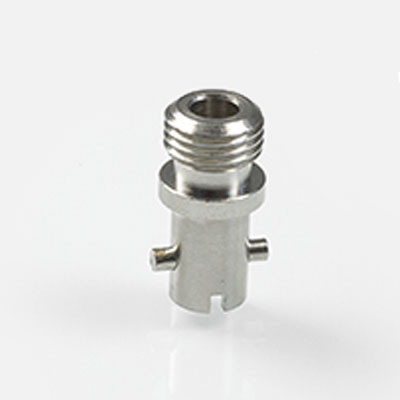

    N5/N6 G 1/4" x 28 mm

    screw-in nipple

    part# 2110756
    thread G 1/4"
    thread length 10 mm
    total length 28 mm
    diameter 14
    shaft diameter 10,3 mm
    internal diameter 6,3 mm
    material nickel plated
    steel
    pulled pins 2

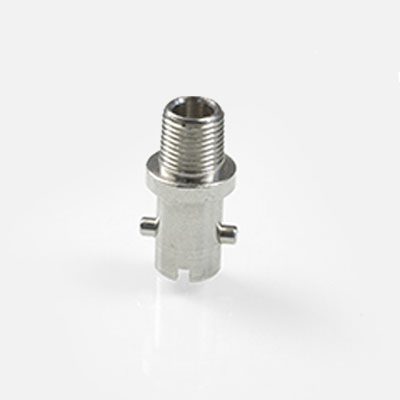

    N5/N6 1/8-NPT x 28 mm

    screw-in nipple

    part# 2110748
    thread 1/8-NPT-27
    thread length 10 mm
    total length 28 mm
    diameter 14
    shaft diameter 10,3 mm
    internal diameter 6,3 mm
    material nickel plated
    steel
    pulled pins 2

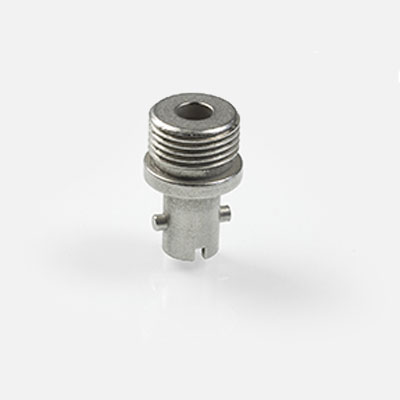

    N5/N6 G 3/8" x 28 mm

    screw-in nipple

    part# 2110755
    thread G 3/8"
    thread length 10 mm
    total length 28 mm
    diameter 18
    shaft diameter 10,3 mm
    internal diamter 6,3 mm
    material nickel plated
    steel
    pulled pins 2

    Design examples
