Bayonet Sensors

PWF 65

APPLICATIONS

Insertion resistance sensors with bayonet cap are mainly used in moulds and tools of the polymer processing industry. With the 110° sensor tip the sensor is matching to the sensor hole. The 200 mm standard spring out of 1.4310 guarantees a perfect fitting on to the sensor tip. The cap has an 8 mm spring thread. With throwing the bayonet cap the insertion length can be changed. The ID of the bayonet cap is 15 mm. Leads are out of fiberglass insulated cores with protection meshing and galvanized steel wires.

  • Pt100 gauge slide as per
    DIN EN 60751 – class B
  • operating temperature: up to 260 °C
  • two-wire circuit as standard design
  • isolated
  • sensor tip:
    Ø 8 x 5 mm – 110°
  • up to 260°C
    operating temperature
  • Ø 8 x 5 mm
    sensor tip - 110°
  • 15 mm
    bayonet cap

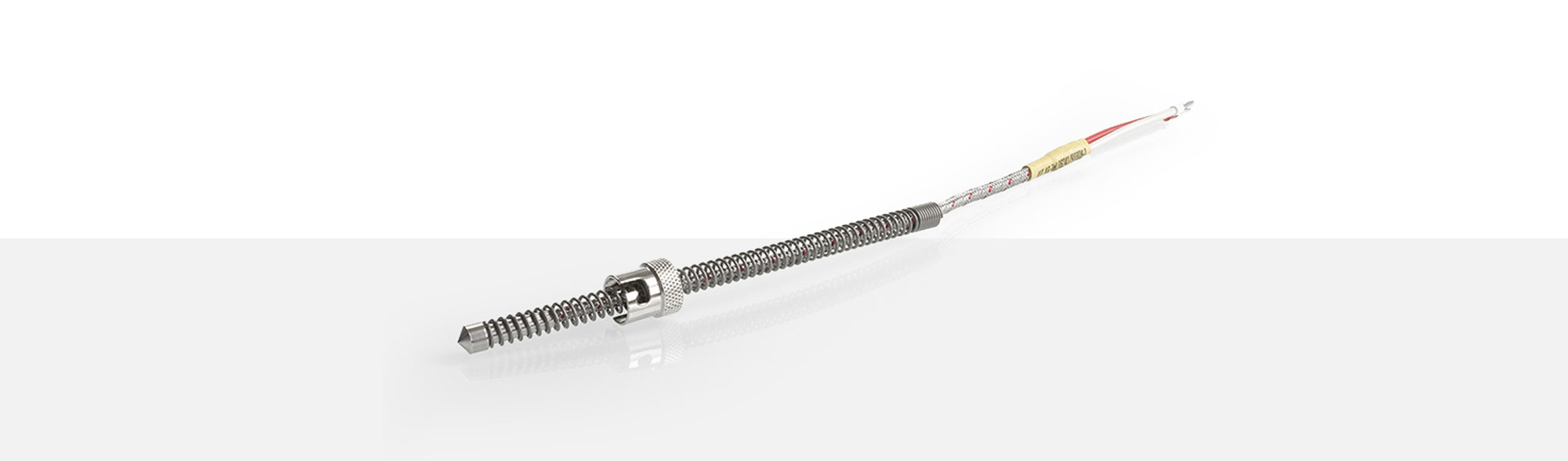

PWF 65 Bayonet Sensor

Please find following our standard leads for PWF 65 Resistance sensors listed. Others are available on request.

part# cross section temperature range outer diameter
1308376 2x0.22 mm²
Cu-tinned
-50 °C up to +350 °C 3.50 ±0.15 mm
1298296 2x0.22 mm²
Cu-tinned
-50 °C up to +260 °C 3.80 ±0.05 mm
1258824 2x0.25 mm²
Cu-tinned
-50 °C up to +260 °C 3.30 ±0.10 mm
1201354 2x0.35 mm²
Cu-nickel plated
-50 °C up to +260 °C 4.6 x 2.8 mm
1340642 3x0.25 mm²
Cu-tinned
-60 °C up to +260 °C 3.40 ±0.15 mm
1266897 4x0.18 mm²
Cu-vernickelt
-50 °C up to +260 °C 3.90 ±0.15 mm
1307789 4x0.22 mm²
Cu-tinned
-50 °C up to +350 °C 4.00 ±0.15 mm
1300580 4x0.22 mm²
Cu-tinned
-90 °C up to +260 °C 3.50 ±0.10 mm
1307865 4x0.25 mm²
Cu-tinned
-25 °C up to +180 °C 4.50 ±0.15 mm
1311552 6x0.22 mm²
Cu-tinned
-50 °C up to +260 °C 4.00 ±0.15 mm



Miniature plug connectors

Lemo cable Ø max. in mm
  sizes 0S 1S 2S 3S
  standard socket 3,7 4,2 4,2 4,2
  fitting socket
  standard plug 3,7 4,2 4,2 4,2

N32 screw-in nipple



screw-in nipple N32

M12 x 1 x 40 mm

part# 1204422
thread M12 x 1
thread length 8 mm
total length 40 mm
shaft length 14 mm
internal diameter 9 mm
material nickel plated
steel
pulled pins             2

screw-in nipple N32

M14 x 1,5 x 60 mm

part# 1229875
thread M14 x 1,5
thread length 10 mm
total length 60 mm
shaft length 14,5 mm
internal diameter 9 mm
material Stahl
vernickelt
pulled pins             2

screw-in nipple N32

G 1/4" x 60 mm

part# 1343424
thread G 1/4"
thread length 10 mm
total length 60 mm
shaft length 14,5 mm
internal diameter 9 mm
material Stahl
vernickelt
pulled pins             2
