BAYONET SENSORS

PWF 76

APPLICATIONS

Insertion resistance sensors with bayonet cap are mainly used in moulds and tools of the polymer processing industry. The tapered sensor tip enables the resistance sensor to respond quickly. The 200 mm standard spring out of 1.4310 guarantees a perfect fitting on to the sensor tip. The cap has an 8 mm spring thread. With throwing the bayonet cap the insertion length can be changed. The ID of the bayonet cap is 12.3 mm. Leads are out of fiberglass insulated cores with protection meshing and galvanized steel wires.

  • Pt100 gauge slide as per DIN EN 60751 – class B
  • operating temperature: up to 260 °C
  • two-wire circuit as standard design
  • isolated
  • sensor tip:
    Ø 3.5 x 15 mm – plane
  • up to 260°C
    operating temperature
  • Ø 3.5 x 15 mm
    sensor tip - plane
  • 12.3 mm
    bayonet cap

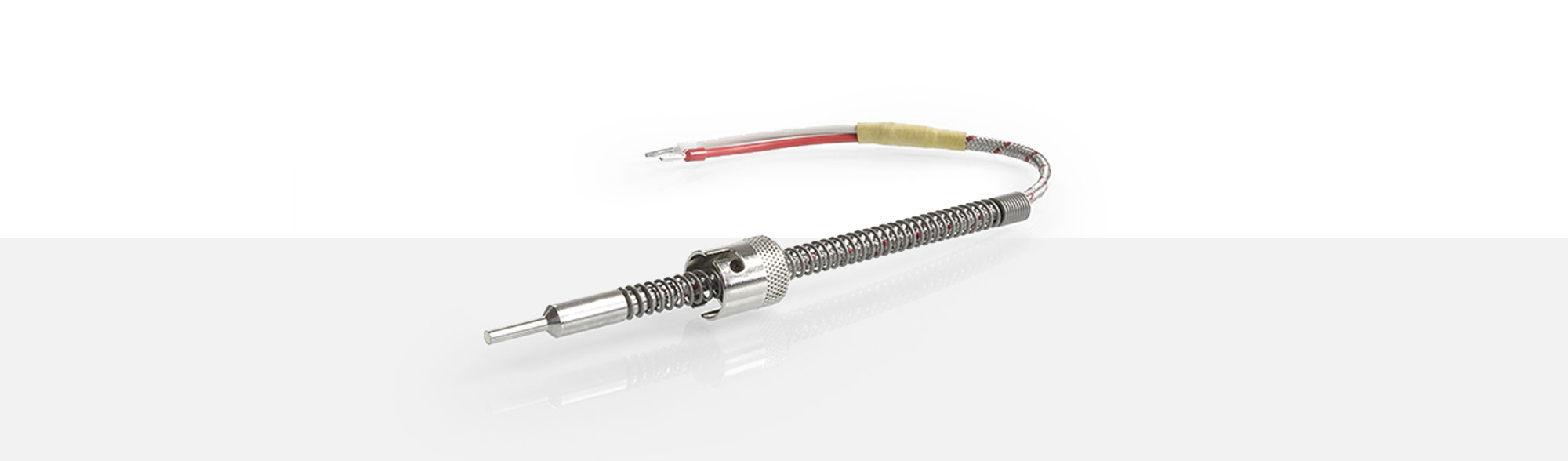

PWF 76 Bayonet Sensor

Please find following our standard leads for PWF 76 Resistance Sensors listed. Others are available on request.

part# cross section temperature range outer diameter
1308376 2x0.22 mm²
Cu-tinned
-50 °C up to +350 °C 3.50 ±0.15 mm
1298296 2x0.22 mm²
Cu-tinned
-50 °C up to +260 °C 3.80 ±0.05 mm
1258824 2x0.25 mm²
Cu-tinned
-50 °C up to +260 °C 3.30 ±0.10 mm
1201354 2x0.35 mm²
Cu-nickel plated
-50 °C up to +260 °C 4.6 x 2.8 mm
1340642 3x0.25 mm²
Cu-tinned
-60 °C up to +260 °C 3.40 ±0.15 mm
1266897 4x0.18 mm²
Cu-nickel plated
-50 °C up to +260 °C 3.90 ±0.15 mm
1307789 4x0.22 mm²
Cu-tinned
-50 °C up to +350 °C 4.00 ±0.15 mm
1300580 4x0.22 mm²
Cu-tinned
-90 °C up to +260 °C 3.50 ±0.10 mm
1307865 4x0.25 mm²
Cu-tinned
-25 °C up to +180 °C 4.50 ±0.15 mm
1311552 6x0.22 mm²
Cu-tinned
-50 °C up to +260 °C 4.00 ±0.15 mm



Miniature plug connectors

Lemo cable Ø max. in mm
  sizes 0S 1S 2S 3S
  standard socket 3,7 4,2 4,2 4,2
  fitting socket
  standard plug 3,7 4,2 4,2 4,2

Screw-in nipples

screw-in nipple N20/21

M12 x 1 x 35 mm

part# 1204426
thread M12 x 1
thread length 10 mm
total length 35 mm
shaft diameter 12 mm
internal diameter 9 mm
material nickel plated
steel
pulled pins 2

screw-in nipple N30

M12 x 1 x 60 mm

part# 1204420
thread M12 x 1
thread length 10 mm
total length 60 mm
shaft diamter 12 mm
internal diameter 9 mm
material nickel plated
steel
pulled pins 2

screw-in nipple N30

M12 x 1 x 80 mm

part# 1314889
thread M12 x 1
thread length 10 mm
total length 80 mm
shaft diameter 12 mm
internal diameter 9 mm
material nickel plated
steel
pulled pins 2
