Bayonet Sensors

PWF 95

APPLICATIONS

Insertion resistance sensors with bayonet cap are mainly used in moulds and tools of the polymer processing industry. The 200 mm standard spring out of 1.4310 guarantees a perfect fitting on to the sensor tip. The cap has an 8 mm spring thread. With throwing the bayonet cap the insertion length can be changed. The ID of the bayonet cap is 12.3 mm. Leads are out of fiberglass insulated cores with protection meshing and galvanized steel wires.

  • Pt100 gauge slide as per
    DIN EN 60751 – class B
  • two-wire circuit as standard design
  • operating temperature: up to 260 °C
  • isolated
  • sensor tip:
    Ø 4 x 17 / 75 mm – plane
  • up to 260°C
    operating temperature
  • Ø 4 x 17/75 mm
    sensor tip - plane
  • 12.3 mm
    bayonet cap

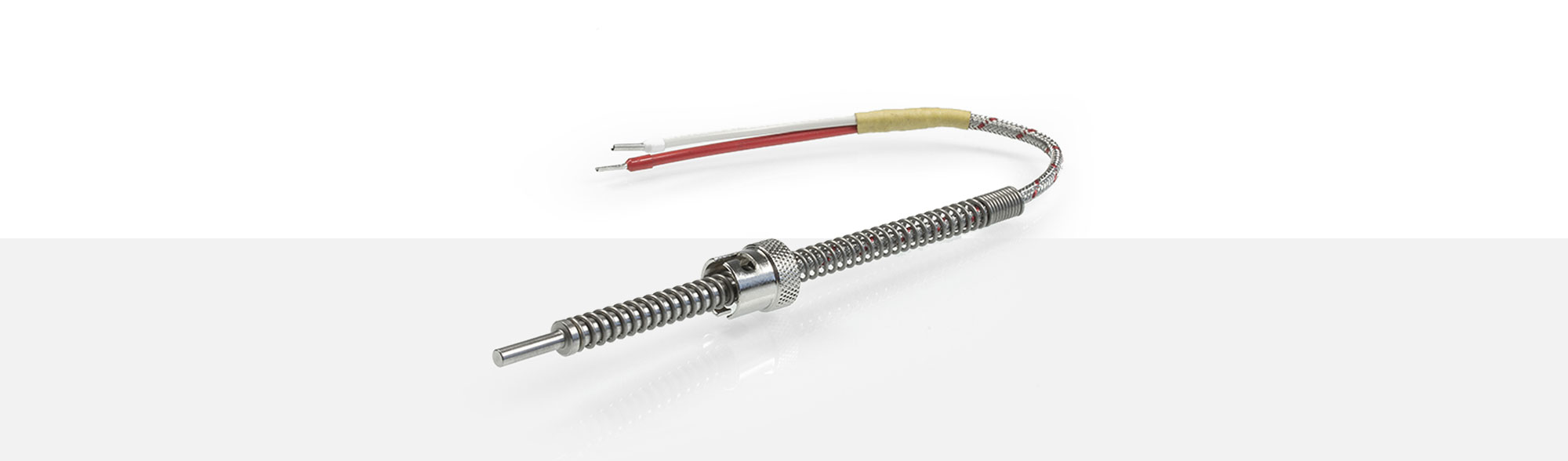

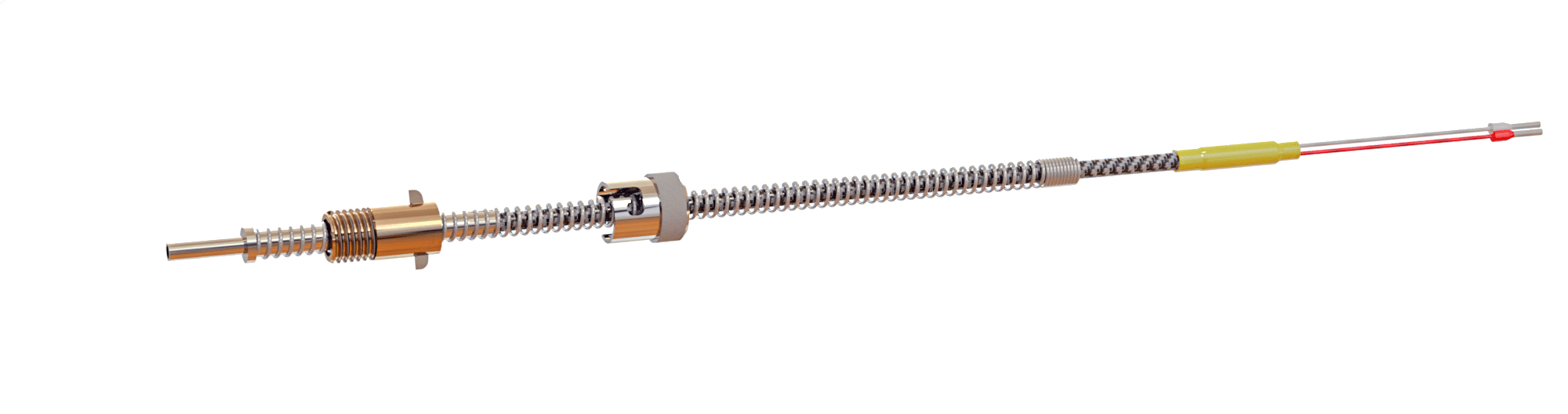

PWF 95 Bayonet Sensor

Please find following our standard leads for PWF 95 Resistance Sensors listed. Others are available on request.

part# cross section temperature range outer diameter
1201354 2x0.35 mm²
Cu-nickel plated
-50 °C up to +260 °C 4.6 x 2.8 mm
1340642 3x0.25 mm²
Cu-tinned
-60 °C up to +260 °C 3.40 ±0.15 mm
1266897 4x0.18 mm²
Cu-nickel plated
-50 °C up to +260 °C 3.90 ±0.15 mm
1307789 4x0.22 mm²
Cu-tinned
-50 °C up to +350 °C 4.00 ±0.15 mm
1300580 4x0.22 mm²
Cu-tinned
-90 °C up to +260 °C 3.50 ±0.10 mm
1307865 4x0.25 mm²
Cu-tinned
-25 °C up to +180 °C 4.50 ±0.15 mm



    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    3-pin plug T3260 part# 1201415
      socket T3261 part# 1200722



    4-pin plug T3300 part# 1103624
      socket T3301 part# 1200723

    Round plugs with screw connection

    3-pin plug T3079 part# 1103631
      socket T3080 part# 1200749





    5-pin plug T3083 part# 1103635
      socket T3084 part# 1200750



    Round plugs with bayonet connection

    3-pin plug T3008 part# 1103627





    5-pin plug T3012 part# 1119173



    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2

    Screw-in nipples

    screw-in nipple N20/21

    M12 x 1 x 35 mm

    part# 1204426
    thread M12 x 1
    thread length 10 mm
    total length 35 mm
    shaft diameter 12 mm
    internal diameter 9 mm
    material nickel plated
    steel
    pulled pins 2

    screw-in nipple N30

    M12 x 1 x 60 mm

    part# 1204420
    thread M12 x 1
    thread length 10 mm
    total length 60 mm
    shaft diamter 12 mm
    internal diameter 9 mm
    material nickel plated
    steel
    pulled pins 2

    screw-in nipple N30

    M12 x 1 x 80 mm

    part# 1314889
    thread M12 x 1
    thread length 10 mm
    total length 80 mm
    shaft diameter 12 mm
    internal diameter 9 mm
    material nickel plated
    steel
    pulled pins 2
