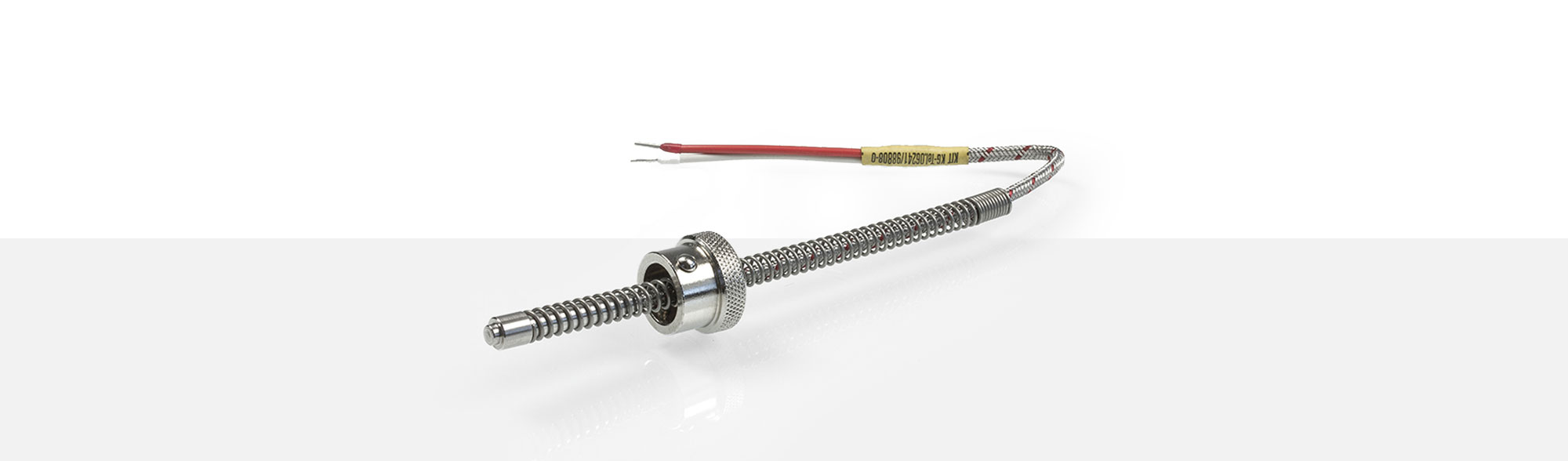

Bayonet Sensors

PWF 11

APPLICATION

Insertion resistance sensors with bayonet cap are mainly used in moulds and tools of the polymer processing industry. With the 110° sensor tip the sensor is matching to the sensor hole. The 5 x 200 mm standard spring out of 1.4310 guarantees a perfect fitting on to the sensor tip. The cap has an 8 mm spring thread. With throwing the bayonet cap the insertion length can be changed. The ID of the bayonet cap is 13 mm and the pins are between 13 mm. Leads are out of fiberglass insulated cores with protection meshing and galvanized steel wires.

  • Pt100 gauge slide as per
    DIN EN 60751 – class B
  • two-wire circuit as standard design
  • operating temperature: up to 260 °C
  • isolated
  • sensor tip:
  • Ø 5 / 8 x 2 / 8 mm - plane
  • pinned bayonet cap
  • up to 260°C
    operating temperature
  • Ø 5/8 x 2/8 mm
    sensor tip - plane
  • 13 mm
    pinned bayonet cap

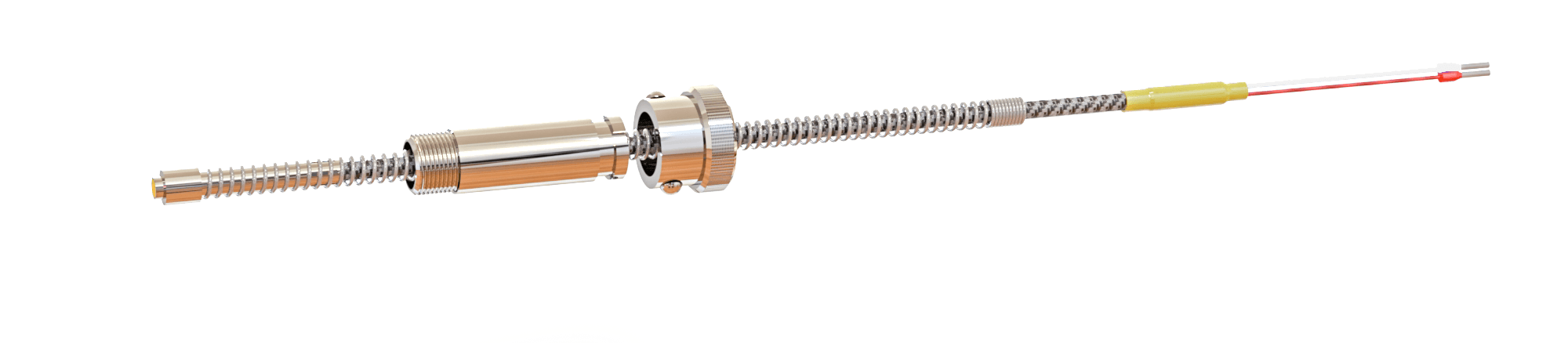

PWF 11 Bayonet Sensor

Please find following our standard leads for PWF 11 Resistance sensors listed. Others are available on request.



part# cross section temperature range outer diameter
1201354 2x0.35 mm²
Cu-nickel plated
-50 °C until +260 °C 4.6 x 2.8 mm
1340642 3x0.25 mm²
Cu-tinned
-60 °C until +260 °C 3.40 ±0.15 mm
1266897 4x0.18 mm²
Cu-nickel plated
-50 °C until +260 °C 3.90 ±0.15 mm
1307789 4x0.22 mm²
Cu-tinned
-50 °C until +350 °C 4.00 ±0.15 mm
1300580 4x0.22 mm²
Cu-tinned
-90 °C until +260 °C 3.50 ±0.10 mm
1307865 4x0.25 mm²
Cu-tinned
-25 °C until +180 °C 4.50 ±0.15 mm

    Miniature - round plugs with screw connection

    2-pin plug T3200 A# 1200716
      socket T3201 A# 1200721





    2-pin plug T3260 A# 1201415



    4-pin plug T3200 A# 1103624
      socket T3301 A# 1200723

    Round plugs with screw connection

    3-pin plug T3079 A# 1103631
      socket T3080 A# 1200749





    5-pin plug T3260 A# 1103635
      socket T3084 A# 1200750



    3-pin plug T3008 A# 1103627





    5-pin plug T3012 A# 1119173



    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard scoket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2

    N11 Screw-in nipple



    screw-in nipple N11

    M14 x 1,5 x 25 mm

    part# 1302965
    thread M14 x 1,5
    thread length 10 mm
    total length 25 mm
    shaft length 15 mm
    internal diameter 11 mm
    material nickel plated
    steel
    furrow for pins Ø 13 x 3,5 mm

    screw-in nipple N11

    M14 x 1,5 x 50 mm

    part# 1204424
    thread M14 x 1,5
    thread length 10 mm
    total length 50 mm
    shaft diameter 15 mm
    internal diameter 11 mm
    material nickle plated
    steel
    furrow for pins Ø 13 x 3,5 mm

    screw-in nipple N11

    M14 x 1,5 x 100 mm

    part# 1205906
    thread M14 x 1,5
    thread length 10 mm
    total length 100 mm
    shaft diamter 15 mm
    internal diameter 11 mm
    material nickel plated
    steel
    furrow for pins Ø 13 x 3,5 mm
