Bayonet Sensors

PWF 90

APPLICATION

Insertion resistance sensors with bayonet cap are mainly used in moulds and tools of the polymer processing industry. With the 110° sensor tip the sensor is matching to the sensor hole. The 200 mm standard spring out of 1.4310 guarantees a perfect fitting on to the sensor tip. The cap has an 8 mm spring thread. With throwing the bayonet cap the insertion length can be changed. The ID of the bayonet cap is 15 mm. Leads are out of fiberglass insulated cores with protection meshing and galvanized steel wires.

  • Pt100 gauge slide as per
    DIN EN 60751 – class B
  • two-wire circuit as standard design
  • operating temperature: up to 260 °C
  • isolated
  • sensor tip:
    Ø 4 x 20 mm – plane
  • up to 260°C
    operating temperature
  • Ø 4x20mm
    sensor tip - plane
  • 15mm
    bayonet cap

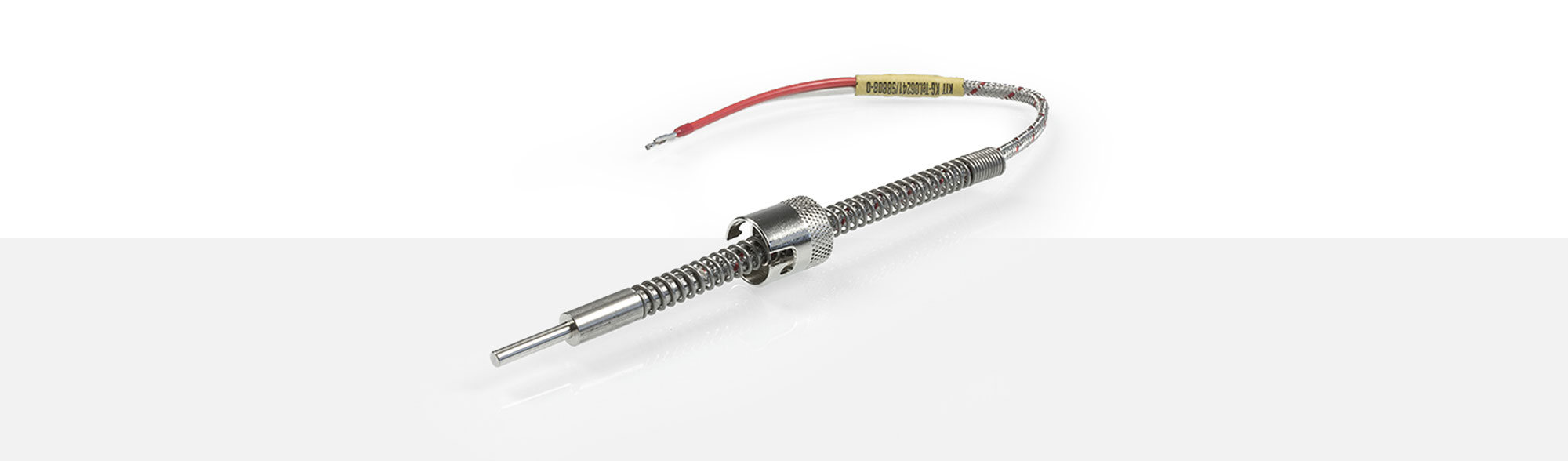

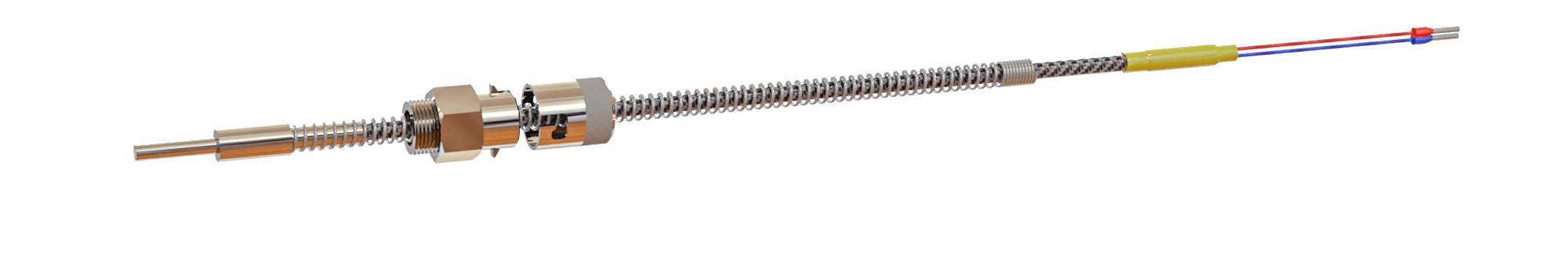

PWF 90 Bayonet Sensor

Please find following our standard leads for PWF 90 Resistance sensors listed. Others are available on request.

part# cross section temperature range outer diameter
1201354 2x0.35 mm²
Cu-nickel plated
-50 °C until +260 °C 4.6 x 2.8 mm
1340642 3x0.25 mm²
Cu-tinned
-60 °C until +260 °C 3.40 ±0.15 mm
1266897 4x0.18 mm²
Cu-nickel plated
-50 °C until +260 °C 3.90 ±0.15 mm
1307789 4x0.22 mm²
Cu-tinned
-50 °C until +350 °C 4.00 ±0.15 mm
1300580 4x0.22 mm²
Cu-tinned
-90 °C until +260 °C 3.50 ±0.10 mm
1307865 4x0.25 mm²
Cu-tinned
-25 °C until +180 °C 4.50 ±0.15 mm

    Miniature - round plugs with screw connection

    2-pin plug T3200 A# 1200716
      socket T3201 A# 1200721





    2-pin plug T3260 A# 1201415



    4-pin plug T3200 A# 1103624
      socket T3301 A# 1200723

    Round plugs with screw connection

    3-pin plug T3079 A# 1103631
      socket T3080 A# 1200749





    5-pin plug T3260 A# 1103635
      socket T3084 A# 1200750



    3-pin plug T3008 A# 1103627





    5-pin plug T3012 A# 1119173



    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard scoket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2

    N32 Screw-in nipple



    N32 M12 x 1 x 40 mm

    screw-in nipple

    part# 1204422
    thread M12 x 1
    thread length 8 mm
    total length 40 mm
    shaft diameter 14 mm
    inner diameter 9 mm
    material nickel plated
    steel
    pulled pins             2

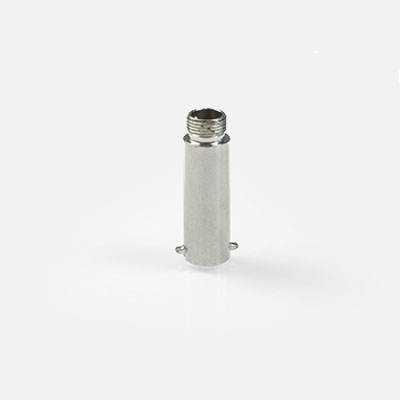

    N32 M12 x 1 x 50 mm

    screw-in nipple

    part# 1306071
    thread M12 x 1
    thread length 8 mm
    total length 50 mm
    shaft diameter 14 mm
    inner diameter 9 mm
    material nickel plated
    steel
    pulled pins             2

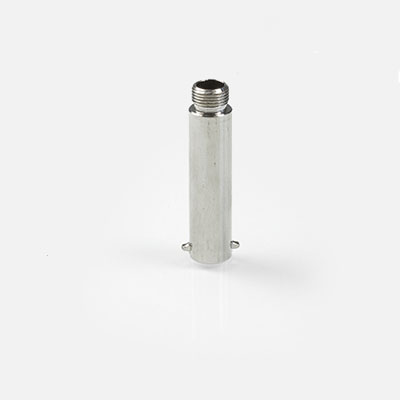

    N32 M12 x 1 x 60 mm

    screw-in nipple

    part# 1228595
    thread M12 x 1
    thread length 8 mm
    total length 60 mm
    shaft diameter 14 mm
    inner diameter 9 mm
    material nickel plated
    steel
    pulled pins             2

    N32 M14 x 1,5 x 60 mm

    screw-in nipple

    part# 1229875
    thread M14 x 1,5
    thread length 10 mm
    total length 60 mm
    shaft diamter 14,5 mm
    inner diamter 9 mm
    material nickel plated
    steel
    pulled pins             2

    N32 G 1/4" x 60 mm

    screw-in nipple

    part# 1343424
    thread G 1/4"
    thread length 10 mm
    total length 60 mm
    shaft diameter 14,5 mm
    inner diameter 9 mm
    material nickel plated
    steel
    pulled pins             2
