Bayonet Sensors

PWF 59

APPLICATION

Insertion resistance sensors with bayonet cap are mainly used in moulds and tools of the polymer processing industry. With the 110° sensor tip the sensor is matching to the sensor hole. The 200 mm standard spring out of 1.4310 guarantees a perfect fitting on to the sensor tip. The cap has a 6 mm spring thread. With throwing the bayonet cap the insertion length can be changed. The ID of the bayonet cap is 15 mm. Leads are out of fiberglass insulated cores with protection meshing and galvanized steel wires.

  • Pt100 gauge slide as per
    DIN EN 60751 – class B
  • two-wire circuit as standard design
  • operating temperature: up to 260 °C
  • isolated
  • sensor tip:
    Ø 4 / 6 x 4 / 30 mm – plane
  • IØ 15 mm bayonet cap
  • up to 260°C
    operating temperature
  • Ø 4/6 x 4/30 mm
    sensor tip - plane
  • 15 mm
    bayonet cap

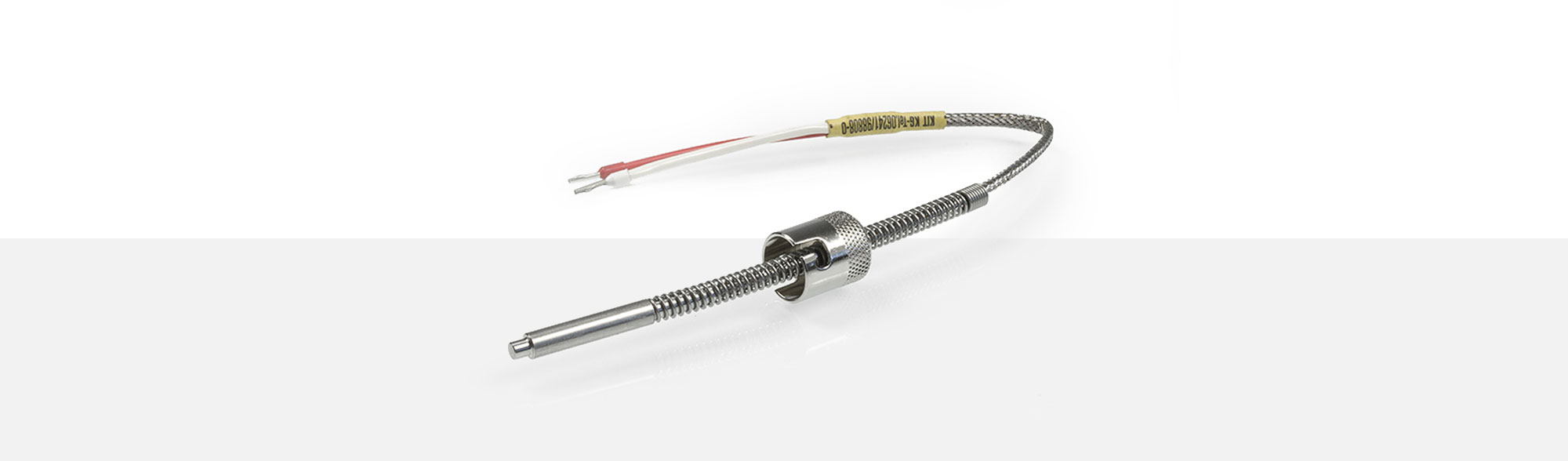

PWF 59 Bayonet Sensor

Please find following our standard leads for PWF 59 Resistance sensors listed. Others are available on request.

part# cross section temperature range outer diameter
1201354 2x0.35 mm²
Cu-nickel plated
-50 °C until +260 °C 4.6 x 2.8 mm
1340642 3x0.25 mm²
Cu-tinned
-60 °C until +260 °C 3.40 ±0.15 mm
1266897 4x0.18 mm²
Cu-nickel plated
-50 °C until +260 °C 3.90 ±0.15 mm
1307789 4x0.22 mm²
Cu-tinned
-50 °C until +350 °C 4.00 ±0.15 mm
1300580 4x0.22 mm²
Cu-tinned
-90 °C until +260 °C 3.50 ±0.10 mm
1307865 4x0.25 mm²
Cu-tinned
-25 °C until +180 °C 4.50 ±0.15 mm

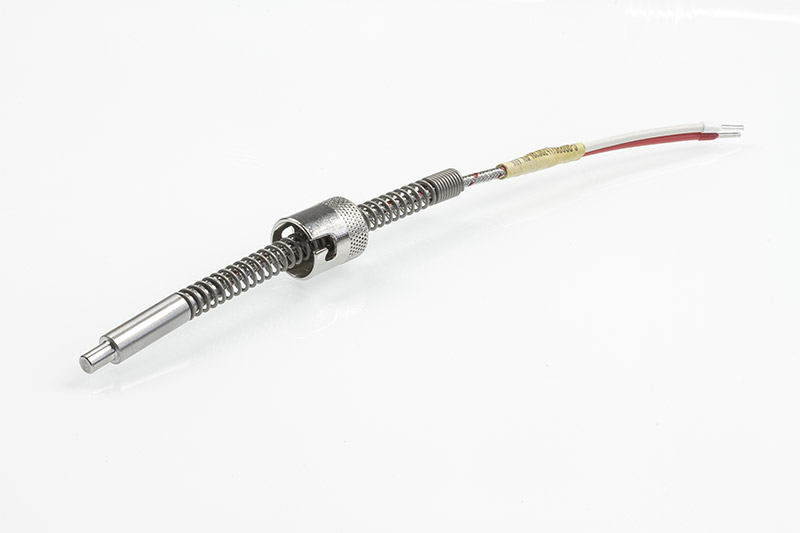

design examples

    Miniatur - Rundsteckverbinder mit Schraubverschluss

    2-polig Stecker T3200 A# 1200716
      Kupplung T3201 A# 1200721





    2-polig Stecker T3260 A# 1201415



    4-polig Stecker T3200 A# 1103624
      Kupplung T3301 A# 1200723

    Rundsteckverbinder mit Schraubverschluss

    3-polig Stecker T3079 A# 1103631
      Kupplung T3080 A# 1200749





    5-polig Stecker T3260 A# 1103635
      Kupplung T3084 A# 1200750



    Rundsteckverbinder mit Bajonettverschluss

    3-polig Stecker T3008 A# 1103627





    5-polig Stecker T3012 A# 1119173



    Miniatur - Thermoelement - Steckverbindungen

    Typ J Miniatur Stecker A12.1 A# 1269361
      Miniatur Kupplung A13.1 A# 1269362
      Quetschhülse 2x0,50 mm² A# 1269363





    Typ J Miniatur Stecker A12.2 A# 1209147
      Miniatur Kupplung A13.2 A# 2104331
      Quetschhülse   A# 1269363

    N4 screw-in nipple

    N4 G3/8” screw-in nipple

    part# 1204429
    thread G 3/8"
    thread length 6 mm
    total length 27 mm
    key size 17
    shaft Ø 14,5 mm
    internal Ø 9 mm
    material nickel plated
    steel
    pulled pins 2

    N4 G1/4” screw-in nipple

    part# 1204428
    length G 1/4"
    thread length 6 mm
    total length 27 mm
    key size 17
    shaft Ø 14,5 mm
    internal Ø 9 mm
    material nickel plated
    steel
    pulled pins 2

    N4 M14x1.5 screw in nipple

    part# 1204427
    thread M 14 x 1,5
    thread length 6 mm
    total length 27 mm
    key size 17
    shaft Ø 14,5 mm
    internal Ø 9 mm
    material nickel plated
    steel
    pulled pins 2
