Bayonet Sensors

PWF 4

Applications

Insertion resistance sensors with bayonet cap are mainly used in moulds and tools of the polymer processing industry. With the 110° sensor tip the sensor is matching to the sensor hole. The 200 mm standard spring out of 1.4310 guarantees a perfect fitting on to the sensor tip. The cap has a 8 mm or 6 mm spring thread. With throwing the bayonet cap the insertion length can be changed. The ID of the bayonet cap is 15 mm. Leads are out of fiberglass insulated cores with protection meshing and galvanized steel wires.

  • Pt100 gauge slide as per
    DIN EN 60751 – class B
  • two-wire circuit as standard design
  • operating temperature: up to 260 °C
  • isolated

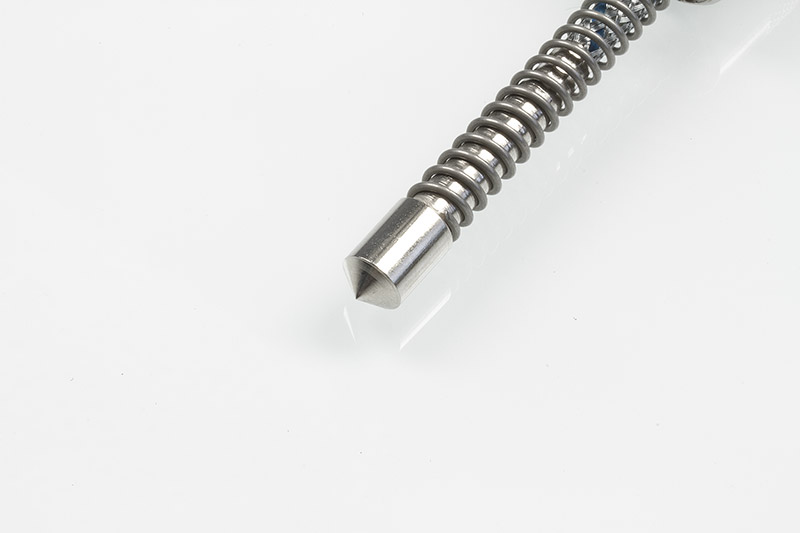

  • sensor tip:
    Ø 8 x 12 mm – 110°
    Ø 6 x 12 mm – 110°
  • up to 260°C
    operating temperature
  • 15 mm
    bayonet cap
  • Ø 6 or Ø 8 mm
    sensor tip - 110°

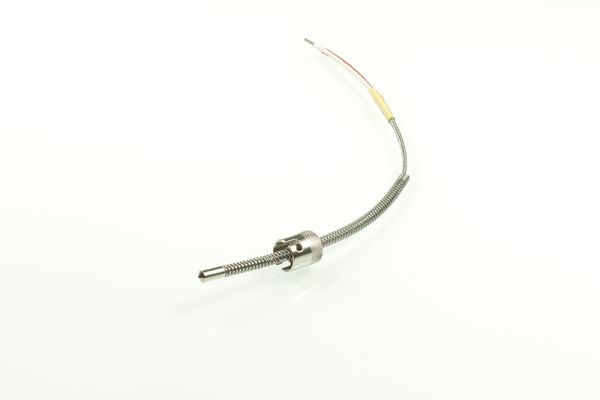

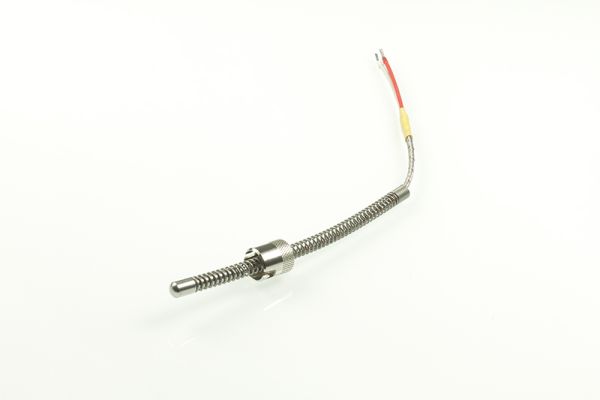

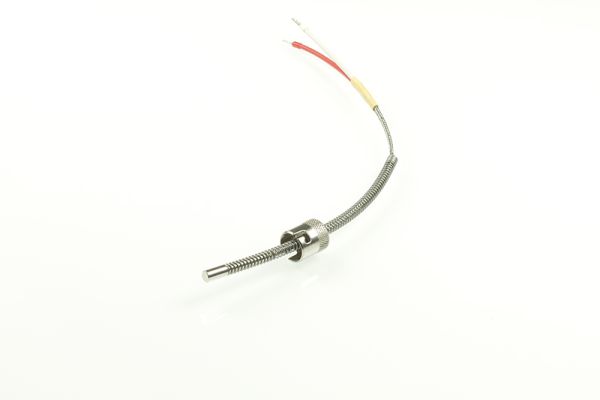

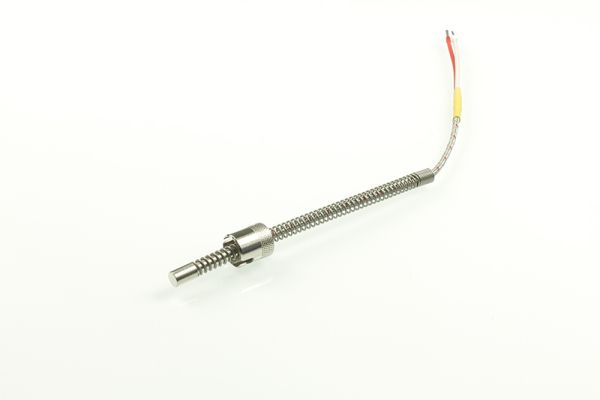

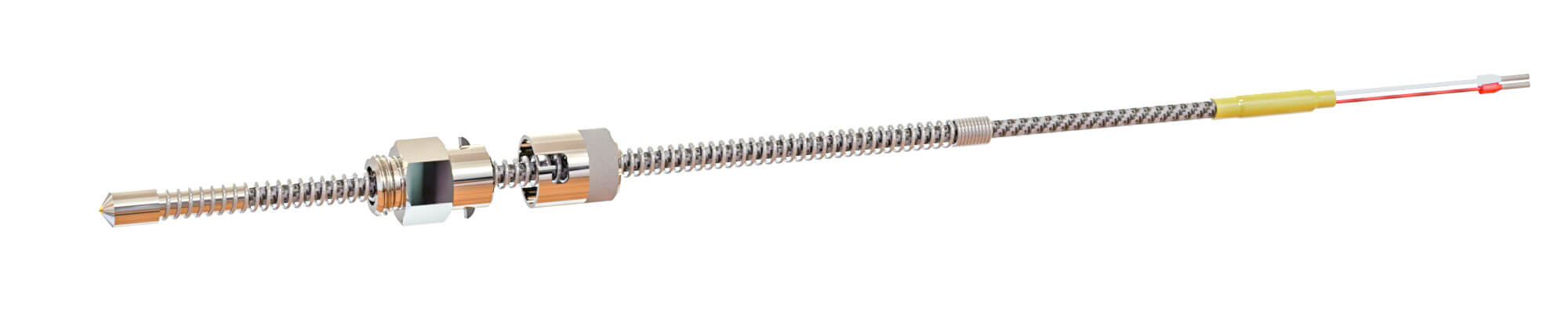

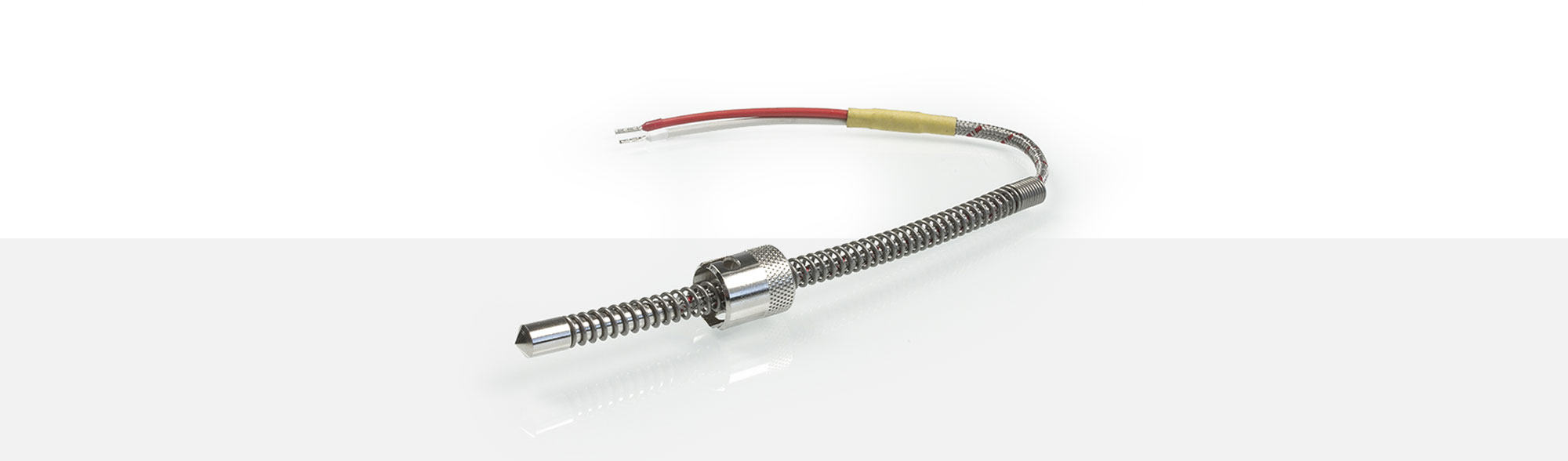

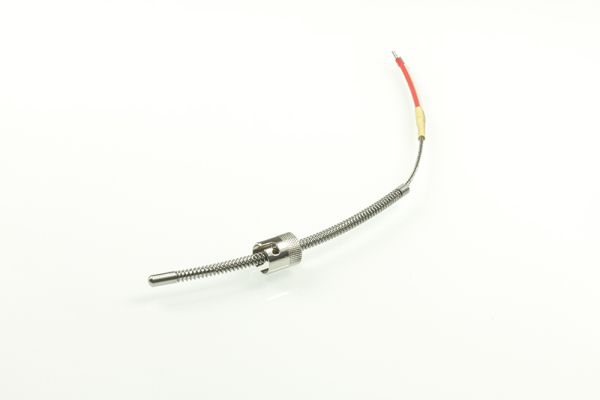

PWF 4 Bayonet Sensor

    Please find following our standard leads for PWF 4 Ø 6 mm Resistance sensors listed. Others are available on request.

    part# cross section temperature range outer diameter
    1201352 2x0,38 mm²
    Cu-nickel plated
    -50 °C up to +260 °C 3,45 x 1,95 mm
    1340642 3x0,25 mm²
    Cu-tinned
    -60 °C up to +260 °C 3,40 ±0,15 mm

    Please find following our standard leads for PWF 4 Ø 8 mm Resistance sensors listed. Others are available on request.

    part# cross section temperature range
    outer diameter
    1201354 2x0,35 mm²
    Cu-nickel plated
    -50 °C up to +260 °C 4,6 x 2,8 mm
    1340642 3x0,25 mm²
    Cu-tinned
    -60 °C up to +260 °C 3,40 ±0,15 mm
    1266897 4x0,18 mm²
    Cu-nickel plated
    -50 °C up to +260 °C 3,90 ±0,15 mm
    1307789 4x0,22 mm²
    Cu-tinned
    -50 °C up to +350 °C 4,00 ±0,15 mm
    1300580 4x0,22 mm²
    Cu-tinned
    -90 °C up to +260 °C 3,50 ±0,10 mm
    1307865 4x0,25 mm²
    Cu-tinned
    -25 °C up to +180 °C 4,50 ±0,15 mm

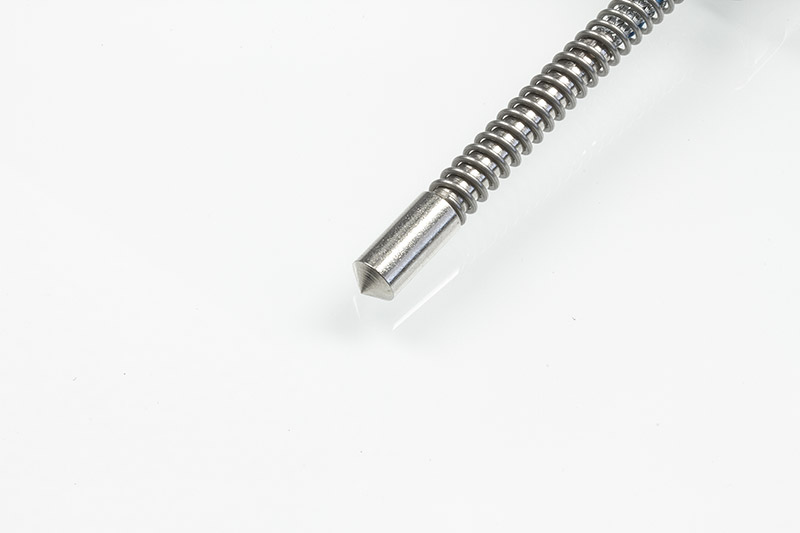

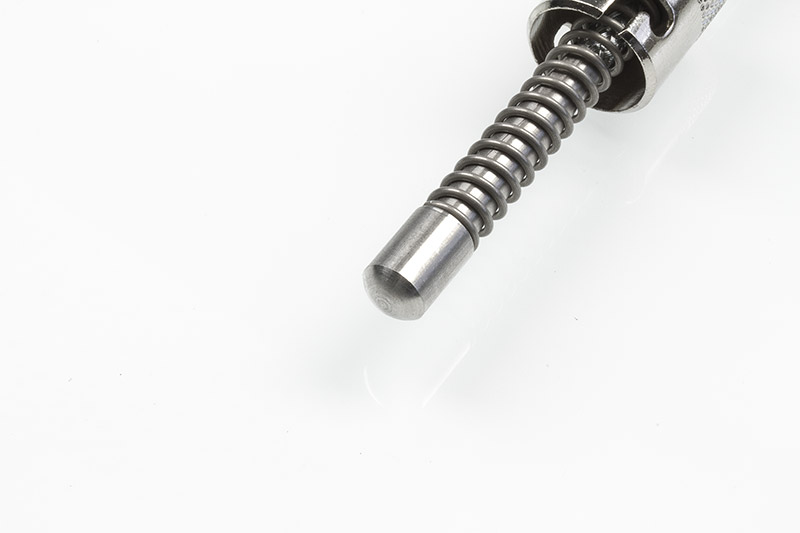

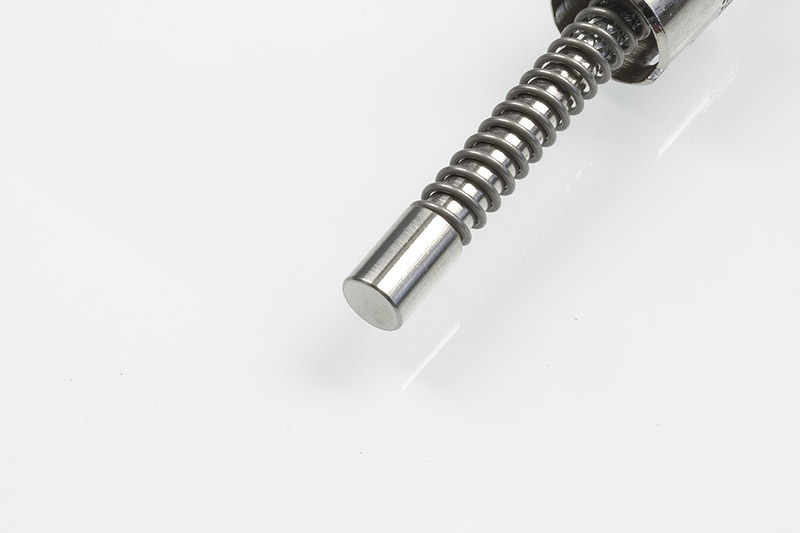

    sensor tips

    Screw-in protection sleeves

    Screw-in protection screws allow an assembly and disassembly of temperature sensors without system release.

    Screw-in protection sleeve

    material stainless steel
    1.4301
    thermocouples Ø 8 mm
    Ø 6 mm
    diameter Ø 12 mm
    Ø 10 mm
    internal borehole Ø 8,5 mm
    Ø 6,5 mm
    fitting depth
    (customer request)
    inclusive thread
    thread length 10 mm
    key size 24
    sensor screwing G 1/4"
    process connection G 3/8"
    G 1/2"
    M18x1,5
    M20x1,5

    Screw-in protection sleeve

    material brass
    MS58
    thermocouples Ø 8 mm
    Ø 6 mm
    diameter Ø 12 mm
    Ø 10 mm
    internal borehole Ø 8,5 mm
    Ø 6,5 mm
    fitting depth
    (customer request)
    inclusive thread
    thread length 10 mm
    key size 24
    sensor screwing G 1/4"
    process connection G 3/8"
    G 1/2"
    M18x1,5
    M20x1,5

    N4 screw-in nipple

    N4 G3/8” screw-in nipple

    part# 1204429
    thread G 3/8"
    thread length 6 mm
    total length 27 mm
    key size 17
    shaft Ø 14,5 mm
    internal Ø 9 mm
    material nickel plated
    steel
    pulled pins 2

    N4 G1/4” screw-in nipple

    part# 1204428
    length G 1/4"
    thread length 6 mm
    total length 27 mm
    key size 17
    shaft Ø 14,5 mm
    internal Ø 9 mm
    material nickel plated
    steel
    pulled pins 2

    N4 M14x1.5 screw in nipple

    part# 1204427
    thread M 14 x 1,5
    thread length 6 mm
    total length 27 mm
    key size 17
    shaft Ø 14,5 mm
    internal Ø 9 mm
    material nickel plated
    steel
    pulled pins 2

    Design examples

      Miniature - round plugs with screw connection

      2-pin plug T3200 part# 1200716
        socket T3201 part# 1200721





      2-pin plug T3260 part# 1201415



      4-pin plug T3200 part# 1103624
        socket T3301 part# 1200723

      Round plugs with screw connection

      3-pin plug T3079 part# 1103631
        socket T3080 part# 1200749





      5-pin plug T3260 part# 1103635
        socket T3084 part# 1200750



      Round plugs with bayonet connection

      3-pin plug T3008 part# 1103627





      5-pin plug T3012 part# 1119173



      Miniature plug connectors

      Lemo cable Ø max. in mm
        sizes 0S 1S 2S 3S
        standard socket 3,7 4,2 4,2 4,2
        fitting socket
        standard plug 3,7 4,2 4,2 4,2
