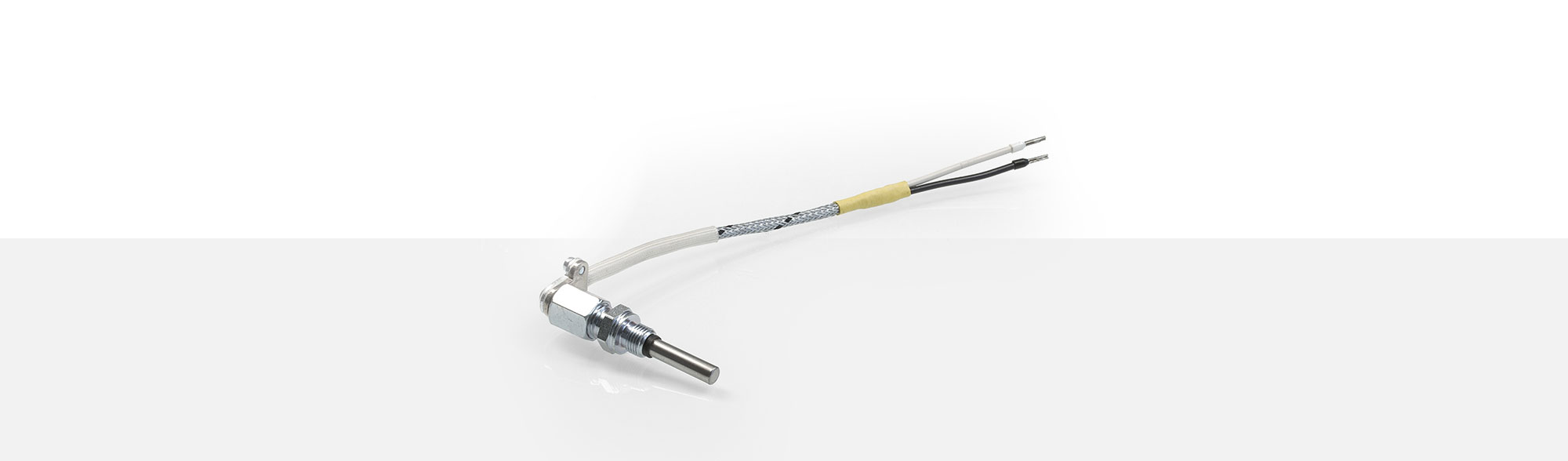

screw-in sensors

TEF 1

APPLICATIONS

Screw-in sensors are ideal for surface measuring. They are screwed directly into the component and are available with various thread sizes. The anti-kink protection is selectable. Springs with special-fiberglass hose and 400 °C heat resistant varnish are standard. Furthermore are PVC-PFA-fiberglass thermo and compensating wires as well as fiberglass with metal braided meshing available.

  • operating temperature: up to 400 °C
  • sensor tip:
    Ø 6 x 60 / 100 / 150 mm
  • isolated or non-isolated
  • as single or double element
  • 1.4301 or 1.4541 stainless steel tube
  • M10x1 terminal screw
  • 60 mm fiberglass hose as standard anti-kink protection
  • up to 400°C
    operating temperature
  • M10 x 1
    terminal screw
  • Ø 6 x 60 mm
    sensor tip

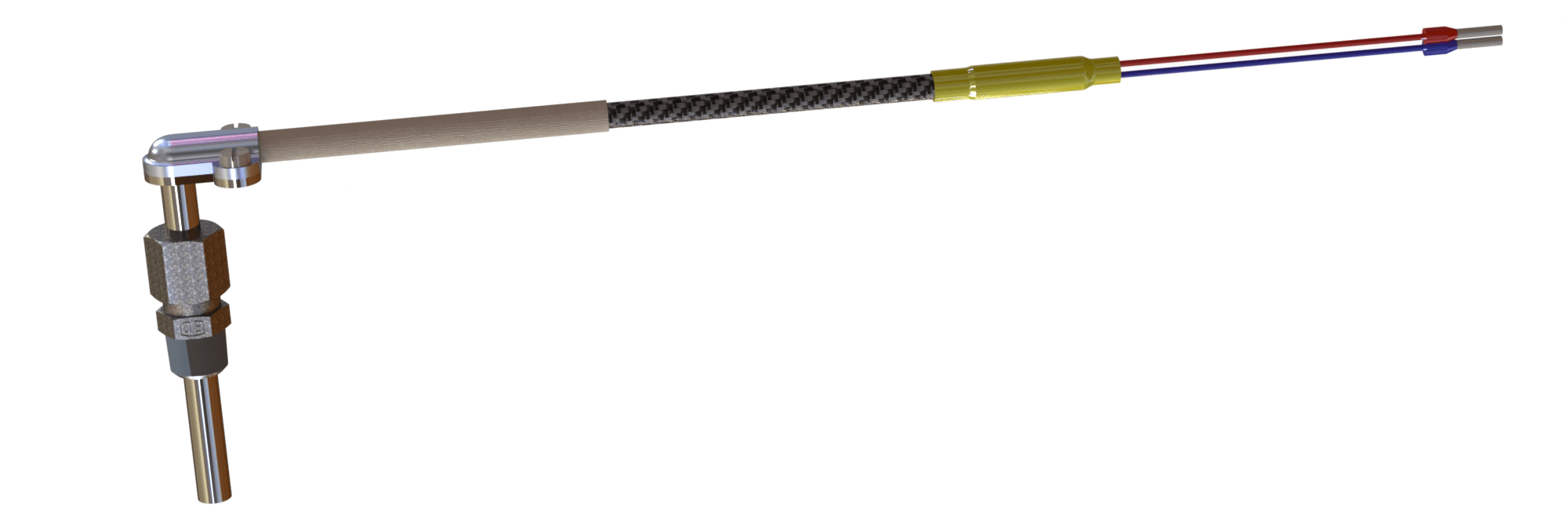

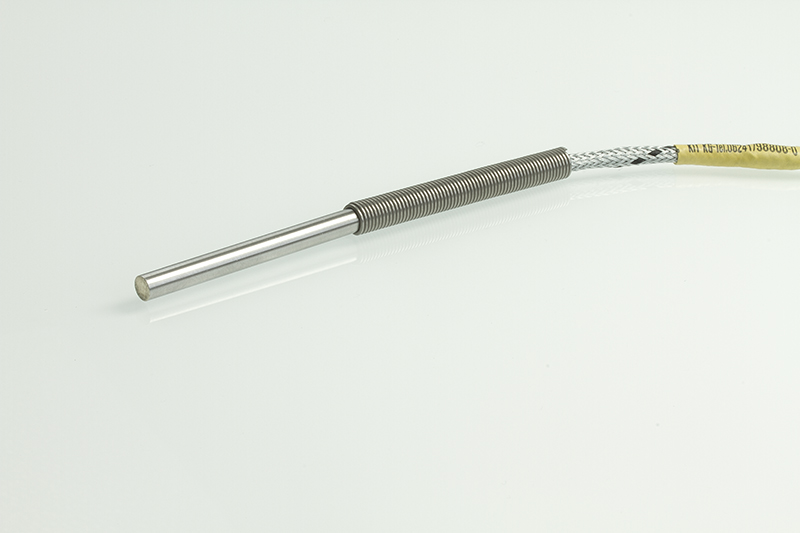

TEF 1 Screw-in Sensor

Please find following our standard thermo and compensating wires for TEF 1 thermocouples listed. Others are available on request.

Fe-CuNi type L

part# cross section temperature range outer diameter
2006830 2x0.22 mm² -100 °C up to +200 °C approx. 3.20 mm
1200455 2x0.22 mm² -50 °C up to +400 °C approx. 3.40 mm
1307289 2x0.22 mm² -40 °C up to +180 °C 4.00 mm ± 0.10 mm
1200456 4x0.22 mm² -50 °C up to +400 °C 3.80 mm max.
1200461 2x0.75 mm² -55 °C up to +180 °C 4.0 x 2.3 mm
1200464 2x1.00 mm² -50 °C up to +400 °C approx. 4.50 mm
1200465 2x1.00 mm² -50 °C up to +400 °C approx. 4.50 mm
1256523 2x1.00 mm² -50°C up to +500 °C approx. 4.50 x 2.60 mm

Fe-CuNi type J

part# cross section temperature range outer diameter
2100238 2x0.22 mm² -25 °C up to +200 °C 3.00 mm
1229818 4x0.22 mm² -50 °C up to +400 °C approx. 3.60 mm
1222528 2x0.35 mm² -50 °C up to +400 °C approx. 3.60 mm
1201349 2x1.00 mm² -50 °C up to +400 °C 4.60 mm max.
2239028 2x1.00 mm² -50 °C up to +400 °C approx. 3.40 mm

NiCr-Ni type K

part# cross section temperature range outer diameter
1320956 2x0.22 mm² up to +180 °C approx. 3.90 mm
1298584 4x0.22 mm² -50 °C up to +400 °C 4.00 mm max.
1200471 2x0.50 mm² -50 °C up to +400 °C approx. 3.50 mm
1200473 2x1.00 mm² -50 °C up to +400 °C approx. 4.50 mm

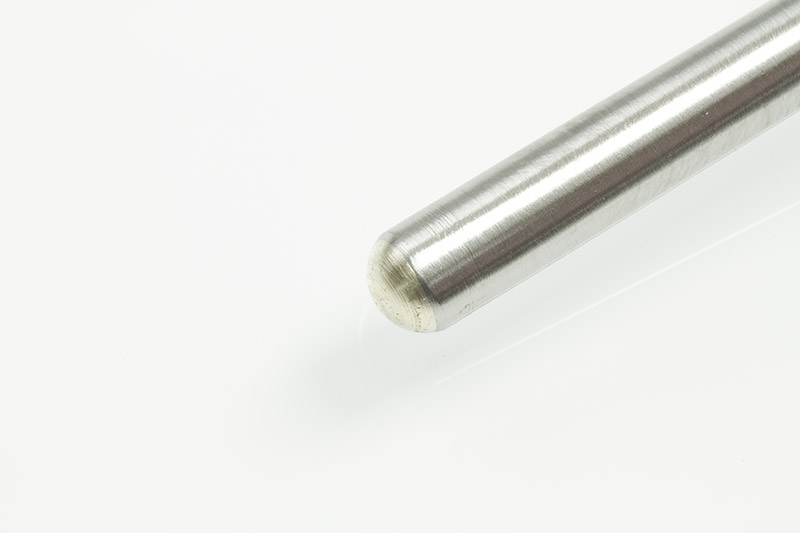

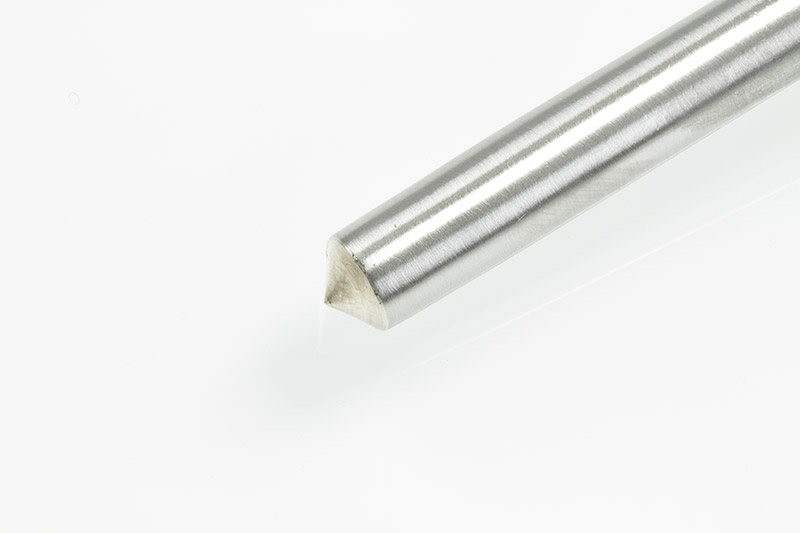

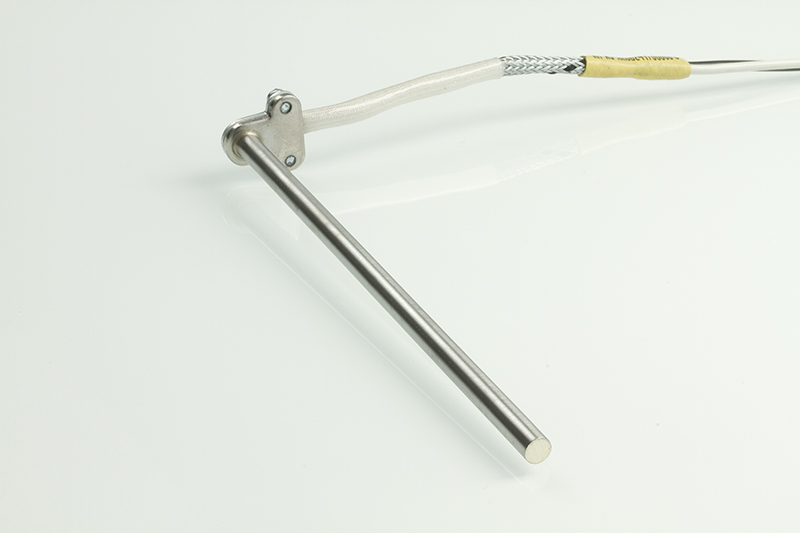

sensor tips

Clamping screws

Clamping screws are variable adjustable at the sensor tube. It is a save and sealed connection at process entry. An advantages of the clamping screws is the easy assembly and disassembly of the Temperature Sensor. Various designs in various materials and threads for different diameters are available.

M10x1 clamping screw

part# 1358666
thread M10x1
thread length 8 mm
total length ca. 33 mm
key size of
screw nut
12
internal Ø 6,2 mm
sealing ring Ø 6,2 mm
material nickel
plated steel

M10x1 clamping screw

part# 1216718
thread M10x1
thread length 8 mm
total length ca. 33 mm
key size of
screw nut
14
internal Ø 6,2 mm
sealing ring Ø 6,2 mm
material stainless
steel

G 1/8" clamping screw

part# 1364567
thread G 1/8"
thread length 8 mm
totale length ca. 33 mm
key size of
screw nut
14
internal Ø 6,2 mm
sealing ring Ø 6,2 mm
material phosphated
steel

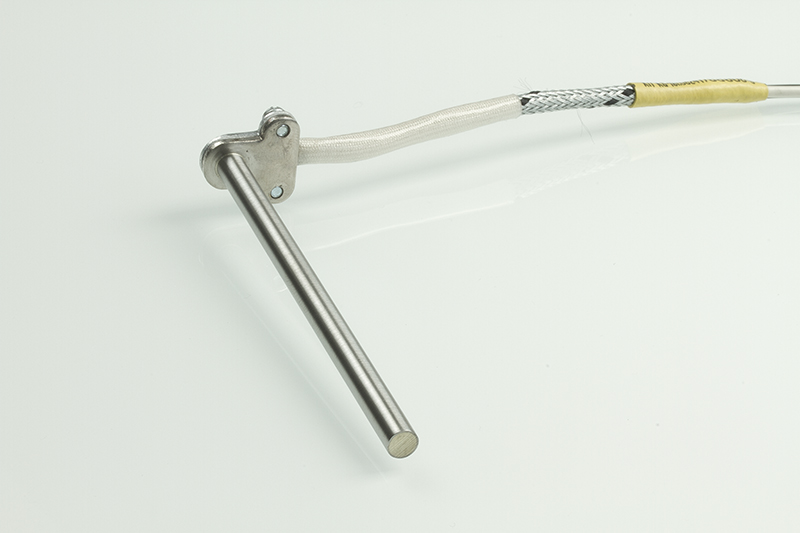

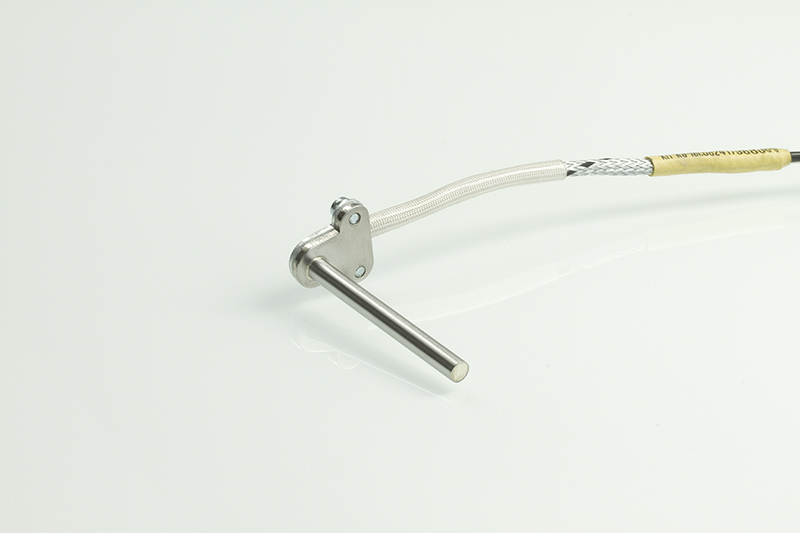

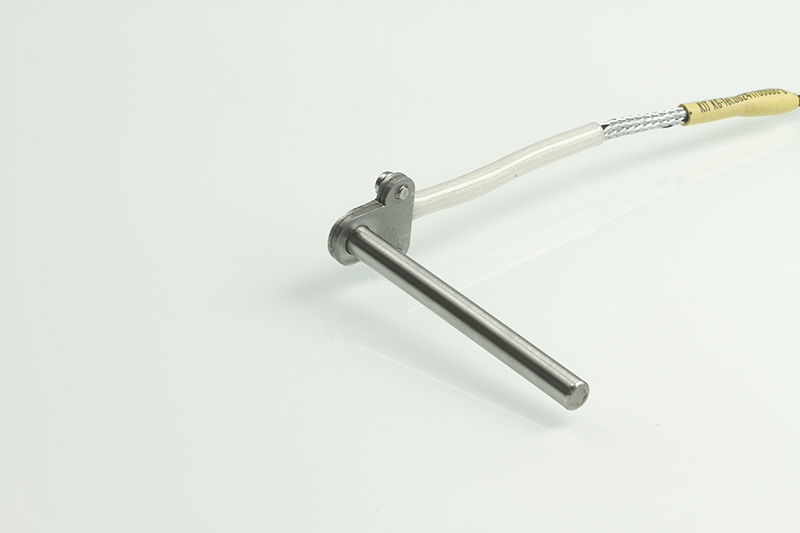

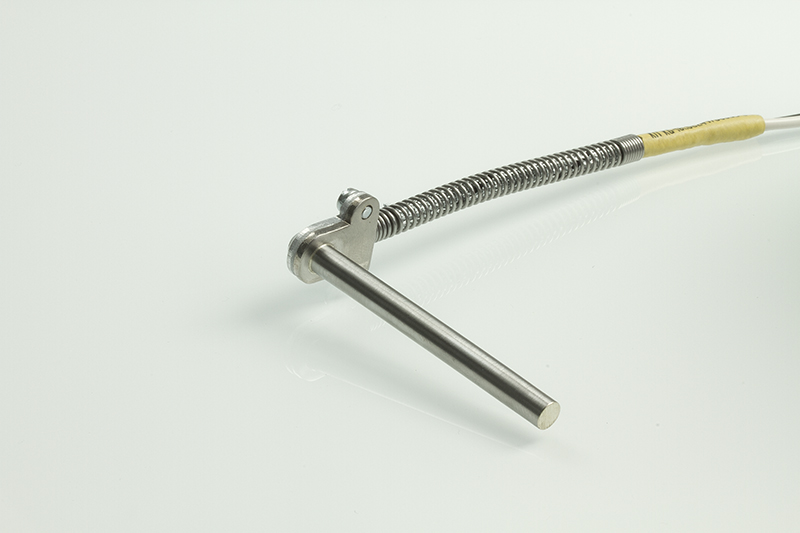

design examples

    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    2-pin plug T3260 part# 1201415



    4-pin plug T3200 part# 1103624
      socket T3301 part# 1200723

    Round plugs with screw connection

    3-pin plug T3079 part# 1103631
      socket T3080 part# 1200749





    5-pin plug T3260 part# 1103635
      socket T3084 part# 1200750



    Round plugs with bayonet connection

    3-pin plug T3008 part# 1103627





    5-pin plug T3012 part# 1119173



    Thermocouple plug connectors

    J type plug A9.1 part# 1107127
      socket A10.1 part# 1107128
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299





    K type plug A9.2 part# 1209136
      socket A10.2 part# 1209141
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299

    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
