screw-in sensors

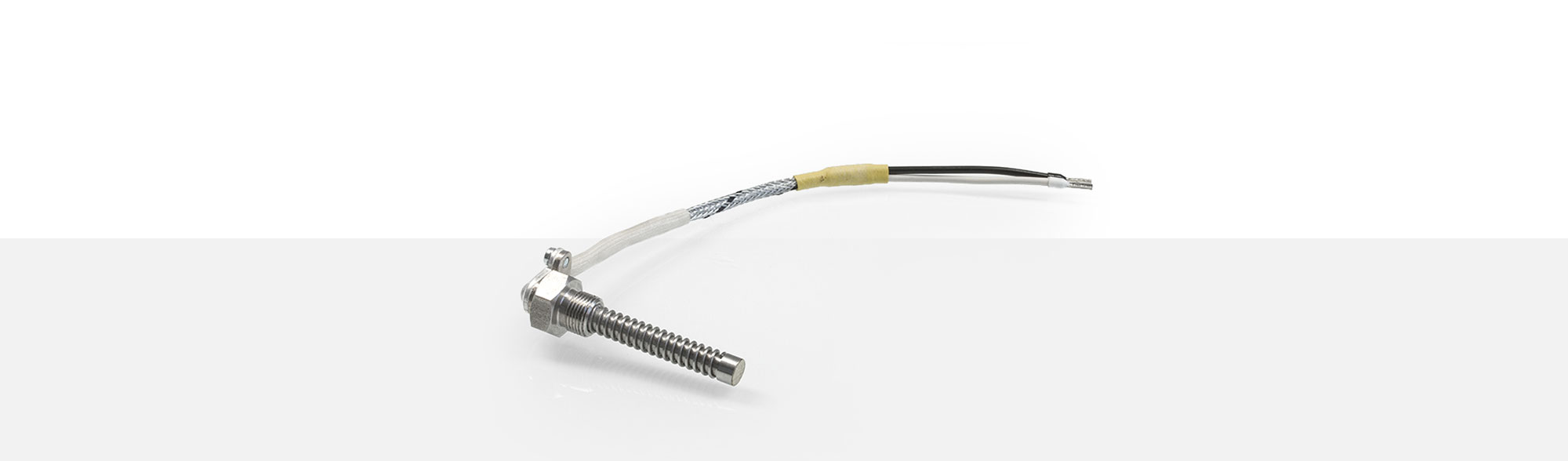

TEF 99

APPLICATIONS

Screw-in sensors are ideal for surface measuring. They are screwed directly into the component and are available with various thread sizes.  TEF 99 dimensions are Ø 8 x 5 / 60 mm with an Ø 8 x 40 pressure spring and a M12x1 thread screw-in nipple. The nipple has a thread length of 9 mm and a key size of 17 mm. A 60 mm long fiberglass hose is used as anti-kink protection.

  • operating temperature: up to 400 °C
  • sensor tip:
    Ø 8 x 5 mm – plane
  • isolated or non-isolated
  • as single and double element
  • M12x1 screw-in thread
    9 / 16 mm long – key size 17 mm
  • up to 400°C
    operating temperature
  • Ø 8 x 5 mm
    sensor tip - plane
  • M12 x 1
    screw-in thread

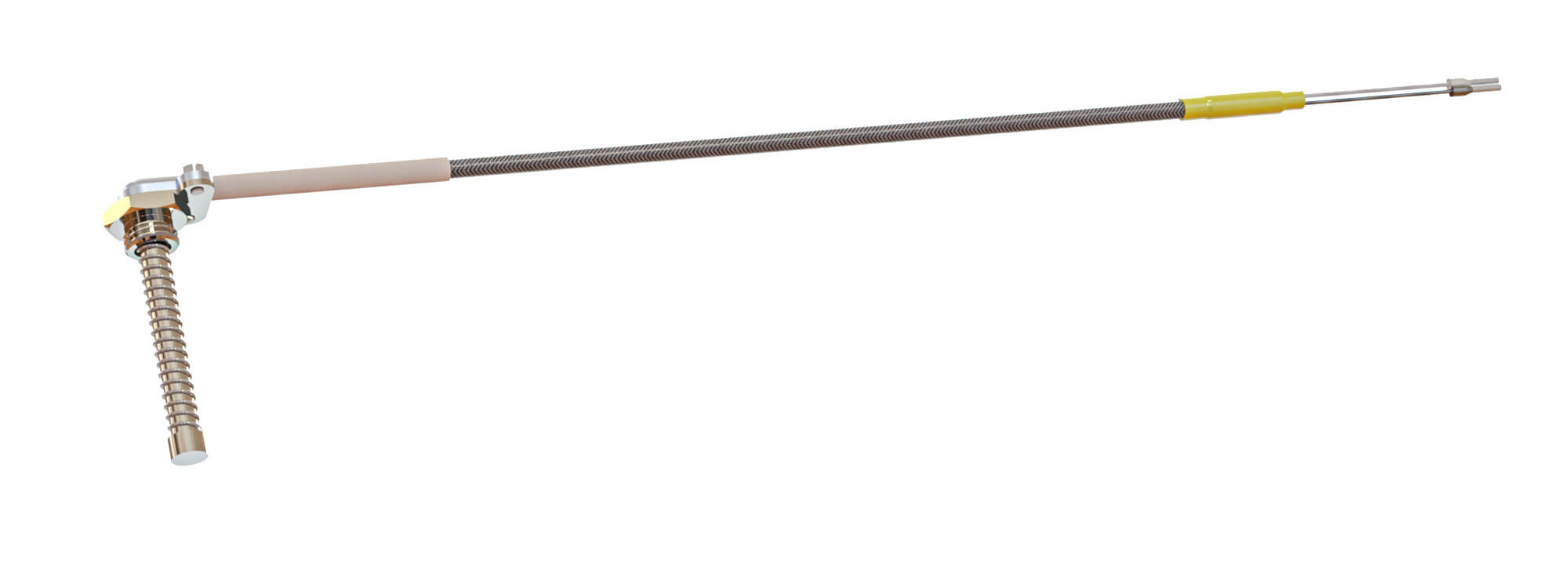

TEF 99 Screw-in Sensor

Please find following our standard thermo and compensating wires for TEF 99 thermocouples listed. Others are available on request.

Fe-CuNi type L

part# cross section temperature range outer diameter
1307289 2x0.22 mm² -40 °C up to +180 °C 4.00 mm ± 0.10 mm
1330509 2x0.22 mm²
+ 1.00 mm²
earth wire
-50 °C up to +300 °C approx. 3.40 mm
1200456 4x0.22 mm² -50 °C up to +400 °C 3.80 mm max.
1200464 2x1.00 mm² -50 °C up to +400 °C approx. 4.50 mm
1200465 2x1.00 mm² -50 °C up to +400 °C approx. 4.50 mm
1256523 2x1.00 mm² -50°C up to +500 °C approx. 4.50 x 2.60 mm
2239070 2x1.00 mm² -50°C up to +500 °C

Fe-CuNi type J

part# cross section temperature range outer diameter
1346358 2x0.22 mm²
+ 1.00 mm²
earth wire
-50 °C up to +400 °C approx. 3.10 mm
1229818 4x0.22 mm² -50 °C up to +400 °C approx. 3.60 mm
1222528 2x0.35 mm² -50 °C up to +400 °C approx. 3.60 mm
1231037 2x0.50 mm² -50 °C up to +400 °C approx. 3.90 mm
1201349 2x1.00 mm² -50 °C up to +400 °C 4.60 mm max.

NiCr-Ni type K

part# cross section temperature range outer diameter
1298584 4x0.22 mm² -50 °C up to +400 °C 4.00 mm max.
1200471 2x0.50 mm² -50 °C up to +400 °C approx. 3.50 mm
1200473 2x1.00 mm² -50 °C up to +400 °C approx. 4.50 mm

design examples

    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    2-pin plug T3260 part# 1201415



    4-pin plug T3200 part# 1103624
      socket T3301 part# 1200723

    Round plugs with screw connection

    3-pin plug T3079 part# 1103631
      socket T3080 part# 1200749





    5-pin plug T3260 part# 1103635
      socket T3084 part# 1200750



    Round plugs with bayonet connection

    3-pin plug T3008 part# 1103627





    5-pin plug T3012 part# 1119173



    Thermocouple plug connectors

    J type plug A9.1 part# 1107127
      socket A10.1 part# 1107128
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299





    K type plug A9.2 part# 1209136
      socket A10.2 part# 1209141
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299

    Duplex - Thermocouple plug connectors

    J type duplex plug   part# 1209139
      duplex socket   part# 1209144
      strain relief 2x1,00 mm² part# 1349298
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299





    K type duplex plug   part# 2105264
      duplex socket   part# 1302891
      strain relief 2x1,00 mm² part# 1349298
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299

    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
