screw-in sensors

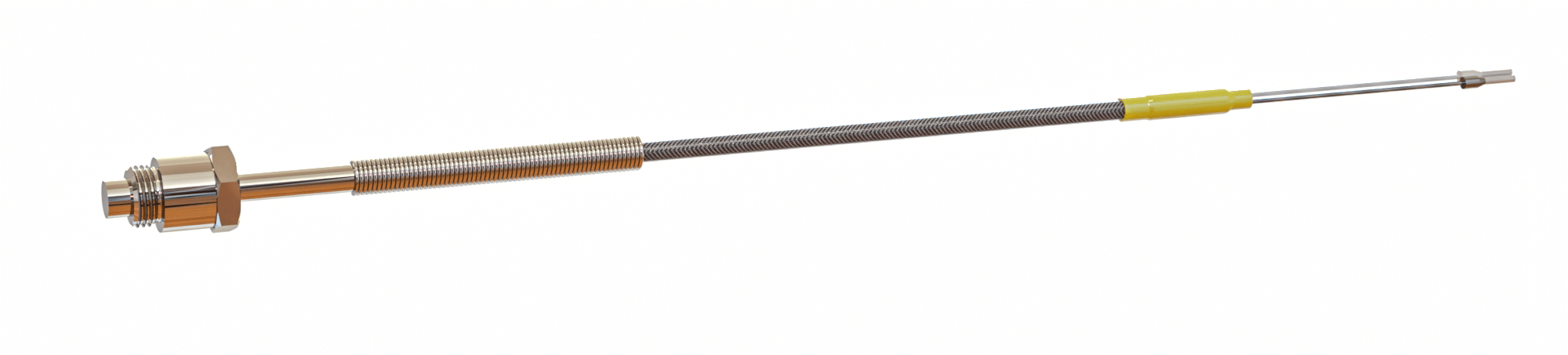

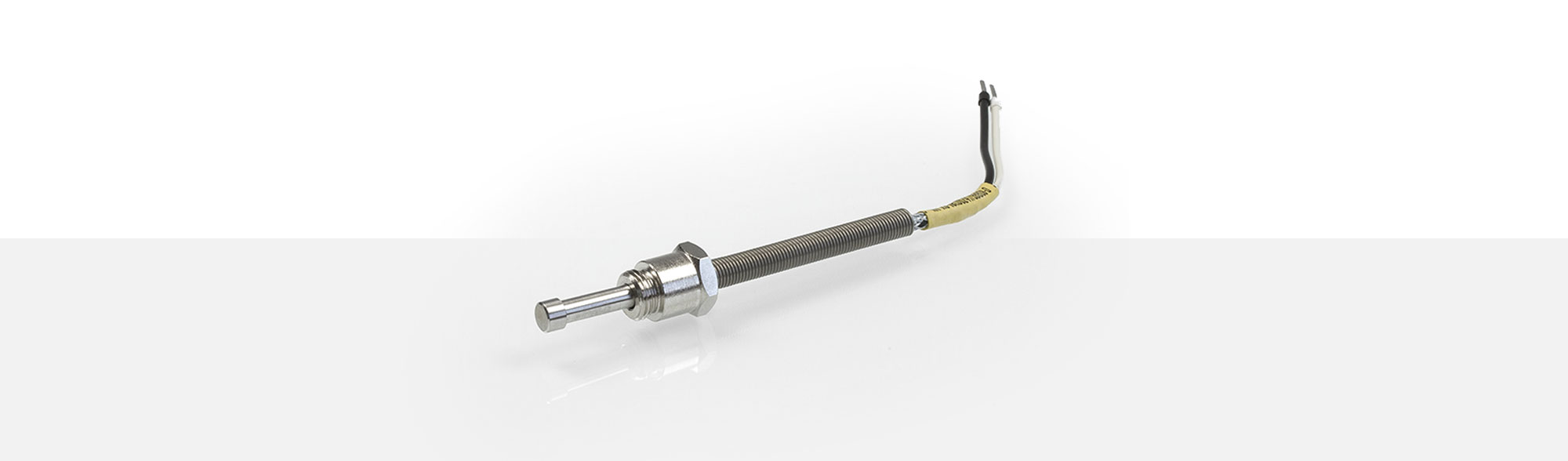

Screw-in sensors are ideal for surface measuring. They are screwed directly into the component and are available with various thread sizes. The TEF 60 can be assembled without cable twisting. The loose G ¼” with 17 mm key size screw-in nipple is screwed into the thread hole and presses the plane sensor tip on to the component. The passage from sensor to compensating wire is conical strain relieved. An Ø 8 x 65 mm spring is used as anti-kink protection.
Please find following our standard thermo and compensating wires for TEF 60 thermocouples listed. Others are available on request.
Fe-CuNi type L
| part# | cross section | temperature range | outer diameter |
| 1200456 | 4x0,22 mm² | -50 °C up to +400 °C | 3,80 mm max. |
| 1200464 | 2x1,00 mm² | -50 °C up to +400 °C | approx. 4,50 mm |
| 1200465 | 2x1,00 mm² | -50 °C up to +400 °C | approx. 4,50 mm |
| 1256523 | 2x1,00 mm² | -50°C up to +400 °C | approx. 4,50 x 2,60 mm |
| 2239027 | 2x1,00 mm² | -90°C up to +650 °C | approx. 5,00 x 3,20 mm |
Miniature - round plugs with screw connection
| 3-pin | plug | T3260 | part# 1201415 |
| socket | T3261 | part# 1200722 |
| 4-pin | plug | T3300 | part# 1103624 |
| socket | T3301 | part# 1200723 |
Thermocouple plug connectors
| J type | plug | A9.1 | part# 1107127 |
| socket | A10.1 | part# 1107128 | |
| with cross section | 2x0,50 mm² | part# 1349300 |
| K type | plug | A9.2 | part# 1209136 |
| socket | A10.2 | part# 1134620 | |
| with cross section | 2x0,50 mm² | part# 1349300 |
Duplex - Thermocouple plug connectors
| J type | duplex plug | part# 1209139 | |
| duplex socket | part# 1209144 | ||
| strain relief | 2x1,00 mm² | part# 1349298 | |
| with cross section | 2x0,50 mm² | part# 1349300 |
| K type | duplex plug | part# 2105264 | |
| duplex socket | part# 1302891 | ||
| strain relief | 2x1,00 mm² | part# 1349298 | |
| with cross section | 2x0,50 mm² | part# 1349300 |
Miniature plug connectors
| Lemo | cable Ø max. in mm | ||||
| sizes | 0S | 1S | 2S | 3S | |
| standard socket | 3,7 | 4,2 | 4,2 | 4,2 | |
| fitting socket | |||||
| standard plug | 3,7 | 4,2 | 4,2 | 4,2 |
