screw-in sensors

TEF 80

APPLICATION

Screw-in sensors are ideal for surface measuring. They are screwed directly into the component and are available with various thread sizes. The sensor can be screwed directly into the component without twisting the leads. The passage from sensor to leads is tension relieved.  The anti-kink protection spring is fitted to the shaft of the screw-in nipple.

  • operating temperature: up to 400 °C
  • sensor tip:
    Ø 4.76 x 1 – 120°
  • isolated or non-isolated
  • M6 screw-in nipple, 8 mm key size
  • Ø 6 x 100 mm anti-kink protection spring
  • up to 400°C
    operating temperature
  • Ø 4.76 x 1 mm
    sensor tip - 120°
  • M6
    thread

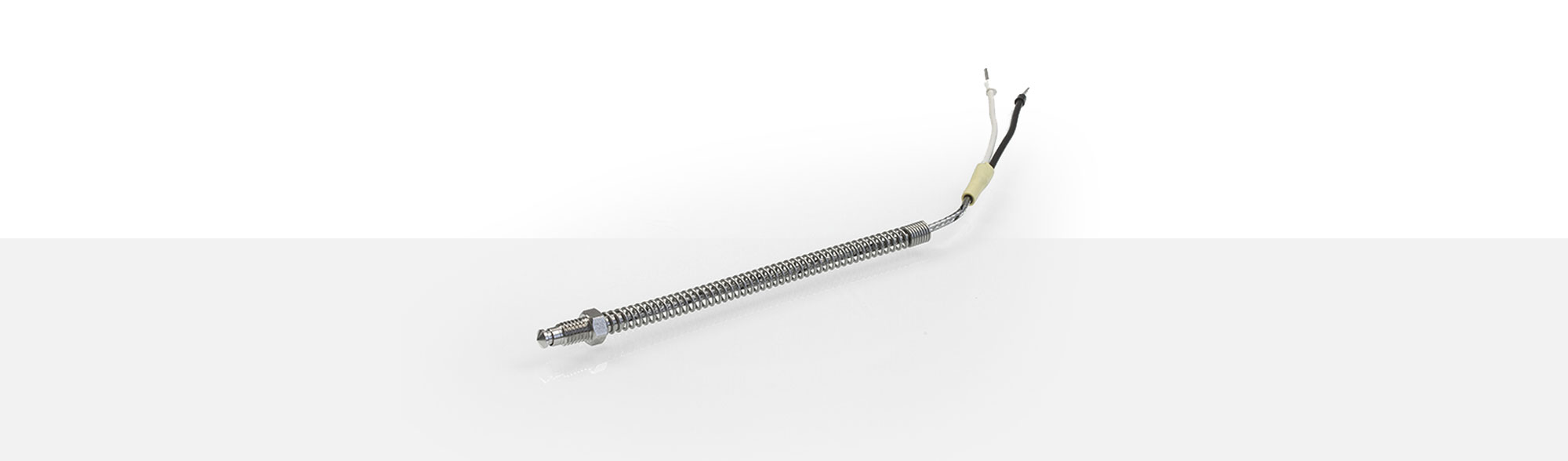

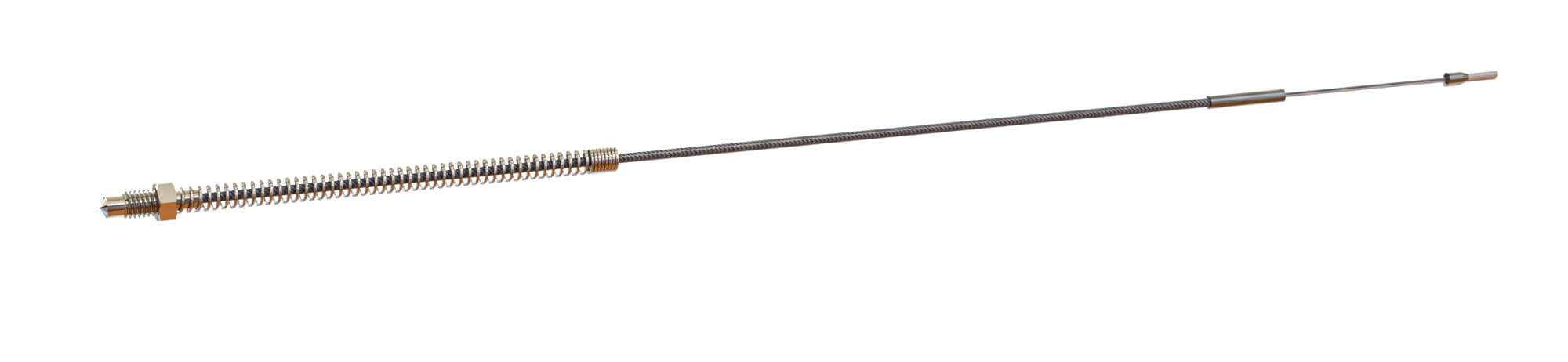

TEF 80 Screw-in Sensor

Please find following our standard thermo and compensating wires for TEF 80 thermocouples listed. Others are available on request.

Fe-CuNi type L

part# cross section temperature range outer diameter
1345033 2x0.22 mm²
+ 1.00 mm²
earth
-50 °C until +205 °C 2.80 mm ± 0.10 mm

Fe-CuNi type J

part# cross section temperature range outer diameter
1312115 2x0.095 mm² -50 °C until +400 °C ca. 2.60 x 1.80 mm
2029278 2x0.22 mm² -50 °C until +400 °C ca. 2.10 mm

NiCr-Ni type K

part# cross section temperature range outer diameter
1327235 2x0.095 mm² -50 °C until +400 °C ca. 2.60 x 1.80 mm

    Miniature - round plugs with screw connection

    2-pin plug T3200 A# 1200716
      socket T3201 A# 1200721





    2-pin plug T3260 A# 1201415



    4-pin plug T3200 A# 1103624
      socket T3301 A# 1200723

    Miniature - Thermocouple plug connectors

    J type mini plug A12.1 A# 1269361
      mini socket A13.1 A# 1269362
      ferrule 2x0,50 mm² A# 1269363





    J type mini plug A12.2 A# 1209147
      mini socket A13.2 A# 2104331
      ferrule   A# 1269363

    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard scoket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2

    Any
    questions?
