screw-in sensors

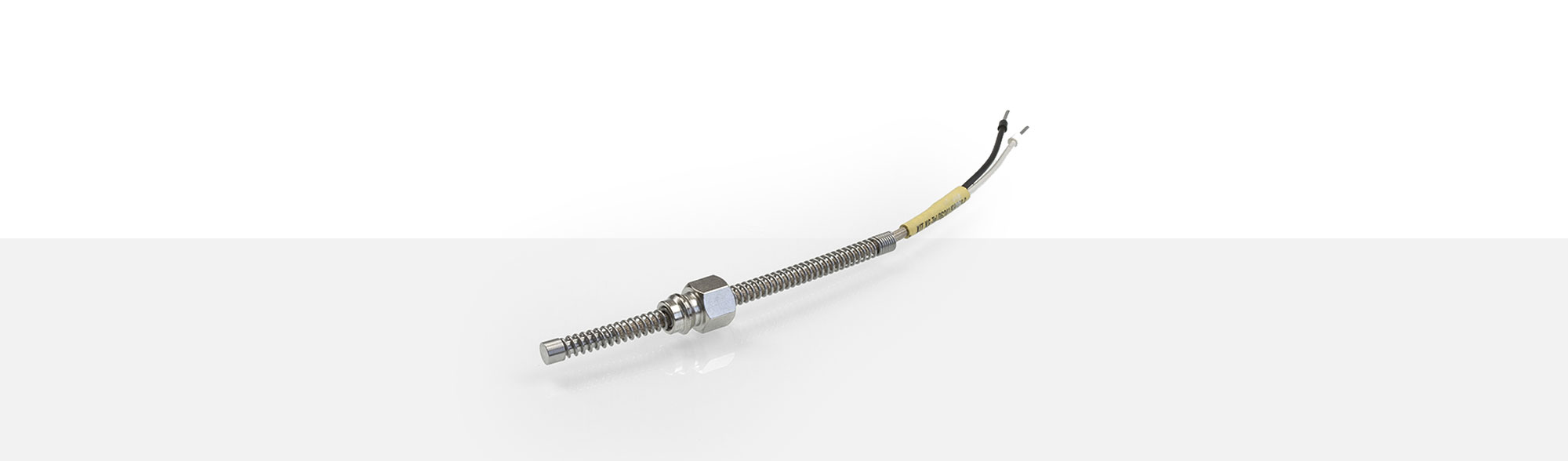

TEF 94

APPLICATION

Screw-in sensors are ideal for surface measuring. They are screwed directly into the component and are available with various thread sizes.  The plane TEF 94 sensor tip has the size of Ø 6.3 x 5 mm. The sensor has Ø 6 x 420 mm long spring and a screwed M12 thread nipple. The screw-in depth can be adjusted individually by twisting. The leads are consisting out of 2 Ø 0.5 mm thermo wires fitted in  a double fiberglass hose. The passage of sensor to leads is conical strain relieved.

  • operating temperature: up to 350 °C
  • sensor tip:
    Ø 6.3 x 5 mm – plane
  • isolated
  • as single and double element
  • M12 screw-in thread
  • up to 350°C
    operating temperature
  • Ø 6.3 x 5 mm
    sensor tip - plan
  • M12
    screw-in thread

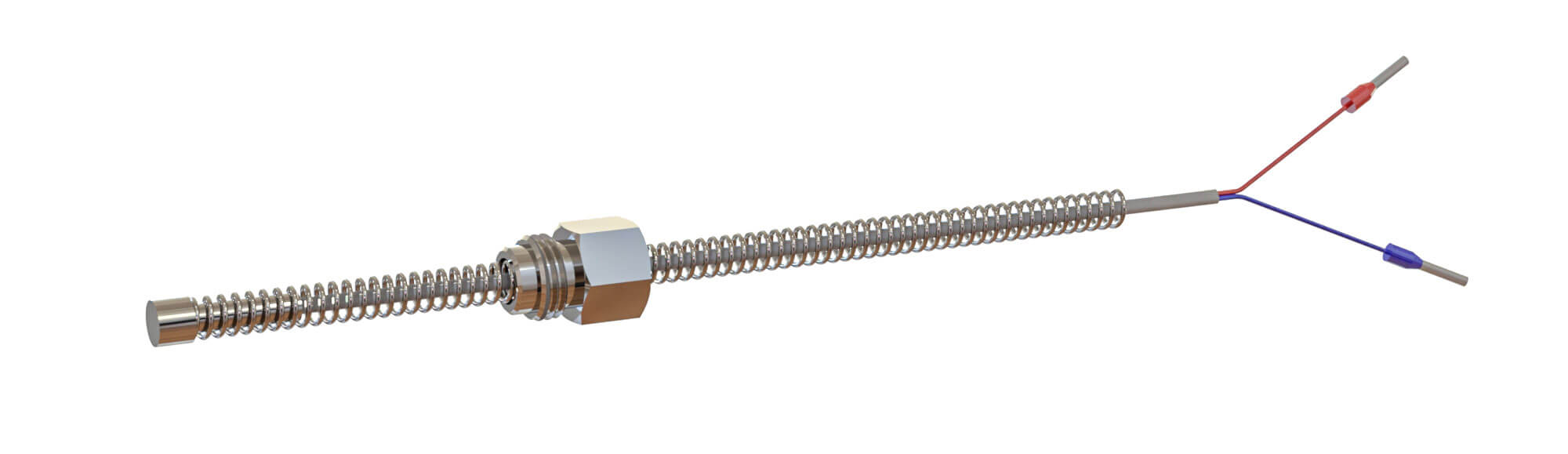

TEF 94 Screw-in Sensor

For the TEF 94 Temperature Sensor the leads are consisting of thermo wires (plus and minuns) and covered together by a double fiberglass hose.

  • e.g. for Fe-CuNi type L - part# 2113887
    consists out of:

    part# 1201367
    thermo wire Fe, type L (plus) as DIN 43710
    Ø 0.50 mm - outer diameter ca. 0.8 mm

    part# 1201368
    thermo wire CuNi, type L (minus) a DIN 43710
    Ø 0.50 mm - outer diameter ca. 0.8 mm

    part# 1200522
    Supra-therm type SSx2 - outer diameter ca. 2.0 mm

  • e.g. for Fe-CuNi type J - part# 2113892
    consists out of:

    part# 1219949
    thermo wire Fe, type J plus as (DIN IEC 60584-1)
    Ø 0.50 mm (0.20 mm²) with double fiberglass covering
    silicone impregnated, outer diameter 0.80 ± 0.15 mm

    part# 1219950
    thermo wire CuNi, type J minus as (DIN IEC 60584-1)
    Ø 0.50 mm (0.20 mm²) with double fiberglass covering
    silicone impregnated, outer diameter 0.80 ± 0.15 mm

    part# 1200522
    Supra-therm type SSx2 - outer diameter ca. 2.0 mm

  • e.g. for NiCr-Ni type K - part# 2113893
    consists out of:

    part# 1201369
    thermo wire NiCr, type K plus as (DIN IEC 60584-1)
    Ø 0.50 mm (0.20 mm²) with double fiberglass covering
    lacquer impregnated, outer diameter 0.90 ± 0.15 mm

    part# 1201370
    thermo wire Ni, type K minus as (DIN IEC 60584-1)
    Ø 0.50 mm (0.20 mm²)with double fiberglass covering
    lacquer impregnated, outer diameter 0.90 ± 0.15 mm

    part# 1200522
    Supra-therm type SSx2 - outer diameter ca. 2.0 mm

    Miniature - round plugs with screw connection

    2-pin plug T3200 A# 1200716
      socket T3201 A# 1200721





    2-pin plug T3260 A# 1201415



    4-pin plug T3200 A# 1103624
      socket T3301 A# 1200723

    Thermocouple plug connectors

    J type plug A9.1 A# 1107127
      socket A10.1 A# 1107128
      with cross section 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299





    J type plug A9.2 A# 1107127
      socket A10.2 A# 1107128
      with cross section 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299

    Miniature - Thermocouple plug connectors

    J type mini plug A12.1 A# 1269361
      mini socket A13.1 A# 1269362
      ferrule 2x0,50 mm² A# 1269363





    J type mini plug A12.2 A# 1209147
      mini socket A13.2 A# 2104331
      ferrule   A# 1269363

    Duplex - Thermocouple plug connectors

    J type duplex plug   A# 1209139
      duplex socket   A# 1209144
      strain relief 2x1,00 mm² A# 1349298
      with cross section 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299





    J type duplex plug   A# 2105264
      duplex socket   A# 1302891
      strain relief 2x1,00 mm² A# 1349298
      with cross section 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299

    Miniature Duplex - Thermocouple plug connectors

    J type duplex mini plug A# 2105183
      duplex mini socket A# 1209140
      ferrule A# 1269363





    J type duplex mini plug A# 2105186
      duplex mini scoket A# 2105188
      ferrule A# 1269363

    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard scoket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
