screw-in sensors

TEF 101

APPLICATION

Screw-in sensors are ideal for surface measuring. They are screwed directly into the component and are available with various thread sizes. The TEF 101 is a right-angle exit screw-in sensor. The sensor tip is Ø 6 x 4 mm with plane measuring surface and total length of 16 mm. The nipple has an M8x1 thread with a key size of 10 mm. A 60 mm long fiberglass hose is used as anti-kink protection.

  • operating temperature: up to 400 °C
  • sensor tip:
    Ø 6 x 4 mm – plane
  • isolated or non-isolated
  • as single and double element
  • M8x1 screw-in nipple – key size 10 mm
  • up to 400°C
    operating temperature
  • Ø 6 x 4 mm
    sensor tip- plane
  • M8 x 1
    screw-in thread

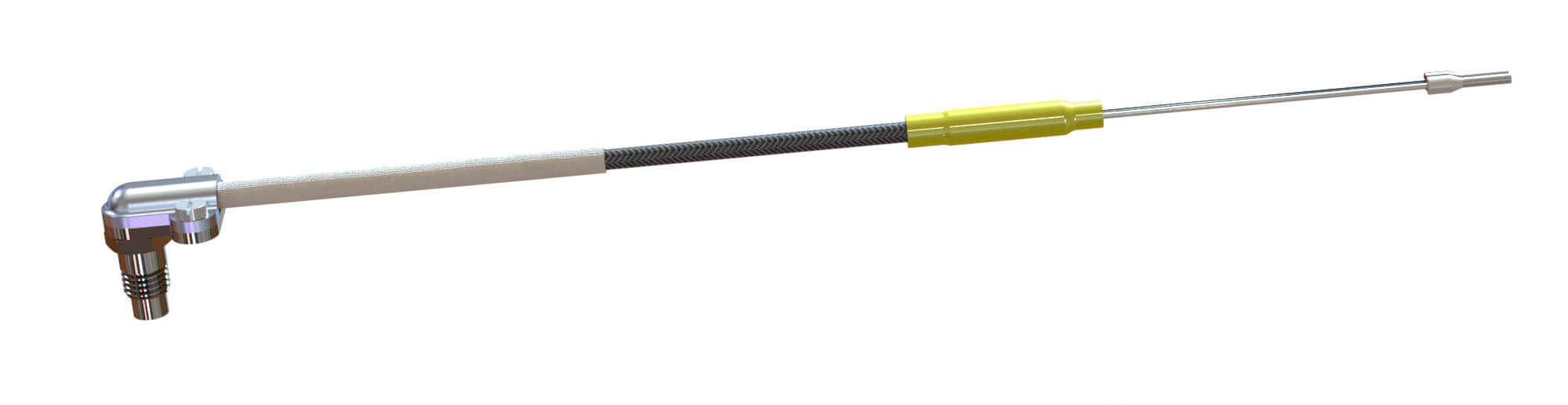

TEF 101 Screw-in Sensor

Please find following our standard thermo and compensating wires for TEF 101 thermocouples listed. Others are available on request.

Fe-CuNi type L

part# cross section temperature range outer diameter
2006830 2x0.22 mm² -100 °C until +200 °C ca. 3.20 mm
1299314 2x0.22 mm² -50 °C until +600 °C ca. 3.30 mm
1200455 2x0.22 mm² -50 °C until +400 °C ca. 3.40 mm
1338483 2x0.22 mm² -50 °C until +400 °C max. 3.50 mm
1307289 2x0.22 mm² -40 °C until +180 °C 4.00 mm ± 0.10 mm
1345033 2x0.22 mm²
+ 1.00 mm²
earth
-50 °C until +205 °C 2.80 mm ± 0.10 mm
1330509 2x0.22 mm²
+ 1.00 mm²
earth
-50 °C until +300 °C ca. 3.40 mm
1200456 4x0.22 mm² -50 °C until +400 °C max. 3.80 mm

Fe-CuNi type J

part# cross section temperature range outer diameter
2029278 2x0.22 mm² -50 °C until +400 °C ca. 2.10 mm
2102578 2x0.22 mm² -40 °C until +200 °C ca. 3.00 mm
1346358 2x0.22 mm²
+ 1.00 mm²
earth
-50 °C until +400 °C ca. 3.10 mm
1229818 4x0.22 mm² -50 °C until +400 °C ca. 3.60 mm
2051568 2x0.35 mm² -50 °C until +400 °C ca. 3.40 mm
1222528 2x0.35 mm² -50 °C until +400 °C ca. 3.60 mm
1231037 2x0.50 mm² -50 °C until +400 °C ca. 3.90 mm

NiCr-Ni type K

part# cross section temperature range outer diameter
1320956 2x0.22 mm² until +180 °C ca. 3.90 mm
1298584 4x0.22 mm² -50 °C until +400 °C max. 4.00 mm
1200471 2x0.50 mm² -50 °C until +400 °C ca. 3.50 mm

    Miniature - round plugs with screw connection

    2-pin plug T3200 A# 1200716
      socket T3201 A# 1200721





    2-pin plug T3260 A# 1201415



    4-pin plug T3200 A# 1103624
      socket T3301 A# 1200723

    Round plugs with screw connection

    3-pin plug T3079 A# 1103631
      socket T3080 A# 1200749





    5-pin plug T3260 A# 1103635
      socket T3084 A# 1200750



    3-pin plug T3008 A# 1103627





    5-pin plug T3012 A# 1119173



    Thermocouple plug connectors

    J type plug A9.1 A# 1107127
      socket A10.1 A# 1107128
      with cross section 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299





    J type plug A9.2 A# 1107127
      socket A10.2 A# 1107128
      with cross section 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299

    Duplex - Thermocouple plug connectors

    J type duplex plug   A# 1209139
      duplex socket   A# 1209144
      strain relief 2x1,00 mm² A# 1349298
      with cross section 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299





    J type duplex plug   A# 2105264
      duplex socket   A# 1302891
      strain relief 2x1,00 mm² A# 1349298
      with cross section 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299

    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard scoket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
