screw-in sensors

TEF 84

APPLICATIONS

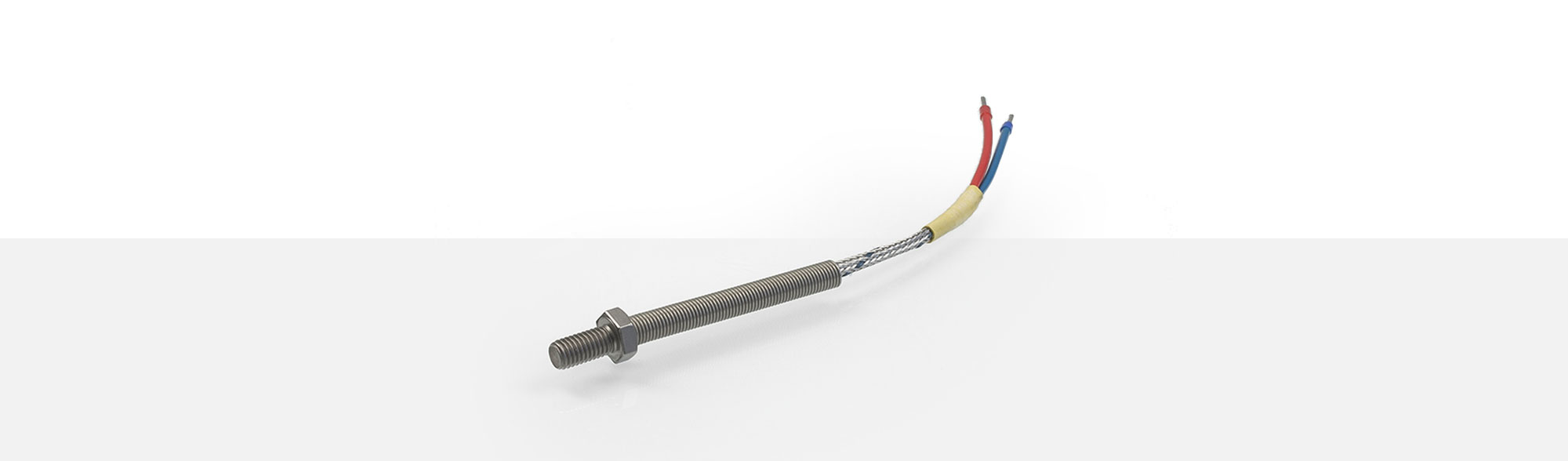

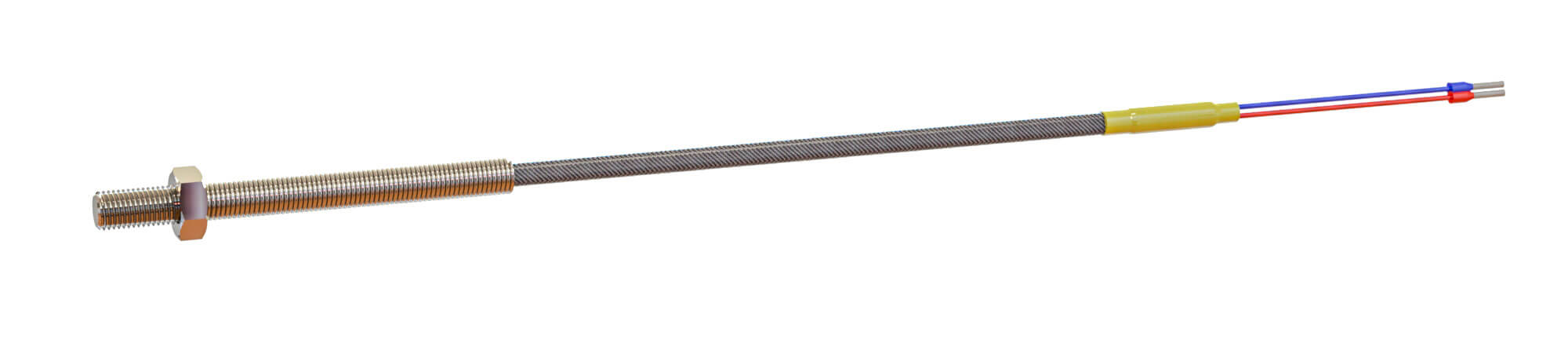

Screw-in sensors are ideal for surface measuring. They are screwed directly into the component and are available with various thread sizes. The TEF 84 is out of one stainless steel M8 x 16 machine screw with plane measuring surface and a key size of 13 mm. The passage of sensor to leads is conical strain relieved. An Ø8 x 65 mm spring is used as anti-kink protection.

  • operating temperature: up to 400 °C
  • machine screw:
    M8 x 16 mm – plane – key size 13 mm
  • isolated or non-isolated
  • as single and double element
  • Ø 8 x 65 mm anti-kink protection spring
  • up to 400°C
    operating temperature
  • M8 x 16 mm
    machine screw
  • Ø 8 x 65 mm
    anti-kink protection spring

TEF 84 Screw-in Sensor

Please find following our standard thermo and compensating wires for TEF 84 thermocouples listed. Others are available on request.

Fe-CuNi type L

part# cross section temperature range outer diameter
1200456 4x0.22 mm² -50 °C up to +400 °C 3.80 mm max.
1200464 2x1.00 mm² -50 °C up to +400 °C approx. 4.50 mm
1200465 2x1.00 mm² -50 °C up to +400 °C approx. 4.50 mm
1256523 2x1.00 mm² -50°C up to +500 °C approx. 4.50 x 2.60 mm
2239027 2x1.00 mm² -50°C up to +500 °C approx. 5,00 x 3,20 mm

Fe-CuNi type J

part# cross section temperature range outer diameter
1346358 2x0.22 mm²
+ 1.00 mm²
earth wire
-50 °C up to +400 °C approx. 3.10 mm
1229818 4x0.22 mm² -50 °C up to +400 °C approx. 3.60 mm
1222528 2x0.35 mm² -50 °C up to +400 °C approx. 3.60 mm
1231037 2x0.50 mm² -50 °C up to +400 °C approx. 3.90 mm
1201349 2x1.00 mm² -50 °C up to +400 °C 4.60 mm max.
2239028 2x0,35 mm² -50 °C up to +650 °C approx. 3,40 mm



NiCr-Ni type K

part# cross section temperature range outer diameter
1298584 4x0.22 mm² -50 °C up to +400 °C 4.00 mm max.
1200471 2x0.50 mm² -50 °C up to +400 °C approx. 3.50 mm
1200473 2x1.00 mm² -50 °C up to +400 °C approx. 4.50 mm

    Miniature - round plugs with screw connection

    2-pin plug T3200 part# 1200716
      socket T3201 part# 1200721





    3-pin plug T3260 part# 1201415
      socket T3261 part# 1200722



    4-pin plug T3200 part# 1103624
      socket T3301 part# 1200723

    Round plugs with screw connection

    3-pin plug T3079 part# 1103631
      socket T3080 part# 1200749





    5-pin plug T3260 part# 1103635
      socket T3084 part# 1200750



    Round plugs with bayonet connection

    3-pin plug T3008 part# 1103627





    5-pin plug T3012 part# 1119173



    Miniature - Thermocouple plug connectors

    J type mini plug A12.1 part# 1269361
      mini socket A13.1 part# 1269362
      ferrule 2x0,50 mm² part# 1269363





    K type mini plug A12.2 part# 1209147
      mini socket A13.2 part# 2104331
      ferrule   part# 1269363

    Duplex - Thermocouple plug connectors

    J type duplex plug   part# 1209139
      duplex socket   part# 1209144
      strain relief 2x1,00 mm² part# 1349298
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299





    K type duplex plug   part# 2105264
      duplex socket   part# 1302891
      strain relief 2x1,00 mm² part# 1349298
      with cross section 2x0,50 mm² part# 1349300
        2x0,22 mm² part# 1349299

    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard socket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2
