screw-in sensors

TEF 85

APPLICATION

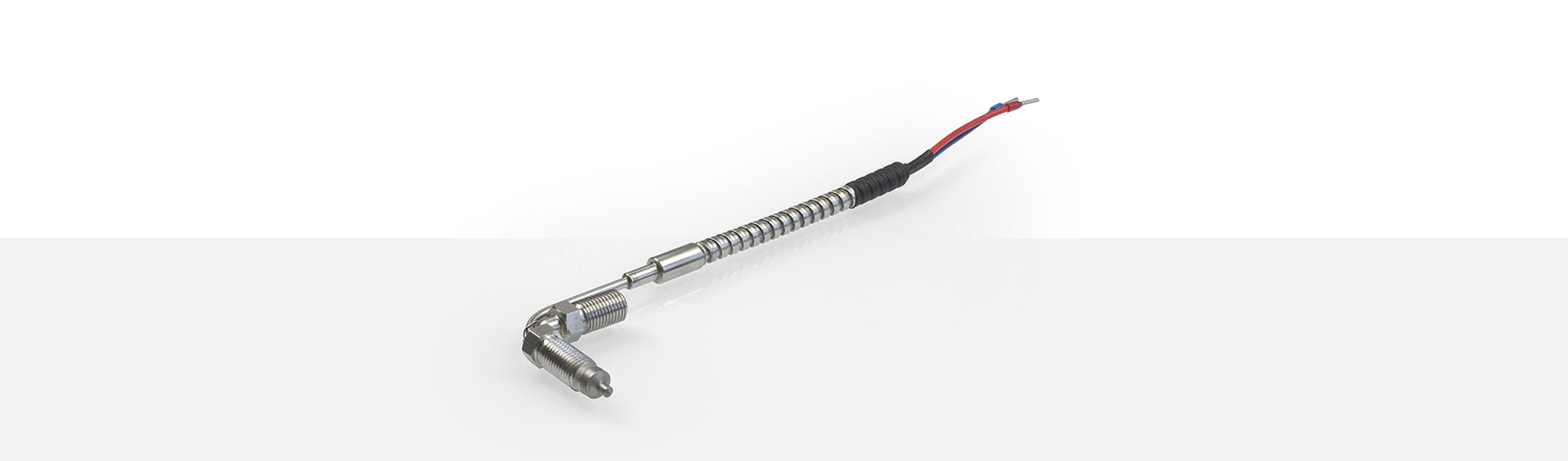

Screw-in sensors are ideal for surface measuring. They are screwed directly into the component and are available with various thread sizes. Typically there is an adaptor with the same thread belonging to the TEF 85. The leads are with a steel or stainless steel spiral hose protected.

  • operating temperature: up to 400 °C
  • sensor tip:
    Ø 3 x 4 mm – 116°
  • isolated or non-isolated
  • UNF 3/8” – 24 screw-in thread
  • UNF 3/8” – 24 adaptor
  • up to 400°C
    operating temperature
  • Ø 3 x 4 mm
    sensor tip- 116°
  • UNF 3/8"
    screw-in thread

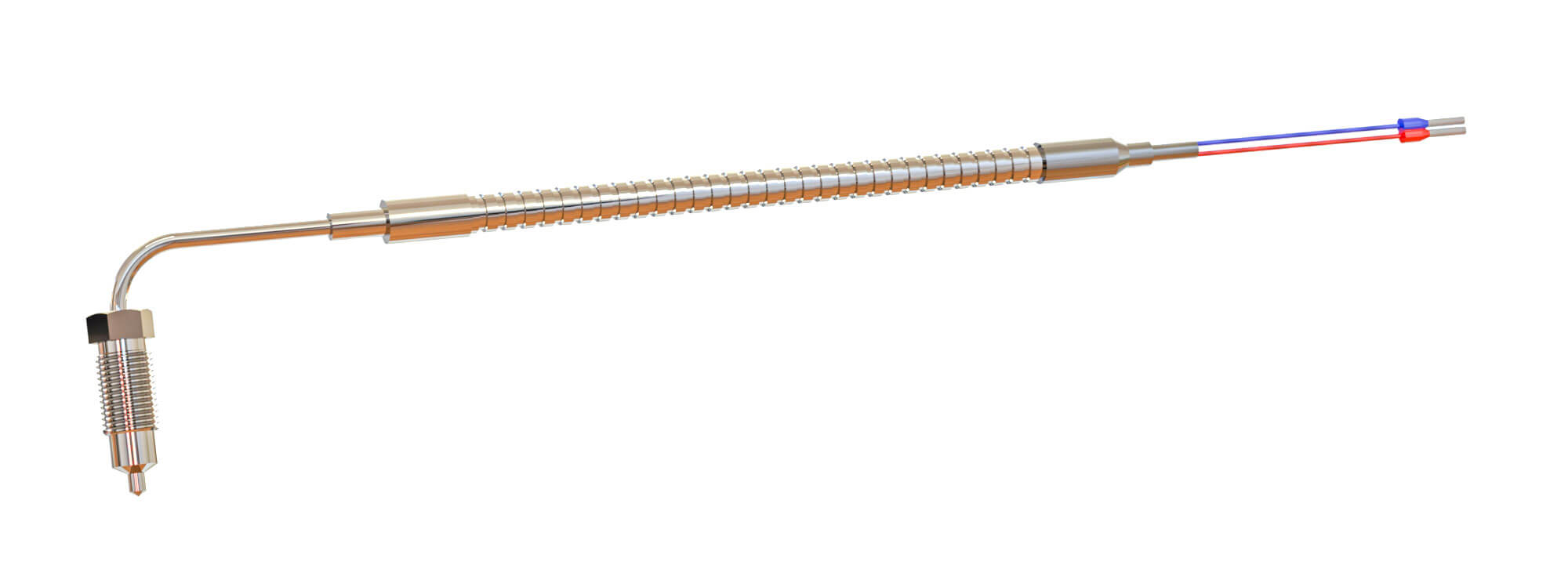

TEF 85 Screw-in Sensor

Please find following our standard thermo and compensating wires for TEF 85 thermocouples listed. Others are available on request.

Fe-CuNi type L

part# cross section temperature range outer diameter
1299314 2x0.22 mm² -50 °C until +600 °C ca. 3.30 mm
1200455 2x0.22 mm² -50 °C until +400 °C ca. 3.40 mm
1338483 2x0.22 mm² -50 °C until +400 °C 3.50 mm max.
1307289 2x0.22 mm² -40 °C until +180 °C 4.00 mm ± 0.10 mm
1330509 2x0.22 mm²
+ 1.00 mm²
earth
-50 °C until +300 °C ca. 3.40 mm

Fe-CuNi type J

part# cross section temperature range outer diameter
2102578 2x0.22 mm² -40 °C until +200 °C ca. 3.00 mm
2100238 2x0.22 mm² -25 °C until +200 °C 3.00 mm
1346358 2x0.22 mm²
+ 1.00 mm²
earth
-50 °C until +400 °C ca. 3.10 mm
2051568 2x0.35 mm² -50 °C until +400 °C ca. 3.40 mm
1222528 2x0.35 mm² -50 °C until +400 °C ca. 3.60 mm
1231037 2x0.50 mm² -50 °C until +400 °C ca. 3.90 mm

NiCr-Ni type K

part# cross section temperature range outer diameter
1320956 2x0.22 mm² until +180 °C ca. 3.90 mm
1200471 2x0.50 mm² -50 °C until +400 °C ca. 3.50 mm

    Miniature - round plugs with screw connection

    2-pin plug T3200 A# 1200716
      socket T3201 A# 1200721





    2-pin plug T3260 A# 1201415



    4-pin plug T3200 A# 1103624
      socket T3301 A# 1200723

    Round plugs with screw connection

    3-pin plug T3079 A# 1103631
      socket T3080 A# 1200749





    5-pin plug T3260 A# 1103635
      socket T3084 A# 1200750



    3-pin plug T3008 A# 1103627





    5-pin plug T3012 A# 1119173



    Thermocouple plug connectors

    J type plug A9.1 A# 1107127
      socket A10.1 A# 1107128
      with cross section 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299





    J type plug A9.2 A# 1107127
      socket A10.2 A# 1107128
      with cross section 2x0,50 mm² A# 1349300
        2x0,22 mm² A# 1349299

    Miniature plug connectors

    Lemo cable Ø max. in mm
      sizes 0S 1S 2S 3S
      standard scoket 3,7 4,2 4,2 4,2
      fitting socket
      standard plug 3,7 4,2 4,2 4,2

    Any
